Yard Man 12A-A1JY701 (2012) Self-Propelled Walk-Behind Mower

Model: 12A-A1JY701 (2012)

Back To Assemblies

Save Part Not Listed?
product name

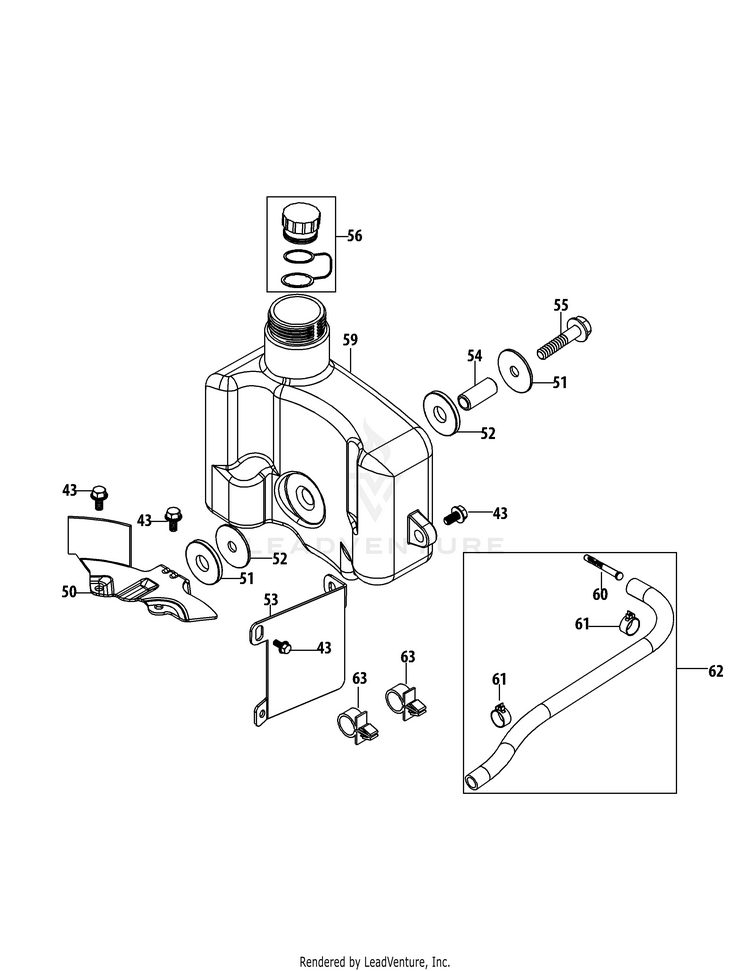

5P65MU Fuel Tank & Mounting

...
...
43
Bolt M6X14 Multi-Purpose MTD-710-04916
...
50
Fuel Tank Bottom Bracket MTD-951-11542
...
51
FUEL TANK WASHER MTD-736-04456
...
52
Rubber Bushing MTD-951-10335
...
53
Fuel Tank / Label Bracket MTD-951-11748
...
54
Fuel Tank Bushing MTD-750-05322
...
55
Bolt M8X50 Fuel Tank MTD-710-04922
...
56
Fuel Cap Assembly MTD-951-12738
...
59
Fuel Tank Assembly MTD-951-12864
...
60
FUEL FILTER MTD-951-12296A
...
61
CARBURETOR HOSE CLAMP MTD-951-11700A
...
62
Fuel Hose MTD-951-10363
...
63
FUEL LINE SUPPORT CLAMP MTD-723-04071A
