Yard Man 12A-529N062 (2001) Self-Propelled Walk-Behind Mower

Model: 12A-529N062 (2001)

Save Part Not Listed?
product name

Engine Shrouds

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
710-1256
(Screw) Hardware: MTD-710-1256
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
(Screw) Hardware: MTD-710-1256
...
731-1587A
SHRD-ENG-QUATRO-52 MTD-731-1587A
...
731-1603A
ENGINE SHROUD - YELLOW MTD-731-1603A
...
731-1610A
ENGINE SHROUD PEWT MTD-731-1610A
...
731-1620A
ENGINE SHROUD GRAY MTD-731-1620A
...
710-1184
PAN SCREW 10-32 x 2.00 MTD-710-1184
...
731-1561
ENGINE SHROUD BLK TEC MTD-731-1561
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694
SHRD:ENG:BLK QUAN STY 3 MTD-731-1694
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
731-1934
ENGINE SHROUD MTD-731-1934
...
710-1258
SCREW THUMB ADJ 5/16-18 x .63 MTD-710-1258
...
7510143208
SHROUD ENG MTD-7510143208
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823
...
751B281451
SHROUD MTD-751B281451
...
710-1256
Hardware: MTD-710-1256
...
751B281476
ENGINE SHROUD MTD-751B281476
...
751B281777
ENGINE SHROUD MTD-751B281476
...
710-1237
Hardware: MTD-710-1237
...
7511681311
ENGINE SHROUD MTD-7511681311
...
7511681911
Red MTD-7511681911
...
7511682011
SHROUD-ENG MTD-7511682011

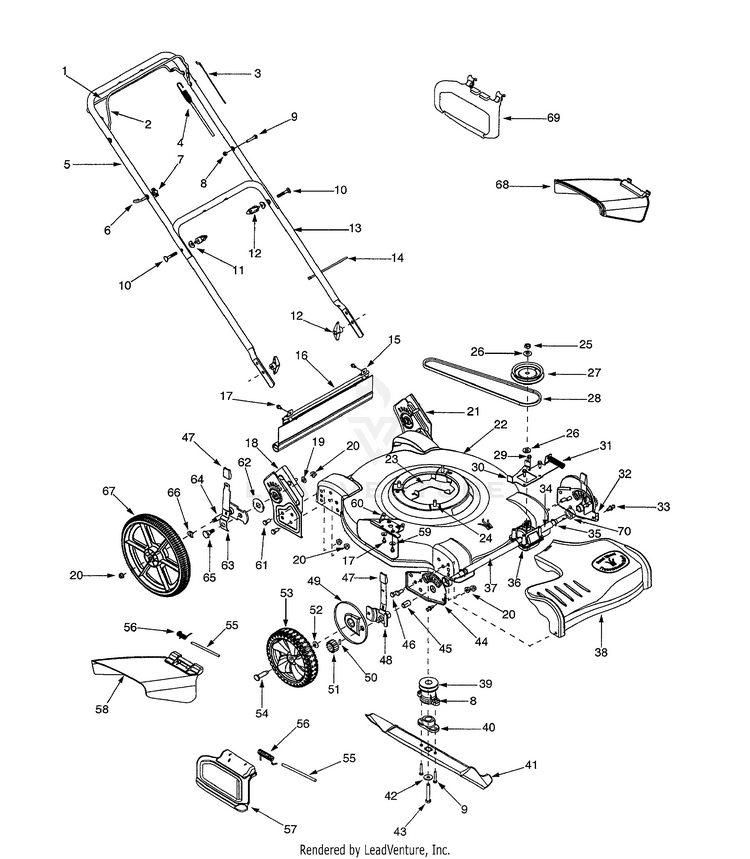

General Assembly

...
...
1
Drive Control Handle MTD-747-1214
...
2
Blade Control Handle MTD-747-1161A
...
3
Control Cable MTD-946-1113A
...
3
Cable Control MTD-946-1132
...
3
Control Cable MTD-946-1114
...
4
CONTROL CABLE 55.50" 5/16 dia. shank ball end MTD-946-1092A
...
4
Drive Control Cable Z fitting end, die cast MTD-946-04204
...
5
Upper Handle MTD-749-1092A
...
6
Eye Bolt MTD-710-1205
...
7
Wing Nut 1/4-20 MTD-720-0279
...
8
Hex Lock Nut 1/4-20 MTD-712-0324
...
9
Hex Cap Screw 1/4-20 x 1.5 MTD-710-0606
...
10
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
11
Shoulder Washer .320 ID x .93 OD MTD-736-0451
...
12
Wing Nut MTD-720-0284
...
13
Lower Handle MTD-749-04037
...
14
Cable Tie MTD-725-0157
...
15
Hinge Clip MTD-782-9065
...
16
Trail Shield MTD-731-2537
...
17
Hex Screw 1/4-14 x .625 MTD-710-0896
...
18
HANDLE BRACKET (RH) MTD-982-3062A
...
19
Flat Washer .406 ID x .812 OD MTD-736-3050
...
20
Flange Lock Nut 3/8-16 MTD-912-0431
...
21
HANDLE BRACKET ASSEMBLY (LH) MTD-682-3063A
...
22
22" DECK ASSEMBLY MTD-687-02046
...
23
ENGINE BELT BRACKET MTD-782-9063B-0637
...
24
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
25
Hex Jam Nut 7/16-20 MTD-912-0240
...
26
Bell Washer .45 ID x 1.00 OD MTD-736-0407
...
27
INPUT PULLEY 3.44 X MTD-756-1167
...
28
V-BELT 3L x 38.3" MTD-954-0483
...
29
SCREW 1/4-20 x .750 MTD-710-1276
...
30
TRANSMISSION BRACKET MTD-782-9062
...
31
Compression Spring MTD-732-0992
...
32
HEIGHT ADJUSTMENT PLATE MTD-782-0585A-0637
...
33
Rivet MTD-728-0199
...
34
SLEEVE SPACER MTD-750-1209
...
35
Retainer Ring MTD-716-0198
...
36
TRANSMISSION MTD-918-0607A
...
37
SLEEVE SPACER MTD-750-1210
...
38
Transmission Cover MTD-731-0073
...
39
DRIVE PULLEY MTD-756-1163
...
40
Blade Adapter MTD-748-0426
...
41
Standard Blade 22-inch MTD-942-0642A
...
41
Blade MTD-742-0742A-0637
...
42
Bell Washer .396 ID x 1.140 OD MTD-736-0452
...
43
Hex Cap Screw 3/8-24 x 1.5 MTD-710-1044
...
44
HEIGHT ADJUSTMENT PLATE MTD-782-0584-0637
...
45
SLEEVE BEARING .504 X.627 X1.0 MTD-741-0710
...
46
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
Spring Lever Assembly - LH* (FWD) *In This Application MTD-682-0544
...
48
LEVER ASSEMBLY (LH)/RWD - (RH)/FWD *In This Application MTD-682-0545
...
49
Wheel Cover MTD-731-04643
...
50
Dowel Pin MTD-915-0221
...
51
Spur Gear 14T - LH MTD-717-1761
...
51
Spur Gear 14T- RH MTD-717-1762
...
52
Bell Washer .401 ID x .870 OD MTD-736-0105
...
53
Wheel MTD-634-0190A
...
54
Shoulder Screw 3/8 MTD-738-1168
...
55
Hinge Pin MTD-747-0710A
...
56
Torsion Spring MTD-732-1014C
...
57
Mulching Baffle (If Equipped) MTD-631-0098
...
58
CHUTE DEFLECTOR MTD-931-1034B
...
59
SPRING WASHER BELL MTD-736-0270
...
60
CHUTE DEFLECTOR MTD-931-1034B
...
61
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
62
THRUST BEARING MTD-741-0717
...
63
SPRING LEVER MTD-732-0984B
...
64
PIVOT ARM ASSEMBLY 22" MTD-682-0093
...
65
Shoulder Screw 3/8 - 16 x.442 MTD-738-1127B
...
66
Spring Washer MTD-736-0182
...
67
WHEEL ASSEMBLY 14X1.8 MTD-734-04030
...
68
DISCHARGE CHUTE MTD-731-2230
...
69
MULCH PLUG MTD-731-1386D
...
70
Bearing Spacer MTD-748-0390
...
xx
Snap Ring .500 Not shown MTD-716-0865
...
xx
Washer Spacer .401 ID x .870 OD Not shown MTD-736-0105
...
xx
Hex Lock Nut 3/8-16 Not shown MTD-712-0130

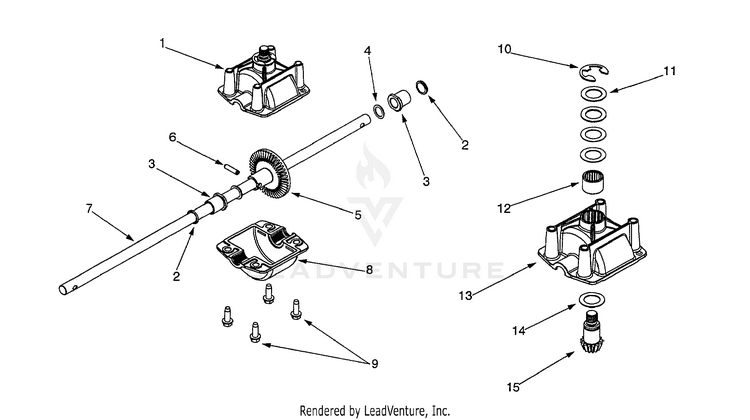

Transmission Assembly

...
...
1
UPPER HOUSING ASSEMBLY MTD-618-0392
...
2
Oil Seal MTD-921-0329
...
3
Bearing MTD-941-0673
...
4
Flat Washer .504 ID x .70 OD MTD-936-0520
...
xx
FLAT WASHER MTD-736-0711
...
xx
FLAT WASHER MTD-736-0712
...
xx
FLAT WASHER MTD-736-0713
...
5
BEVEL GEAR 44T MTD-717-1596
...
6
SPRING PIN MTD-715-0139
...
7
OUTPUT SHAFT MTD-711-1595
...
8
LOWER HOUSING MTD-719-0538
...
9
SCREW 1/4-20 x .750 MTD-710-1276
...
10
E-Ring .750 MTD-716-0231
...
11
FLAT WASHER MTD-936-0336
...
xx
Flat Washer .625 ID x 1.0 OD MTD-736-0337
...
xx
FLAT WASHER MTD-936-0349
...
xx
Flat Washer .632 ID x 1.0 OD x .035 MTD-736-0494
...
xx
THRUST WASHER MTD-736-0495
...
12
NEEDLE BEARING .625X .813X .625 MTD-741-0735
...
13
UPPER HOUSING MTD-719-0537
...
14
FLAT WASHER MTD-936-0336
...
xx
Flat Washer .632 ID x 1.0 OD x .035 MTD-736-0494
...
15
INPUT SHAFT MTD-711-1390
