Yard Man 12A-26MY255 (2008) Self-Propelled Walk-Behind Mower

Model: 12A-26MY255 (2008)

Back To Assemblies

Save Part Not Listed?
product name

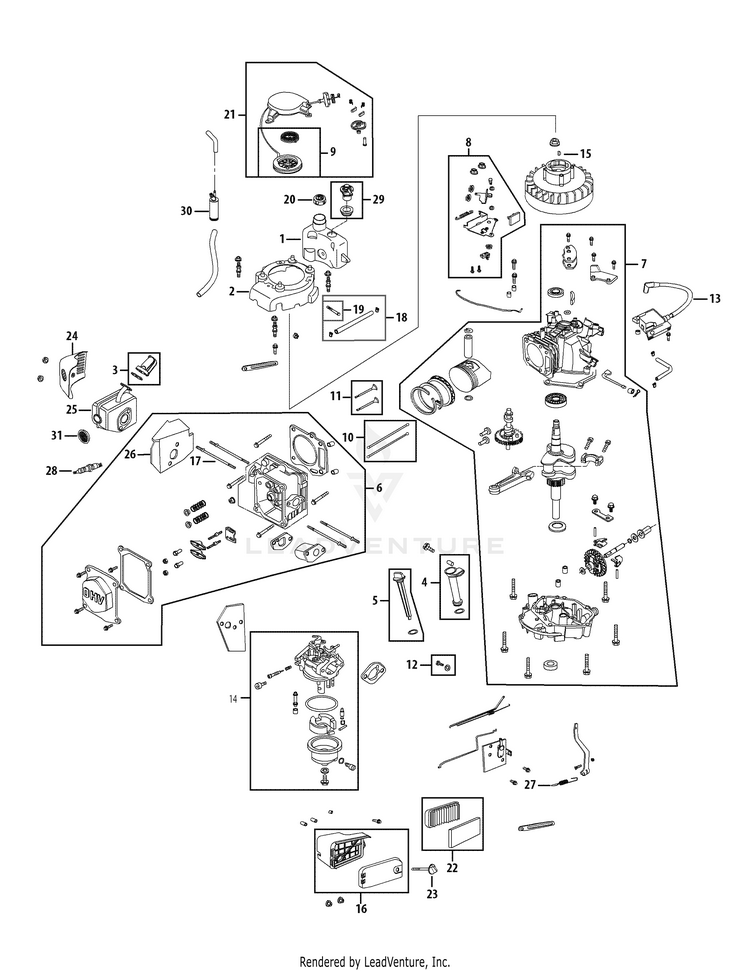

Engine Assembly

...
...
1
FUEL TANK MTD-951-10438
...
2
FLYWHEEL SHROUD MTD-951-10841
...
3
REED VALVE ASSEMBLY MTD-951-10840
...
4
Oil Filler Tube Assembly MTD-951-10334
...
5
Dipstick Assembly MTD-951-10333
...
6
CYLINDER HEAD ASSEMBLY MTD-951-10845
...
7
SHORTBLOCK ASSEMBLY MTD-951-11789A
...
8
Stop Switch and Brake Ass'y MTD-951-10320A
...
9
Recoil Spring & Pulley MTD-951-10319
...
10
Push Rod MTD-951-10314
...
11
Valve Kit MTD-951-10313
...
12
Oil Drain Plug & Washer Assembly MTD-951-10370
...
13
Ignition Coil Assembly MTD-951-10367
...
14
CARBURETOR ASSEMBLY MTD-951-10838
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assembly Complete MTD-951-10876
...
17
Carb Stud M6x92 MTD-710-05093
...
18
Fuel Hose Inc. hoses, clamps & filter MTD-951-10363
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap MTD-951-10440
...
21
Recoil Starter MTD-951-10299A
...
22
Air Filter MTD-951-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
MUFFLER GUARD MTD-951-10404
...
25
MUFFLER MTD-951-10843
...
26
Muffler Gasket /Heat Shield MTD-951-10402
...
27
Governor Spring MTD-951-10387
...
28
Spark Plug MTD-951-10292A
...
28
GENUINE FACTORY PARTS® Spark Plug 751-10292 Snow, Ride MTD-490-250-F012
...
29
ROLL OVER VALVE ASSEMBLY MTD-951-10869
...
30
Carbon Canister MTD-951-14126
...
31
SPARK ARRESTOR MTD-951-10351A
...
xx
COMPLETE ENGINE 173cc Not Shown MTD-952Z5P70MU
...
xx
CYLINDER HEAD SERVICE KIT Not Shown MTD-951-10846A
...
xx
CARBURETOR KIT MAJOR Not Shown MTD-751-10839
...
xx
GASKET KIT (COMPLETE) Not Shown MTD-951-10409A
...
xx
GASKET KIT (EXTERNAL) Not Shown MTD-951-10410A
Schematic Image Zoomed
