Yard Man 11AS106D701 (2003) Push Walk-Behind Mower

Model: 11AS106D701 (2003)

Back To Assemblies

Save Part Not Listed?
product name

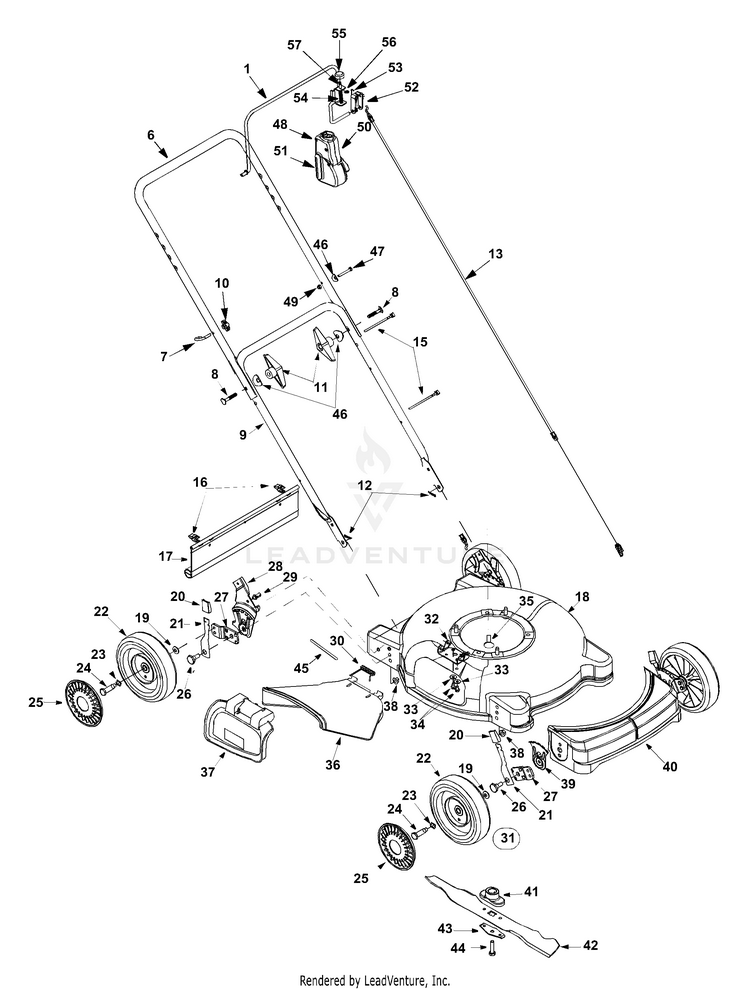

General Assembly

...
...
1
BAIL ASSEMBLY MTD-647-0070
...
xx
BAIL COVER (Not shown) MTD-731-2623
...
6
UPPER HANDLE MTD-749-1406A-0637
...
7
Rope Guide MTD-710-1205
...
8
Carriage Bolt MTD-710-1174
...
9
Lower Handle MTD-749-0928A-0637
...
10
Wing Nut MTD-720-0279
...
11
Hand Knob MTD-720-0284
...
12
Hairpin Clip MTD-714-0104
...
13
CONTROL CABLE 56.75" MTD-746-1142
...
15
Cable Tie MTD-725-0157
...
16
HINGE CLIP MTD-17098P
...
17
Rear Flap MTD-731-0872B
...
18
20" DECK ASSEMBLY MTD-682-0139
...
19
Bell Washer MTD-736-0105
...
20
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
21
Front Spring Lever MTD-94832
...
22
Wheels - Front MTD-753-08093
...
23
Wave Washer.510 ID x.750 OD MTD-936-0504
...
24
Axle Bolt MTD-738-0102
...
25
HUBCAP-SPOKE YELLOW MTD-731-1426B
...
26
Shoulder Bolt MTD-738-0507B
...
27
Pivot Bar MTD-15262B
...
28
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02106A
...
xx
BRACKET ASSEMBLY Not shown in Illustration MTD-987-02107A
...
29
Stake Bolt MTD-738-0585
...
30
Torsion Spring MTD-932-0731
...
31
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) Not shown in Illustration MTD-753-06761
...
32
MOUNTING BRACKET MTD-782-7006
...
33
SPRING WASHER BELL MTD-736-0270
...
34
Hex Washer Hd. TT Screw MTD-710-0599
...
35
TT Sems Screw MTD-710-0654A
...
36
Side Discharge Deflector MTD-731-1409B
...
37
MULCH PLUG ASSEMBLY MTD-682-7002
...
38
Flange Lock Nut 3/8-16 MTD-912-0431
...
39
Height Adjustment Plate MTD-787-01290A
...
40
COVER DECK FRONT MTD-731-1933
...
41
Blade Adapter MTD-748-0376E
...
xx
Blade Adapter Kit (Incl. Ref. 13-15) (for service) MTD-753-06315
...
42
20" Mulching Blade MTD-742-0740-0637
...
43
BLADE BELL SUPPORT MTD-736-0524B-1
...
44
Hex Bolt MTD-710-1044
...
45
Hinge Pin MTD-747-0710A
...
46
Saddle Washer MTD-736-0451
...
47
Hex Hd. Cap Screw MTD-710-0501
...
48
Hi-Low Scr. 1/4-20 MTD-710-1256
...
49
Hex Lock Nut 1/4-20 Gr. 8 MTD-712-0324
...
50
CONTROL COVER (LH) MTD-731-2532
...
51
CONTROL COVER (RH) MTD-731-2533
...
52
LEVER (ZINC) MTD-782-0156
...
53
FLAP-RR MTD-731-1172
...
54
COMPRESSION SPRING MTD-732-1171
...
55
BUTTON MTD-720-0428
...
56
RETAINING RING MTD-716-0209
...
57
PIN MTD-715-0168
