Yard Machines Y780 41AD78BG900 Gas String Trimmer

Model: Y780 41AD78BG900 41AD78BG900 Y780

Back To Assemblies

Save Part Not Listed?
product name

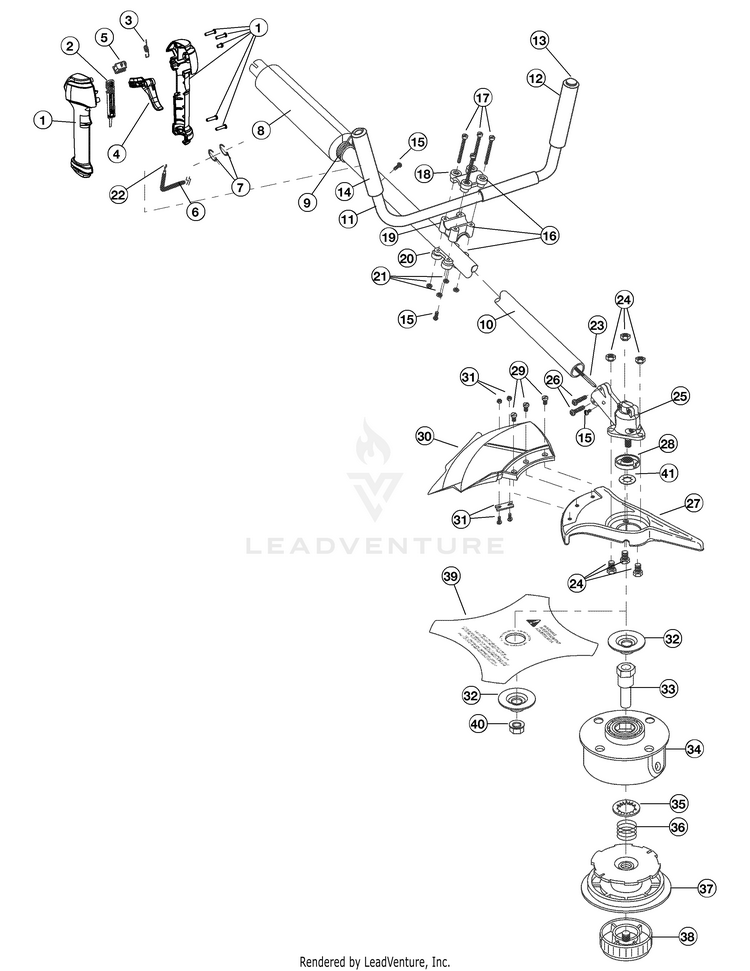

Boom and Trimmer

...
...
1
THROTTLE GRIP ASSEMBLY MTD-753-05175
...
2
LOCK OUT LEVER MTD-731-04971B-10
...
3
TRIGGER SPRING MTD-753-05007
...
4
Throttle Trigger MTD-731-04970B-10
...
5
Switch Assembly MTD-791-182405
...
6
WIRE COVER:12" MTD-753-04098
...
7
CLAMP, CABLE NATUR MTD-791-160428
...
8
GRIP, FOAM W/VELCR MTD-791-180858
...
9
SHOULDER STRAP CLAMP MTD-4301A
...
9
Harness Clip MTD-791-610327
...
10
ASSEMBLY, DRIVE SHAFT H MTD-791-181808
...
11
HANDLE ASSEMBLY MTD-753-05177
...
12
GRIP-HANDLE MTD-791-612831
...
13
Plug MTD-791-612021
...
14
Adapter MTD-792-10029
...
15
Anti-Rotation Screw MTD-791-182519
...
16
Handle Bracket Assembly (includes 15 & 17-21) MTD-791-683295
...
17
Screw MTD-791-181811
...
18
Upper Handle Clamp MTD-791-181812
...
19
Middle Handle Clamp MTD-791-181813
...
20
Lower Handle Clamp MTD-791-181814
...
21
Nut MTD-791-181815
...
22
Throttle Cable MTD-753-05179
...
23
Flexible Drive Shaft MTD-791-181817
...
24
Shield Mount Screw Assembly MTD-791-182200
...
25
2 Piece Gearbox Assembly (includes 15, 26, 28 & 41) MTD-791-182193
...
26
SCREW #10-24X11/16 T-25 MTD-791-182195
...
27
Blade Shield/Shield Mount MTD-791-147492
...
28
Blade Driver MTD-791-182196
...
29
Shield Mounting Screw MTD-791-683304
...
30
GUARD AND BLADE ASSEMBLY MTD-791-683299
...
31
Blade Assembly MTD-791-682061
...
32
Retaining Washer MTD-791-147490
...
33
Spool Shaft MTD-791-612483
...
34
SPOOL ASM-OUTER 3000 NLAUD MTD-791-683301
...
35
RETAINER MTD-1772
...
36
Spring MTD-791-610636B
...
37
Inner Reel MTD-791-147495
...
38
KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B
...
39
4-Tooth Blade MTD-791-145873B
...
40
Nut MTD-712-04105
...
41
Palnut MTD-753-04348
...
xx
Shoulder Harness (not shown) MTD-791-682075B
...
xx
Blade Retaining Kit (includes 32 & 40) (not shown) MTD-791-180014B
...
xx
Locking Rod Tool (not shown) MTD-791-613226
