Yard Machines Y4700EC 41BD470C800 Gas String Trimmer

Model: Y4700EC 41BD470C800

Back To Assemblies

Save Part Not Listed?
product name

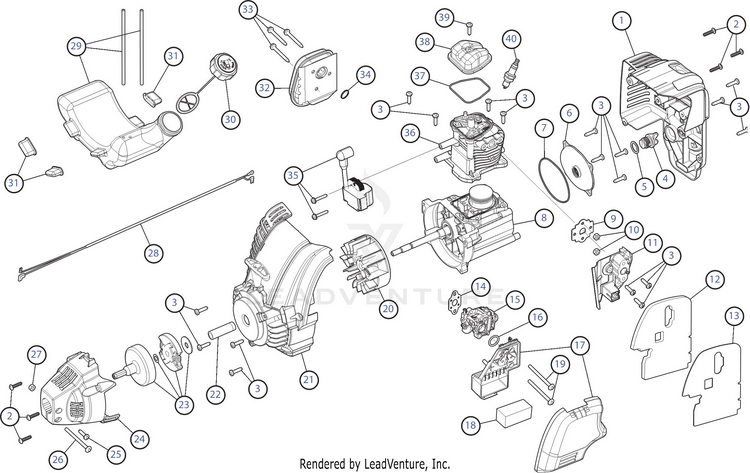

Engine Assembly

...
...
1
Engine Cover Assembly (Incl. 2 & 3) MTD-753-06134
...
2
Cover Screw MTD-710-04194
...
3
SCREW M5X0.8 MTD-710-04604A
...
4
Oil Plug (Incl. 5) MTD-753-05408
...
5
Oil Plug O-Ring MTD-791-182290
...
6
CRANKCASE COVER MTD-841-020721S
...
7
Crankcase Cover O-Ring MTD-753-05238
...
8
Crankcase Assembly (Incl. 7) MTD-753-06313
...
9
GASKET/INSULATOR MTD-753-05247
...
10
Nut MTD-712-04099
...
11
Insulator MTD-753-06947
...
12
Heat Shield MTD-753-06949
...
13
Gasket MTD-753-06948
...
14
Gasket MTD-791-181709
...
15
CARBURETOR ASSEMBLY MTD-753-06220B
...
16
O-Ring MTD-791-181751
...
17
AIR CLEANER COVER (Incl. 18) MTD-753-05252
...
18
Air Filter MTD-753-05254
...
19
Screw MTD-710-04517
...
20
Flywheel Assembly MTD-753-06221
...
21
Starter Housing Assembly (Incl. 3) MTD-753-06314
...
22
Powershaft Spacer MTD-750-04434
...
23
Clutch Assembly MTD-753-06281
...
24
Clutch Cover (Incl. 2) MTD-753-05263
...
25
Anti-Rotation Screw MTD-791-182519
...
26
SCREW MTD-9689A
...
27
Nut MTD-712-0161
...
28
WIRE LEAD TWST MTD-753-08248
...
29
Fuel Tank Assembly w/Fuel Lines (Incl. 30) MTD-753-06797
...
30
Fuel Tank Cap MTD-753-1229
...
31
Fuel Tank Pads MTD-753-05259
...
32
Muffler Assembly (Incl. 33 & 34) MTD-753-05245
...
33
Screw MTD-710-04809
...
34
Muffler Gasket MTD-753-05244
...
35
Module Assembly MTD-753-08302
...
36
CYLINDER ASSEMBLY (Incl. 38 & 39) MTD-753-06311
...
37
Rocker Cover O-Ring MTD-753-05902
...
38
Rocker Cover MTD-753-05901
...
39
Rocker Cover Screw MTD-791-181025
...
40
Spark Plug MTD-794-00098
...
xx
Shortblock Assembly (Incl. 3, 5, 7, 8, & 36 - 40) MTD-753-06799
