Yard Machines Y2900EC 41BD290C800 Gas String Trimmer

Model: Y2900EC 41BD290C800

Save Part Not Listed?
product name

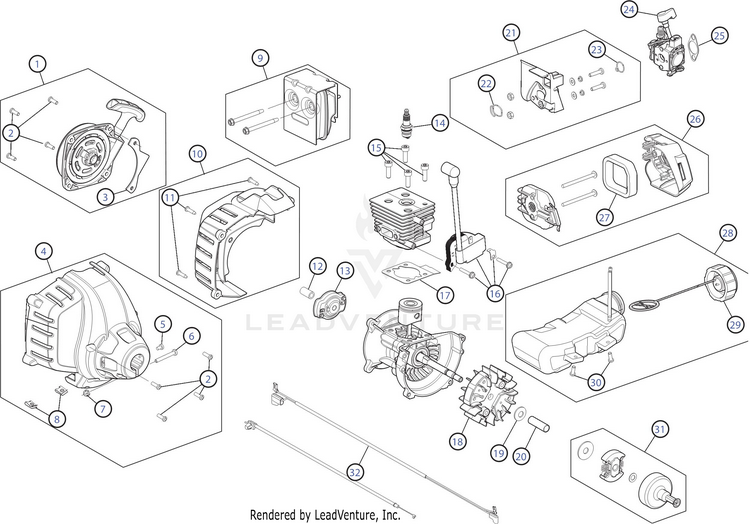

Engine Assembly

...
...
1
Starter Assembly (Incl. 2 & 3) MTD-753-08804
...
2
SCREW:10-32X.5 MTD-1964
...
3
Starter Assembly Guard (Incl. 2) MTD-753-06244
...
4
CLUTCH COVER ASSEMBLY (Incl. 2 and 5 - 8) MTD-753-08250
...
5
Anti-Rotation Screw MTD-791-182519
...
6
SCREW MTD-9689A
...
7
Clamp Nut MTD-712-0161
...
8
U-shaped Nut MTD-791-182366
...
9
MUFFLER ASSEMBLY MTD-753-08745
...
10
REAR ENGINE COVER (Incl. 11) MTD-753-06245
...
11
Cover Screw MTD-791-181345
...
12
Adapter MTD-753-06104
...
13
Pawl Assembly MTD-753-06091
...
14
Spark Plug MTD-753-06847
...
15
Cylinder Bolt MTD-710-04715
...
16
Module Assembly MTD-753-08379
...
17
Cylinder Gasket MTD-753-06827
...
18
Flywheel Assembly MTD-753-06246
...
19
Washer MTD-753-06247
...
20
Spacer MTD-753-06248
...
21
Insulator Assembly (Incl. 22 and 23) MTD-753-06189
...
22
Insulator O-Ring MTD-753-06184
...
23
Carburetor O-Ring MTD-753-06185
...
24
Carburetor MTD-753-06190
...
25
Carburetor Gasket MTD-753-06253
...
26
Air Cleaner Assembly (Incl. 27) MTD-753-06913
...
27
Air Cleaner Filter MTD-753-06954
...
28
Fuel Tank Assembly (Incl. 29 and 30) MTD-753-06250
...
29
Fuel Tank Cap MTD-753-06857
...
30
Fuel Tank Screw MTD-791-181930
...
31
Clutch Assembly MTD-753-05860
...
32
LEAD WIRE MTD-725-06194
...
xx
SHORT BLOCK ASSEMBLY (Incl. Crankcase, Cylinder, Piston, 14 - 20) MTD-753-08582

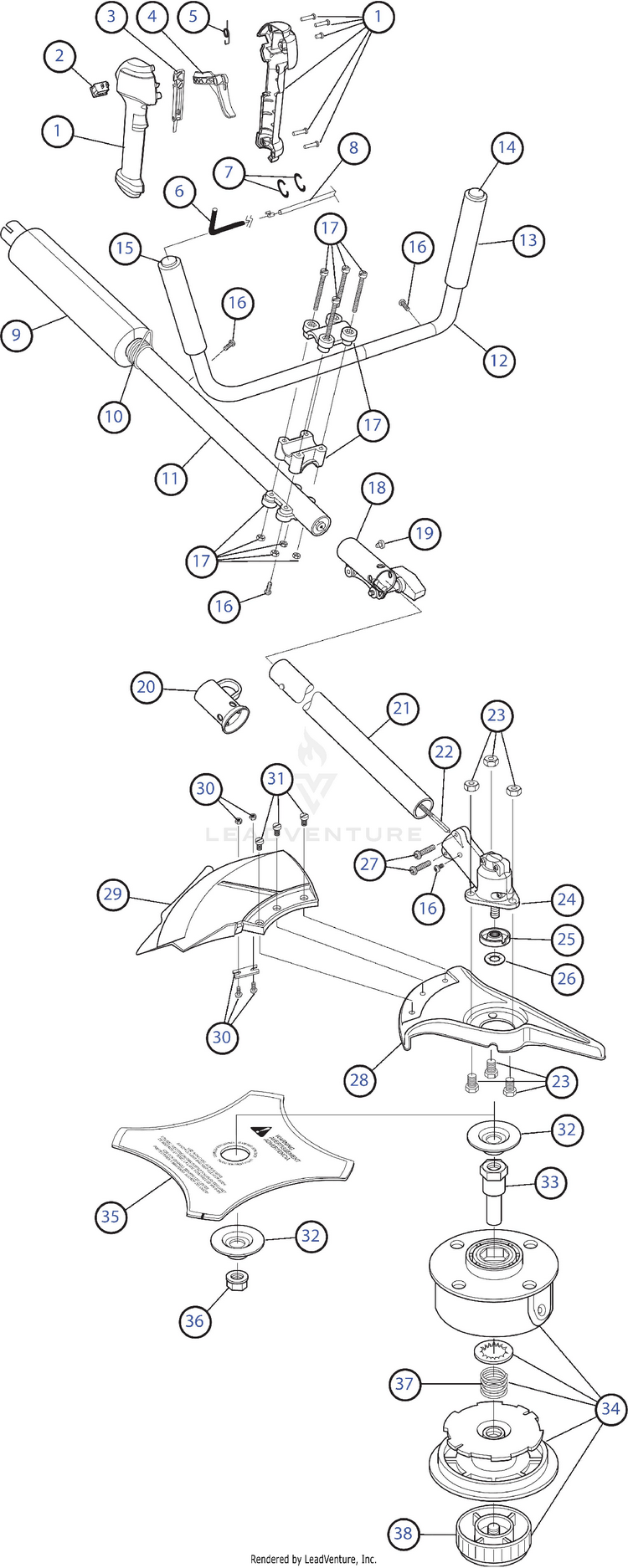

General Assembly

...
...
1
THROTTLE HOUSING ASSEMBLY (Incl. 2 - 5) MTD-753-08377
...
2
Switch Assembly MTD-791-182405
...
3
Throttle Trigger Lock-Out MTD-731-08433C-10
...
4
Throttle Trigger MTD-731-04970B-10
...
5
TRIGGER SPRING MTD-753-05007
...
6
WIRE COVER 6" MTD-3067-M20
...
7
Wire Tie MTD-50788-1
...
8
Throttle Cable MTD-753-05892
...
9
GRIP, FOAM W/VELCR MTD-791-180858
...
10
SHOULDER STRAP CLAMP MTD-4301A
...
10
Harness Clip MTD-791-610327
...
11
Upper Drive Shaft MTD-753-04236
...
12
HANDLE ASSEMBLY BUL(LH)OR (Incl. 13 - 16) MTD-753-08285
...
13
GRIP-HANDLE MTD-791-612831
...
14
Tube Closure MTD-791-612021
...
15
Adapter MTD-792-10029
...
16
Anti-Rotation Screw MTD-791-182519
...
17
Handle Bracket Assembly MTD-791-683295
...
18
Split Boom Coupler (Incl. 19) MTD-753-1190
...
19
Screw MTD-791-182057
...
20
Hanger MTD-731-08926
...
21
Lower Drive Shaft Housing MTD-791-160226
...
22
LOWER DRIVE SHAFT MTD-753-05267
...
23
Shield Mount Hardware MTD-791-182200
...
24
GEARBOX (Incl. 16, 24, 25 and 26) MTD-753-11244
...
25
Blade Driver MTD-791-182196
...
26
Palnut MTD-753-04348
...
27
SCREW #10-24X11/16 T-25 MTD-791-182195
...
28
Blade Shield / Shield Mount MTD-791-147492
...
29
Shield Assembly (Incl. 29) MTD-753-1191
...
30
Blade Assembly MTD-791-682061
...
31
Shield Mounting Screws MTD-791-683304
...
32
Retaining Washer MTD-791-147490
...
33
Spool Shaft MTD-791-612483
...
34
Bump Head Assembly MTD-791-147498
...
35
4-Tooth Blade MTD-791-145873B
...
36
Nut MTD-712-04105
...
37
Spring MTD-791-610636B
...
38
KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B
...
xx
Shoulder Harness MTD-791-682075B
...
xx
Locking Rod Tool MTD-791-613226
