Yard Machines Y28 41ADY28G000 Gas String Trimmer

Model: Y28 41ADY28G000 41ADY28G000 Y28

Save Part Not Listed?
product name

Boom And D-Handle

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY Trigger Assembly (includes 2 & 3) MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE (includes 6) MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
ASSEMBLY, DRIVE SHAFT H MTD-791-181893
...
8
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
9
Flexible Drive Shaft MTD-753-04280
...
10
SCREW, #10-24X.50 M MTD-791-181858
...
11
SHAFT ASSEMBLY-BRG HOUSING MTD-791-181784
...
12
Anti-Rotation Screw MTD-791-145569
...
13
Shield & Blade Assembly (includes 14) MTD-791-683274
...
14
Blade Assembly MTD-791-682061
...
15
Outer Spool & Eyelet (includes 16) MTD-791-153619
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head (tm) Assembly MTD-791-153066B
...
xx
LINE .080 Optional Accessories; Items Not Shown MTD-791-610375
...
xx
Reel and Line Assembly Optional Accessories; Items Not Shown MTD-791-153577B
...
xx
Bump Head (tm) Assembly (includes 15-19); Optional Accessories; Items Not Shown MTD-791-180897B
...
xx
Shoulder Strap Optional Accessories; Items Not Shown MTD-791-682075B

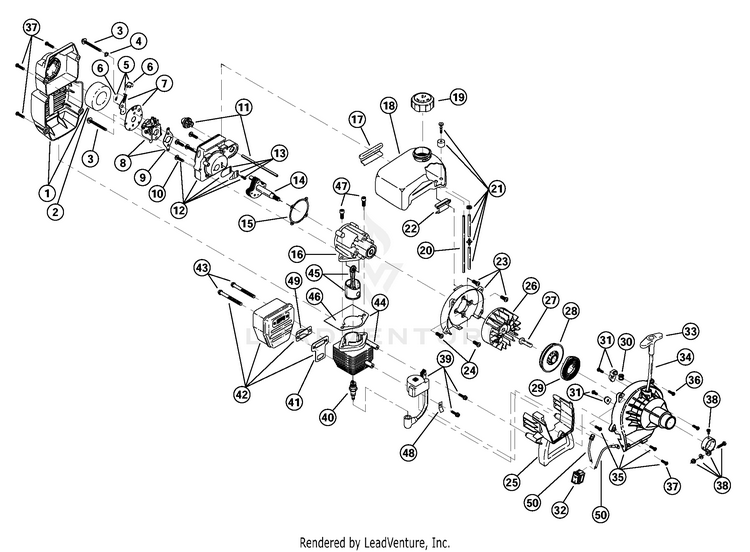

Engine

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (Incl. Ref No. 2 & 37) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
Choke Lever Assembly (Incl. Ref No. 6) MTD-791-182201
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
Choke Lever and Plate (Incl. Ref No. 5) MTD-791-182203
...
8
CARB ASSEMBLY A-SERIES (Incl. Ref No. 9 & 21) MTD-791-182875
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (Incl. Ref No. 10, 13, 15) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
ASSEMBLY, POWER SHAFT MTD-791-181866
...
15
Carburetor Mount Gasket MTD-753-1208
...
16
CRANKCASE ASSEMBLY: (Incl. Ref No. 10, 14 & 24) MTD-791-181865
...
17
PAD, REAR MOUNT PAD MTD-791-612134
...
18
TANK ASSEMBLY:B (Incl. Ref No. 19-21) MTD-791-181908
...
19
Fuel Cap Assembly MTD-753-04084
...
20
Fuel Return Line MTD-791-181086
...
21
Fuel Line Assembly MTD-791-682039
...
22
PAD, FRONT MOUNTING MTD-791-145308
...
23
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
24
SCREW, 1/4-20X.562 F MTD-791-181861
...
25
EXTN-SHROUD W/STAN MTD-753-04611
...
26
Flywheel Assembly MTD-753-05240
...
27
NUT, SQUARE DRIVE MTD-791-610303
...
28
START PULLEY KIT MTD-753-04232
...
29
Recoil Spring MTD-791-613102
...
30
Rope Guide MTD-791-611061
...
31
ASSEMBLY, PULLEY RETAINER MTD-791-180930
...
32A
Positive Switch MTD-791-182673
...
32B
ASSEMBLY, SWIT MTD-791-182441
...
33
Pull Handle MTD-631-04164B
...
34
Rope MTD-791-613103
...
35
ASSEMBLY, STIGA (Incl. Ref No. 28-31, 33-34, 36-37) MTD-791-182721
...
36
SCREW:10-32X.5 MTD-1964
...
37
Cover Screw MTD-791-181345
...
38
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
39A
Governed Module Assembly MTD-791-182879
...
39B
Pulse Module Assembly MTD-791-791-00056
...
40
Spark Plug MTD-791-610311B
...
41
Muffler Gasket MTD-753-04619
...
42
MUFFLER ASM CAT NLAUD (Incl. Ref No. 41 & 43) MTD-753-05169
...
43
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
44
Cylinder Assembly (includes 51 & 52) (Incl. Ref No. 43, 46 & 47) MTD-753-04814
...
45
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
46
Cylinder Gasket MTD-791-610674
...
47
Cylinder Bolt MTD-791-182723
...
48
TAB, GROUND (For use with 32A & 39B only) MTD-791-611063
...
49
SCRN:SPK ARST:A-31 MTD-791-182747
...
50
WIRE, LEAD 3.25" B MTD-791-181936
...
xx
KIT-ENGINE GASK Not Shown MTD-791-182067
...
xx
O.E.M. Carburetor Repair Kit (Walbro) Not Shown MTD-791-180602
...
xx
O.E.M. Carburetor Repair Kit (Zama) Not Shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit (Walbro) Not Shown MTD-791-181069
...
xx
Gasket Diaphragm Repair Kit (Zama) Not Shown MTD-791-180091
...
xx
RING:31CC:PSTN:BARREL FACED Not Shown MTD-791-180530
...
xx
SHORTBLOCK, 31CC NON-CL Not Shown (Incl. Ref No. 10, 14, 16, 24, 40, 44-47) MTD-791-181863
...
xx
SET, STARTER HOUSI Not Shown MTD-791-181501
...
xx
SEAL, SEAL Not Shown MTD-791-610309
