Yard Machines 31BE642F206 (2001) Snow Thrower

Model: 31BE642F206 (2001)

Save Part Not Listed?
product name

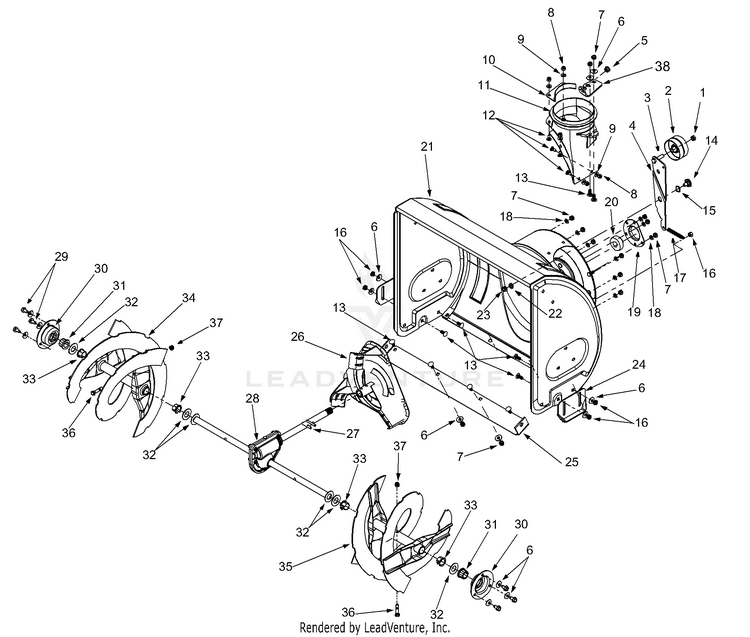

Blower Housing

...
...
1
Lock Jam Nut 3/8-24 MTD-712-0116
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
5
BUSHING .380 ID MTD-941-0475
...
6
Bell Washer MTD-736-0242
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
Hex Lock Nut 1/4-20 MTD-712-0324
...
9
Flat Washer MTD-736-0463
...
10
Reinforcement Chute MTD-705-5226
...
11
Adapter Chute MTD-731-1379D
...
12
Carriage Screw 1/4-20 x .62 MTD-710-0703
...
13
Carriage Bolt 5/16-18 MTD-710-0451
...
14
Shoulder Screw MTD-738-0281
...
15
Wave Washer MTD-736-0174
...
16
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
17
Ext. Spring 3.6" Lg. MTD-932-0611
...
18
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
Bearing Housing MTD-05931A
...
20
Flange Ball Bearing MTD-941-0309
...
21
24" HOUSING ASSEMBLY MTD-684-0039D
...
xx
26" HOUSING ASSEMBLY MTD-684-0040D
...
xx
28" HOUSING ASSEMBLY MTD-684-0041D
...
xx
30" HOUSING ASSEMBLY MTD-684-0055B
...
22
Lock Washer 3/8 MTD-736-0169
...
23
Hex Nut 3/8-16 MTD-712-0798
...
24
Slide Shoe MTD-784-5580
...
25
Shave Plate 24" MTD-790-00120-0637
...
xx
Shave Plate: Auger 26" MTD-790-00121-0637
...
xx
Shave Plate: Auger 28" MTD-790-00118-0637
...
xx
Shave Plate: Auger 30" MTD-790-00119-0637
...
26
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
27
Pin MTD-715-0114
...
28
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B
...
xx
Gear Assembly: Auger 26" MTD-918-0415B
...
xx
Gear Assembly: Auger 28" MTD-918-0416B
...
xx
Gear Assembly: Auger 30" MTD-918-0417B
...
29
Screw, 5/16-18 x .625 MTD-710-0604A
...
30
Bearing Housing MTD-784-5618A-0637
...
31
Hex Flange Bearing MTD-941-0245
...
32
Flat Washer MTD-736-0188
...
33
FLANGE BUSHING MTD-741-0493C
...
34
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) MTD-684-04180-0637
...
xx
Spiral Assembly: RH 26" MTD-684-04182-0637
...
xx
Spiral Assembly: RH 28" MTD-684-04184-0637
...
xx
Spiral Assembly: RH 30" MTD-684-04186-0637
...
35
Spiral 24" LH MTD-684-04181-0637
...
xx
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04183-0637
...
xx
28" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04185-0637
...
xx
30" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04187-0637
...
36
Shear Bolt 5/16-18 x 1.5 MTD-710-0890A
...
37
Lock Nut 5/16-18 MTD-712-0429
...
38
Chute Crank Bracket MTD-784-5647-0637

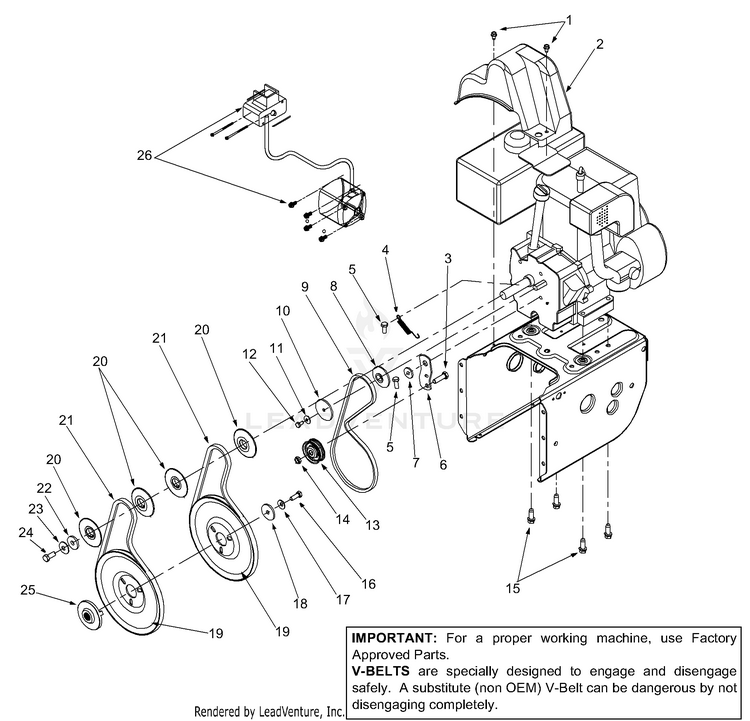

Engine & V-Belts

...
...
1
Hex Washer Screw 1/4-20 x .50 MTD-710-1652
...
2
Belt Cover MTD-731-1324
...
3
Hex Cap Screw 3/8-16 x 1.25 MTD-710-3005
...
4
Extension Spring MTD-932-0710
...
5
Hex Screw 5/16-24 x .75 MTD-710-0627
...
6
BRACKET-IDLR- MTD-05896A
...
7
Shoulder Spacer MTD-748-0234
...
8
HALF PULLEY MTD-956-0987
...
9
V - Belt MTD-954-0346
...
10
HALF PULLEY MTD-756-0986
...
11
SPRING WASHER BELL MTD-736-0270
...
12
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
13
Flat Idler MTD-756-0313
...
14
Lock Jam Nut 3/8-16 MTD-712-0181
...
15
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
16
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
17
Bell Washer .340 ID x .872 OD MTD-736-0242
...
18
Flat Washer .341 ID x .50 OD MTD-736-0505
...
19
Pulley Auger MTD-756-0967
...
20
Pulley Half MTD-756-0569
...
21
BELT: 3V X 35.00 LG MTD-954-0430C
...
22
Flat Washer MTD-736-0247
...
23
Bell Washer .39 ID x 1.13 OD MTD-736-0331
...
24
Hex Cap Screw 3/8-24 x .875 MTD-710-0696
...
25
Adapter Pulley MTD-948-0360
...
26
STARTER MOTOR MTD-TC-33329H

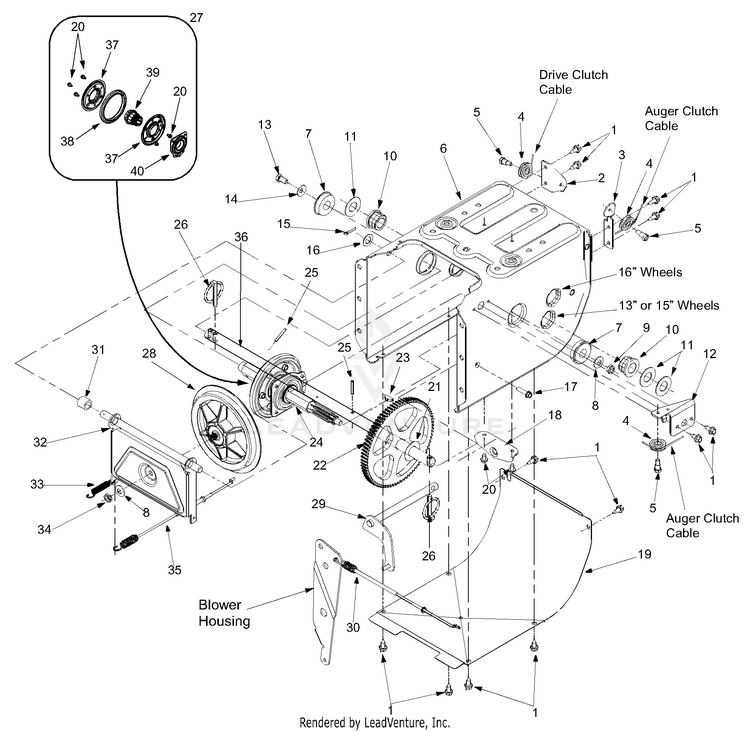

Frame Assembly

...
...
1
Hex Screw MTD-710-1652
...
2
DRIVE GUIDE BRACKET MTD-784-5688
...
3
AUGER GUIDE BRACKET MTD-784-5687A
...
4
Roller Cable MTD-756-0625
...
5
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
6
FRAME MTD-684-0030
...
7
BALL BEARING MTD-941-0563
...
8
Bell Washer MTD-736-0105
...
9
Lock Jam Nut MTD-712-0116
...
10
Hex Flange Brg. .752" I.D. MTD-941-0598
...
11
Flat Washer MTD-736-0188
...
12
GUIDE BRACKET MTD-784-5689A-0637
...
13
Lock Hex Screw MTD-710-0538
...
14
Bell Washer .340 ID x .872 OD MTD-736-0242
...
15
Cotter Pin MTD-714-0474
...
16
Flat Washer .536 ID x .930 OD MTD-736-0160
...
17
Hex Washer Screw 1/4-20 MTD-710-0788
...
18
Frame Shift Bracket MTD-784-5590
...
19
FRAME COVER MTD-784-5638A
...
20
Hex Washer Screw 1/4-20 MTD-710-0599
...
21
Flat Washer .760 ID x .50 OD MTD-736-0351
...
22
Gear MTD-717-1445
...
23
Key MTD-714-0126
...
24
7-Tooth Shaft MTD-917-04094
...
25
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
26
Click Pin MTD-714-0143A
...
27
Wheel Assembly Friction MTD-984-0042C
...
28
Friction Wheel Disc Ass'y. MTD-956-0012A
...
29
SHIFT ROD ASSEMBLY MTD-684-04243
...
30
Cable-Auger Clutch MTD-946-0897
...
31
Spacer MTD-748-0190
...
32
BRACKET ASSEMBLY MTD-984-0021-0637
...
33
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
34
Jam Nut 3/8-24 MTD-712-0711
...
35
Cable-Drive Clutch MTD-946-0898
...
36
Axle 13" Wheels MTD-738-0869
...
xx
AXLE .750X24.5 MTD-738-0830
...
37
Wheel Assembly Friction MTD-984-0042C
...
38
Rubber Only MTD-935-0243B
...
39
Wheel Assembly Friction MTD-984-0042C
...
40
FRICTION WHEEL BEARING ASSEMBLY MTD-618-0063

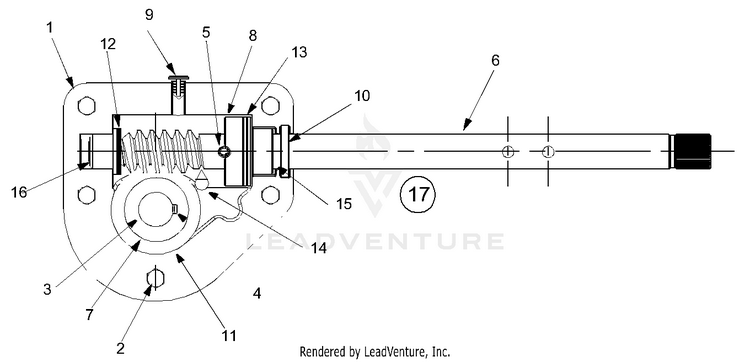

Gear Assembly

...
...
1
RH Housing MTD-918-0123A
...
xx
LH Housing MTD-918-0124A
...
2
Hex Screw 1/4-20 x .75 MTD-710-0642
...
3
24"AUGER SHAFT MTD-711-0908A
...
xx
26"AUGER SHAFT MTD-711-0909A
...
xx
Spiral Axle 28" MTD-711-0910A
...
xx
Axle, Spiral 30" MTD-711-1024A
...
4
KEY 3/16 x 5/8 H MTD-914-0161
...
5
Pin-Spiral MTD-715-0143
...
6
IMPELLER SHAFT MTD-717P0526
...
7
WORM GEAR 20T MTD-917-04861
...
8
Collar-Thrust MTD-718-0186
...
9
Plug MTD-721-0325
...
10
Seal-Oil MTD-721-0327
...
11
Washer-Flat MTD-736-0351
...
12
Washer-Flat MTD-736-0369
...
13
Washer-Flat MTD-736-0445
...
14
Grease MTD-737-0168A
...
15
Bearing-Flange MTD-741-0662
...
16
Bearing-Flange MTD-741-0663
...
17
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B
...
xx
Gear Assembly: Auger 26" MTD-918-0415B
...
xx
Gear Assembly: Auger 28" MTD-918-0416B
...
xx
Gear Assembly: Auger 30" MTD-918-0417B

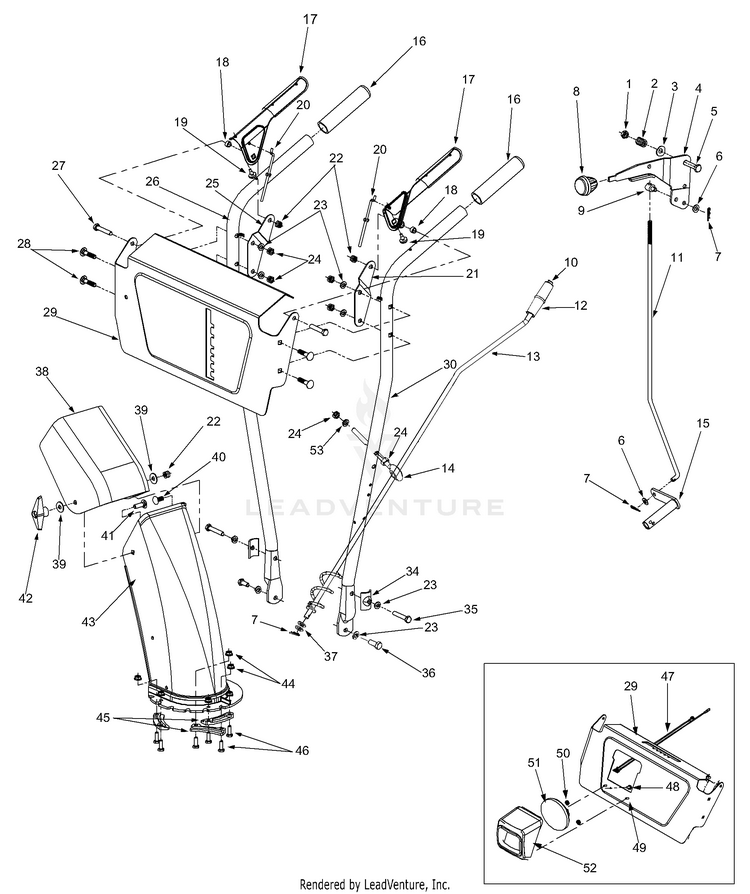

Handle & Chute

...
...
1
Jam Lock Nut 3/8-24 MTD-712-0116
...
2
Compression Spring MTD-732-0193
...
3
Bell Washer MTD-736-0105
...
4
KIT-SHIFT HANDLE:S MTD-753-05395
...
5
Hex Cap Screw 3/8-24 MTD-710-0459A
...
6
FLAT WASHER MTD-736-0275
...
7
Cotter Pin MTD-714-0104
...
8
Knob MTD-920-0232
...
9
Engagement Ferru MTD-911-0677
...
10
Push Cap MTD-726-0100
...
11
SHIFT ASSEMBLY ROD MTD-747-0921
...
12
Chute Knob MTD-720-0201A
...
13
Chute Crank Ass'y MTD-984-0022
...
14
EYEBOLT MTD-747-0697
...
xx
Grommet only MTD-735-0234
...
15
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
16
Grip MTD-720-0274
...
17
CLUTCH LEVER (LH) MTD-705-5233A
...
xx
CLUTCH LEVER (RH) MTD-705-5234A
...
18
SPACER MTD-750-1032
...
19
Rubber Bumper MTD-735-0199A
...
20
Cable "Z" Fitting MTD-946-0778
...
21
PANEL SUPPORT BRACKET (LH) MTD-705-5275
...
22
Lock Hex Nut 5/16-18 MTD-712-0429
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
HEX NUT 5/16-18 MTD-712-3010
...
25
PANEL SUPPORT BRACKET (RH) MTD-705-5274
...
26
HANDLE (RH) MTD-749-0910C-0637
...
27
Hex Cap Screw 5/16-18 x 1.75 MTD-710-3103
...
28
Carriage Bolt 5/16-18 x 1.50 MTD-710-0262
...
29
CONTROL PANEL ASSEMBLY MTD-684-0105
...
xx
HANDLE PANEL ASSEMBLY MTD-684-0145
...
xx
HANDLE PANEL ASSEMBLY MTD-684-0106
...
30
HANDLE (LH) MTD-749-0911B
...
34
Handle Tab MTD-984-5599
...
35
Hex Cap Screw 5/16-18 x 2.0 MTD-710-3180
...
36
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
37
Flat Washer MTD-736-0185
...
38
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
39
5/16 Washer MTD-736-0159
...
40
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
41
Carriage Screw 5/16-18 x 1.0 MTD-710-0276
...
42
Knob MTD-720-0284
...
43
Lower Chute MTD-731-1300E
...
44
LOCK NUT 1/4 MTD-912-3027
...
45
Flange Keeper MTD-731-0851A
...
46
Hex Cap Screw 1/4-20 x .75 MTD-710-3015
...
47
LIGHT HARNESS ASSEMBLY MTD-929-0058B
...
48
Hex Tap Screw 1/4-20 x .625 MTD-710-1652
...
49
Special Screw, #10-16 x .625 MTD-710-04669
...
50
SELF TAPP NUT MTD-712-0415
...
51
HEADLIGHT MTD-925-1300
...
52
HEAD LIGHT BEZEL MTD-731-1317
...
53
Bell Washer MTD-736-0242

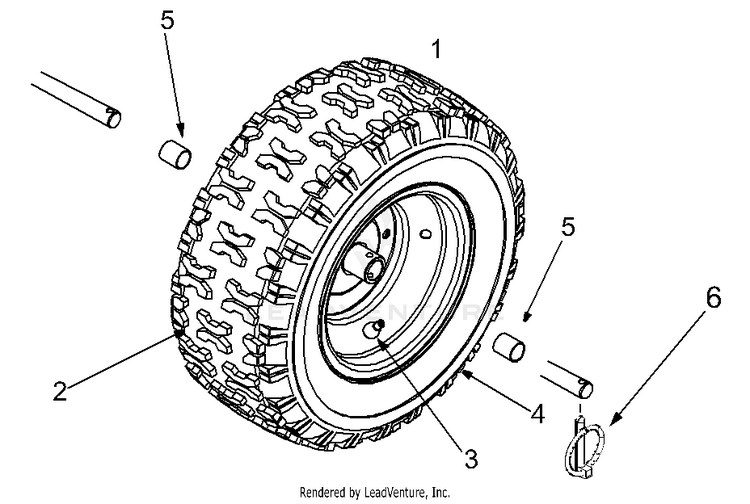

Wheel Assembly

...
...
1
Wheel Assembly Complete MTD-NA
...
xx
WHEEL ASSEMBLY MTD-634-0114
...
xx
WHEEL ASSEMBLY 13 x 5 MTD-734-1714
...
xx
WHEEL ASSEMBLY 16 x 6.5 MTD-734-1712
...
xx
WHEEL ASSEMBLY 16X4.8 MTD-734-1709
...
2
Tire Only MTD-NA
...
xx
13 x 4 MTD-734-1732
...
xx
TIRE-SNOW HOG 13X5 TIRE-CODE MTD-734-1527
...
xx
TIRE-SNOW HOG-16X6 MTD-734-1525
...
xx
16.5 x 4.8 MTD-734-1530
...
3
TUBELESS VALVE MTD-934-0255
...
4
Rim Only MTD-NA
...
xx
RIM ASSEMBLY 6.0 x 3.25 MTD-734-1713
...
xx
RIM ASSEMBLY 6.0 x 3.25 MTD-734-1713
...
xx
WHEEL RIM 8.0 x 5.38 x 7.30 MTD-734-1711
...
xx
RIM ASSEMBLY MTD-734-1708
...
5
Sleeve Bearing .752" I.D. MTD-941-0401
...
6
Click Pin MTD-714-0143A
