Yard Machines 31AS6FCE700 (2005-2) Snow Thrower

Model: 31AS6FCE700 (2005-2)

Back To Assemblies

Save Part Not Listed?
product name

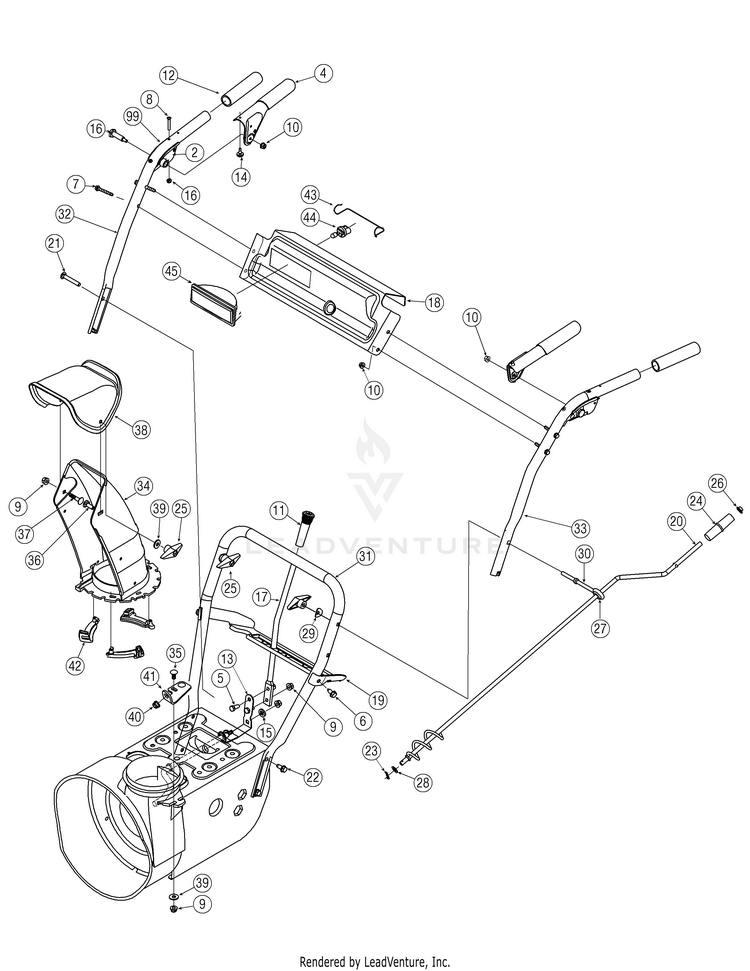

Handle Assembly

...
...
1
CLUTCH LOCK HANDLE ASSEMBLY (LH) MTD-631-04133A
...
2
CLUTCH LOCK HANDLE ASSEMBLY (RH) MTD-631-04134B
...
3
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
4
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
5
Screw, Self-tapping, 5/16-18, .625 MTD-710-0376
...
6
Screw, Self-tapping, 5/16-18, 1.0 MTD-710-0604A
...
7
Screw, Self-tapping, 1/4-20, 1.50 MTD-710-0606
...
8
Screw, Machine, #10-24, 1.375 MTD-710-1233
...
9
Nut, Flange Lock, 5/16-18, Nylon MTD-712-04063
...
10
Nut, Flange Lock, 1/4-20, Nylon MTD-712-04064
...
11
Grip, 0.5 ID x 3.45 MTD-720-0223
...
12
Grip, 1.0 ID x 5.0 MTD-720-0274
...
13
Spring Lever, Shift MTD-732-04205
...
14
Bumper, Rubber, .62 OD x .22 MTD-735-0199A
...
15
Washer, Flat, .350 sq. x .72 x .134 MTD-736-0509
...
16
SHOULDER SCREW .437 x 1.345 1/4-20 MTD-738-04348
...
17
SHIFT LEVER MTD-747-04243-0637
...
18
HANDLE PANEL MTD-790-00100
...
18
HANDLE PANEL D STY MTD-790-00101
...
19
Panel, Speed Select (5 FW, 2 RV) MTD-790-00187A
...
20
CHUTE CRANK ASSEMBLY MTD-684-04104-0637
...
21
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
22
Screw, 5/16-18, 0.75, Gr5 MTD-710-1260A
...
23
Pin, Cotter, .072 x 1.13 MTD-714-0104
...
24
Crank Knob, 1.0 Dia. x 3.2 Black MTD-720-0201A
...
25
Knob Assembly, Wing Nut, 5/16-18 MTD-720-0284
...
26
Cap, Push, 3/8 Rod MTD-726-0100
...
27
Grommet, .44 ID x .94 OD x.50 MTD-735-0234
...
28
Washer, Flat, .375 x .738 x.063 MTD-736-0185
...
29
Washer, Saddle, 320 x .93 x .060 MTD-736-0451
...
30
Eye Bolt, Chute Crank MTD-747-04263
...
31
Lower Handle MTD-749-04138A
...
32
Handle, Upper, RH MTD-749-04141
...
33
Upper Handle, LH MTD-749-04191A
...
34
Lower Chute MTD-731-04912B
...
35
Bolt, Carriage, 5/16-18, 1.0 MTD-710-0276
...
36
Bolt, Carriage, 5/16-18, 1.0 MTD-710-04071
...
37
Bolt, Carriage, 5/16-18, .750 MTD-710-0451
...
38
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
39
Washer .349 ID x .879 OD x .063 MTD-736-0159
...
40
BUSHING .380 ID MTD-941-0475
...
41
Chute Crank Bracket MTD-784-5647-0637
...
42
Chute Flange Keeper MTD-731-04869A
...
43
Retainer, Lens MTD-747-1136
...
44
Lamp MTD-925-1658
...
45
Lens/Lamp Assembly Housing MTD-925-1672
...
46
Wire Harness, Lamp MTD-725-04220
