Yard Machines 31AS6DEF700 (2008) Snow Thrower

Model: 31AS6DEF700 (2008)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG MTD-RN4C
...
xx
Spark Plug - MTD SU & SUA MTD-951-10292A
...
xx
GENUINE FACTORY PARTS® Spark Plug 751-10292 Snow, Ride MTD-490-250-F012
...
xx
Spark Plug - B&S MTD-759-3336
...
xx
Key - Tecumseh MTD-TC-35062
...
xx
Ignition Key MTD-951-10630
...
xx
SAFETY START KEY MTD-BS-794696
...
xx
3-Prong Extension Cord MTD-929-0071B
...
xx
Snow Removal Tool MTD-931-2643
...
xx
Drive Cable MTD-946-04229B
...
xx
Auger Cable MTD-946-04230B
...
xx
Speed Selector Cable E & F-Style Panel MTD-946-04397A
...
xx
Speed Cable K-Style Panel MTD-946-04396A
...
xx
Wheel Cable MTD-NA
...
xx
Spiral Assembly, LH MTD-684-04107A-0637
...
xx
Spiral Assembly, RH MTD-684-04108A-0637
...
xx
Shave Plate - 24'' MTD-790-00120-0637
...
xx
Shave Plate - 26'' MTD-790-00121-0637
...
xx
Shave Plate - 28'' MTD-790-00118-0637
...
xx
Shave Plate - 30'' MTD-790-00119-0637
...
xx
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
xx
Slide Shoe MTD-784-5580-0637
...
xx
SLIDE SHOE (POLYMER SMALL) MTD-731-06439
...
xx
Standard Polymer Reversible Shoe Kit (Will replace 731-06439, includes hardware & 2 shoes) MTD-753-06206
...
xx
Slide Shoe - Deluxe Polymer MTD-731-05984A
...
xx
Deluxe Polymer Reversible Shoe Kit (Will replace 731-05984A, includes hardware & 2 shoes) MTD-753-06205
...
xx
Slide Shoe - Deluxe MTD-790-00091-0637
...
xx
Shear Pin MTD-738-04124A
...
xx
Bow Tie Cotter Pin MTD-714-04040
...
xx
Lamp MTD-925-1658
...
xx
Lamp MTD-925-04213
...
xx
Auger Drive Belt MTD-954-04050A
...
xx
Wheel Drive Belt MTD-954-0367
...
xx
Spiral Cresent MTD-NA
...
xx
Rubber Paddle MTD-NA
...
xx
FRICTION WHEEL ASSEMBLY MTD-684-04153C
...
xx
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
xx
Wheel - LH - X-Trac MTD-634-04146-0911
...
xx
Wheel - RH - X-Trac MTD-634-04145-0911
...
xx
Snow Hog Wheel - 16 x 4.8 MTD-634-04141-0911
...
xx
Snow Hog Wheel - 15 x 5 MTD-634-04142A-0911
...
xx
Snow Hog Wheel - 13 x 4 MTD-634-04144A-0911
...
xx
KIT-LIGHT For electric start MTD 179cc or 208cc engine with dual alternator. MTD-490-241-0009

Auger & Auger Housing

...
...
1
RH Housing MTD-918-0123A
...
2
LH Housing MTD-918-0124A
...
3
Hex Washer Screw, 1/4-20 x .750 MTD-710-0642
...
4
24" AUGER SHAFT 24-Inch MTD-711-04285A
...
4
26" AUGER AXLE 26-Inch MTD-711-06144
...
4
28" AUGER AXLE 28-Inch MTD-711-06145
...
4
Auger Axle, 30" 30-Inch MTD-711-04282A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Dowel Pin, .25 OD x 1.25 LG MTD-715-04021
...
7
Shaft, Worm .75 OD MTD-917-04126
...
8
WORM GEAR 20T 24-Inch MTD-917-04861
...
8
WORM GEAR 20T 26-Inch MTD-917-04861
...
8
WORM GEAR 20T 28 & 30-Inch MTD-917-04861
...
9
Thrust Collar, .756 ID x .600 MTD-718-04071
...
10
Plug, 1/4 x .437 MTD-721-0325
...
11
Oil Seal, .75 x 1.131 x .188 MTD-721-0327
...
12
Flat Washer, .760 ID x 1.50 ID MTD-736-0351
...
13
Flat Washer, .51 x 1.12 x .06 MTD-736-3084
...
14
Flng. Bearing, .75 ID x 1.00 OD x .59 MTD-741-0662
...
15
Flange Bearing, .50 ID x .75 OD x .59 MTD-741-0663
...
16
24" GEARBOX ASSEMBLY 24-Inch MTD-918-04171C
...
16
26" GEARBOX ASSEMBLY 26-Inch MTD-918-04172C
...
16
28" GEARBOX ASSEMBLY 28-Inch MTD-918-04173B
...
16
AUGER GEARBOX ASSEMBLY 30" 30-Inch MTD-918-04165B
...
17
AUGER SPIRAL (LH) MTD-684-04107A
...
18
AUGER SPIRAL (RH) MTD-684-04108A
...
19
24" AUGER HOUSING 24-Inch MTD-684-04270A
...
19
26" AUGER HOUSING 26-Inch MTD-684-04271A
...
19
28" AUGER HOUSING 28-Inch MTD-684-04272A
...
19
30" AUGER HOUSING 30-Inch MTD-684-04267A
...
20
Bow-Tie Cotter Pin MTD-714-04040
...
21
Spacer, 1.2500 x .75 ID x 1.00 LG MTD-731-04870
...
22
Spacer, 1.250 x .75 ID x 3/16 LG Spacer used on 30" augers only MTD-731-04871
...
23
Flat Washer, .76 x 1.49 x .06 MTD-736-0188
...
24
Shear Pin, .25 x 1.50 MTD-738-04124A
...
25
FLANGE BUSHING MTD-741-0493C
...
26
Bearing Housing, 1" MTD-790-00087A
...
27
24" SHAVE PLATE 24-Inch MTD-790-00120
...
27
26" SHAVE PLATE 26-Inch MTD-790-00121
...
27
28" SHAVE PLATE 28-Inch MTD-790-00118
...
27
30" SHAVE PLATE 30-Inch MTD-790-00119
...
28
Snow Removal Tool MTD-931-2643
...
29
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
30
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
31
Hex Screw, 3/8 -16 x 1.75 MTD-710-0347
...
32
SCREW 5/16-18 x .750 MTD-710-04484
...
33
Carriage Bolt, 5/16-18 x .750 MTD-710-0451
...
34
Carriage Screw, 1/4-20 x .75 MTD-710-0703
...
35
Flange Lock Nut, 5/16-18 MTD-712-04063
...
36
Flange Lock Nut, 1/4-20 MTD-712-04064
...
37
Flange Lock Nut, 3/8 -16 MTD-712-04065
...
38
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
39
Push Nut, .25 Dia. MTD-726-04012
...
40
CHUTE ADAPTER MTD-731-04705D
...
41
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
42
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
43
Shoulder Screw, .625 x .17 x 3/8 -16 MTD-738-0281
...
44
Hex Flange Bearing MTD-941-0245
...
45
Flange Ball Bearing MTD-941-0309
...
46
Flat Idler Pulley MTD-756-04224
...
47
BEARING HOUSING 1.85 ID MTD-790-00075B
...
48
AUGER IDLER BRACKET MTD-790-00080D
...
49
Wave Washer, .625 x .885 x .015 MTD-736-0174
...
50
Auger Cable MTD-946-04230B
...
51
3-Prong Extension Cord (Electric Start Only) MTD-929-0071B
...
52
Carriage Bolt, 5/16-18 x .750 MTD-710-0451
...
53
Flange Lock Nut, 5/16-18 MTD-712-04063
...
54
Skid Shoe, Standard Can be replaced with 731-06439 Skid Shoe MTD-784-5580
...
54
Screw, Carriage 5/16-18 x .750 Use w/ 784-5580 MTD-710-0451
...
54
Nut, Nylon Lock 5/16-18 Use w/ 784-5580 MTD-712-04063
...
54
Washer, Flat .349 x .879 x .063 Use w/ 784-5580 MTD-736-0159
...
55
SLIDE SHOE (POLYMER SMALL) MTD-731-06439
...
55
Standard Polymer Reversible Shoe Kit (Will replace 731-06439, includes hardware & 2 shoes) MTD-753-06206
...
55
Screw, Carriage 5/16-18 x .750 Use w/ 731-06439 MTD-710-0276
...
55
Nut, Nylon Lock 5/16-18 Use w/ 731-06439 MTD-712-04063
...
55
Washer, Flat .349 x .879 x .063 Use w/ 731-06439 MTD-736-0159
...
56
Flat Washer, .349 x .879 x .063 MTD-736-0159
...
57
Deluxe Polymer Skid Shoe MTD-731-05984A
...
57
Deluxe Polymer Reversible Shoe Kit (Will replace 731-05984A, includes hardware & 2 shoes) MTD-753-06205
...
57
Screw, Carriage 5/16-18 x .750 Use w/ 731-05984 MTD-710-0276
...
57
Nut, Nylon Lock 5/16-18 Use w/ 731-05984 MTD-712-04063
...
57
Washer, Flat .349 x .879 x .063 Use w/ 731-05984 MTD-736-0159
...
58
Skid Shoe, Deluxe Can be replaced with 731-05984A or 790-00141 MTD-790-00091
...
58
Screw, Carriage 5/16-18 x .750 Use w/ 790-00091 MTD-710-0451
...
58
Nut, Nylon Lock 5/16-18 Use w/ 790-00091 MTD-712-04063
...
58
Washer, Flat .349 x .879 x .063 Use w/ 790-00091 MTD-736-0159
...
59
Extension Spring MTD-732-04460

Drive System

...
...
1
Snow Hog Wheel, 16 x 4.8 MTD-634-04141
...
1
Snow Hog Wheel, 15 x 5 MTD-634-04142A
...
1
Snow Hog Wheel, 13 x 4 MTD-634-04144A
...
1A
X-Trac Wheel, 16 x 4.8 x 8 (RH) MTD-634-04145
...
1A
X-Trac Wheel, 16 x 4.8 x 8 (LH) MTD-634-04146
...
2
Spacer, 1.25 OD x .75 ID x 3.00 MTD-731-04873
...
3
WHEEL AXLE SHAFT .75 x 22" MTD-938-04493
...
4
Hex Lock Screw, 5/16-24 x .750 MTD-710-0627
...
5
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
6
Flat Washer, .793 x 1.24 x .06 MTD-736-0287
...
7
Hex Flange Bearing MTD-941-0245
...
8
E-Ring, .750 MTD-716-0231
...
9
BALL BEARING MTD-941-0563
...
10
Hex Washer Screw, 1/4-20 x 1.000 MTD-710-0788
...
11
Hex Washer Screw, 1/4-20 x .625 MTD-710-1652
...
12
Auger Cable Guide Bracket MTD-790-00096-0637
...
13
Cable Roller MTD-756-0625
...
14
Shoulder Screw, .340 x .335 x 1/4-28 MTD-738-0924A
...
15
AUGER CABLE GUIDE BRACKET MTD-790-00206B
...
16
Hex Washer Screw, 1/4-20 x .625 MTD-710-1652
...
17
Shoulder Screw, .368 x .113 x 1/4-20 MTD-738-04184A
...
18
E-Ring, .875 MTD-716-0136
...
19
Hi-Pro Key, 3/16 x 3/4 MTD-714-0126
...
20
Flat Washer, .75 x 1.00 x .06 MTD-736-04161
...
21
Gear:80 Tooth MTD-917-04230
...
22
Shaft-Hex .812 MTD-917-04209A
...
23
FRICTION WHEEL ASSEMBLY MTD-684-04153C
...
24
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
25
CABLE GUIDE BRACKET (DRIVE) MTD-790-03997
...
26
FRICTION WHEEL BRACKET MTD-684-04154B-0637
...
27
Spacer, .508 ID x .750 OD x .68 MTD-748-0190
...
28
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
29
HEX NUT MTD-712-0417A
...
30
Drive Cable MTD-946-04229B
...
31
Frame Cover MTD-790-00316
...
32
Speed Nut, .500 MTD-726-0221
...
33
DRIVE FRAME HOUSING MTD-790-00180E
...
34
Rod Shift Assembly MTD-684-04156A
...
35
E-RING FOR .500 MTD-916-0104
...
36
TORSION SPRING MTD-732-04311A
...
37
Flange Lock Nut, 3/8-16 MTD-712-04065
...
38
Shift Bracket, Speed Selector MTD-790-00218A
...
39
Pivot Bracket, Speed Selector MTD-790-00217A
...
40
FLAT WASHER MTD-936-3015
...
41
Flange Lock Nut, 5/16-18 MTD-712-04063
...
42
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
43
Flange Lock Nut, 1/4-20 MTD-712-04064
...
44
Shoulder Screw, .368 x .113 x 1/4-20 MTD-738-04184A
...
45
Plug, 3/8 ID MTD-735-04099
...
46
Plug, 1/2 ID MTD-735-04100
...
47
Hex Washer Screw, 3/8-16 x 1.000 MTD-710-0654A
...
48
Flat Wsh., .38 x 1.38 x .125 (Tec/B&S) MTD-736-0320
...
49
Pulley Adapter MTD-748-04053A
...
50
Auger Belt Pulley MTD-756-04109
...
51
Flat Washer, .34 x 1.50 x .150 MTD-736-0505
...
52
Hex Screw, 5/16-24 x .875 MTD-710-1245B
...
53
Hex Screw, 3/8 -24 x 1.25 MTD-710-0191
...
54
Flat Washer, .406 x 1.25 x .157 MTD-736-0247
...
55
HALF PULLEY A2.76 x 1.140 SPLINE MTD-756-06563
...
56
Auger Drive Belt MTD-954-04050A
...
57
Spacer, .875 ID x 1.185 OD MTD-750-04303
...
58
Pulley Half MTD-756-04252
...
59
Wheel Drive Belt MTD-954-0367
...
60
Hex Washer Screw, 1/4-20 x 1.250 MTD-710-0809
...
61
Shoulder Spacer, .260 x .785 x .538 MTD-750-04571
...
62
Idler Puller Assembly MTD-684-04169
...
63
Hex Screw, 5/16-24 x 1.25 MTD-710-0672
...
64
Lock Wash. 5/16" I.D. MTD-936-0119
...
65
Shlder. Spcr., .3175 ID x .500 x .0975 MTD-748-04112B
...
66
Drive Idler Bracket MTD-790-00208D
...
67
Spacer, .340 x .750 MTD-750-04477A
...
68
TORSION SPRING MTD-732-04308C
...
69
Push-on Nut, .25 MTD-726-04012
...
70
Hex Washer Screw, 1/4-20 x .625 MTD-710-1652
...
71
BELT COVER MTD-731-05353B
...
71
BELT COVER (SMALL BLOCK) MTD-631-05321
...
72
Hex Lock Screw, 5/16-24 x .750 MTD-710-0627
...
73
Shoulder Spacer MTD-748-0234
...
74
COVER PLATE (POWDER BLACK) MTD-790-00289B-0637
...
75
Hex Bolt M8-1.25: 20 (for ZS Engine) MTD-710-1681
...
76
Cable Control Wire (for ZS Engine) MTD-732-0705
...
77
Flat Washer, .330 x .630 x .0635 (for ZS Engine) MTD-736-0264
...
78
Hex Washer Screw, 1/4-14 x .625 MTD-710-0896
...
79
Friction Plate MTD-790-00174C
...
80
FRICTION WHEEL 5.50OD MTD-935-04054A
...
81
Friction Disc Bearing Pin MTD-738-04164A
...
82
Ball Bearing, 30 x 55 x 13 MTD-741-04098
...
83
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
xx
Bearing Assembly (Not Shown) MTD-618-0063A

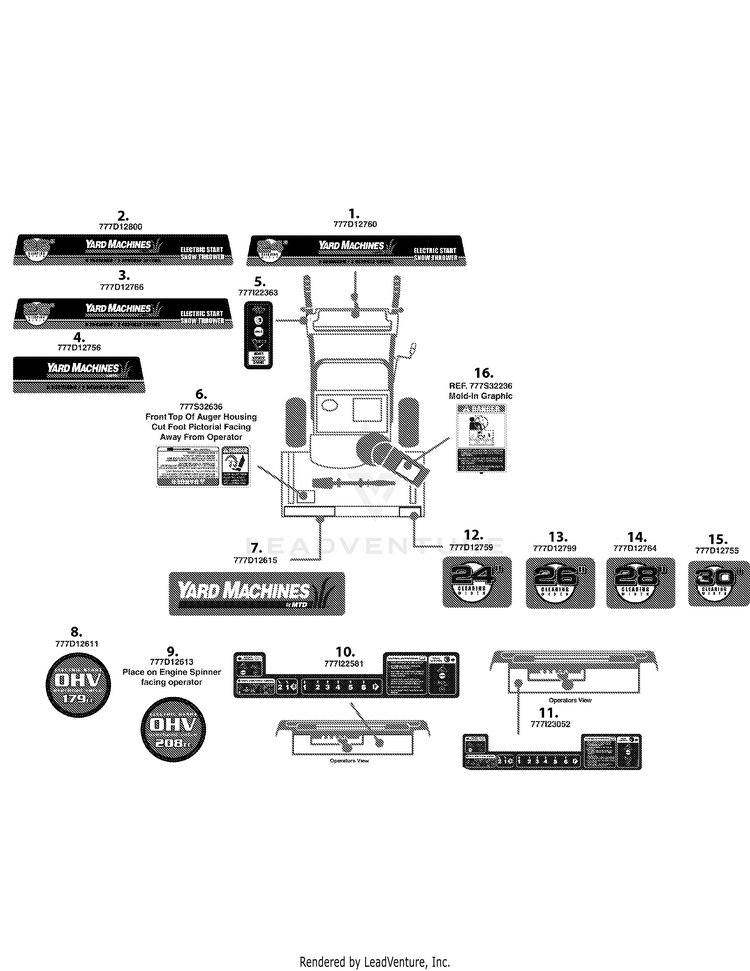

Label Map

...
...
1
LABEL-SNOW HANDLE PANEL YARD MACH Model 31AM62EE700 MTD-777D12760
...
2
LABEL-SNOW HANDLE PANEL Model 31AM63EF700 & 31AS6DEF700 MTD-777D12800
...
3
LABEL-SNOW HANDLE PANEL YARD MACH Model 31AS6WEG700 MTD-777D12766
...
4
LABEL-SNOW FRONT HANDLE PANEL Model 31AH6ZFH700 MTD-777D12756
...
5
LABEL:DRV/AUGR LOCK MTD-777I22363
...
6
LABEL:SNOW HOUSING MTD-777S32636
...
7
LABEL-SNOW AUGER HSG (LH) YARD MACH MTD-777D14774
...
8
LABEL-ENGINE SPN:OHV Model 31AM62EE700 MTD-777D12611
...
9
LABEL-ENGINE SNOW SPN/OHV ES/208 Model 31AM63EF700 MTD-777D12613
...
10
LABEL:OPERATOR PAN Model 31AM63EF700 & 31AS6DEF700 & 31AM62EE700 MTD-777I22581
...
11
LABEL-SNOW E,F PANEL Model 31AS6WEG700 & 31AH6ZFH700 MTD-777I23052
...
12
LABEL-SNOW FRONT (RH) AUGER Model 31AM62EE700 MTD-777D12759
...
13
LABEL-SNOW FRONT AUGER (RH) Model 31AM63EF700 & 31AS6DEF700 MTD-777D12799
...
14
LABEL-SNOW FRONT (RH) AUGER Model 31AS6WEG700 MTD-777D12764
...
15
LABEL-SNOW FRONT (RH) AUGER Model 31AH6ZFH700 MTD-777D12755
...
16
LABEL:SNOW CHUTE MTD-777S32236

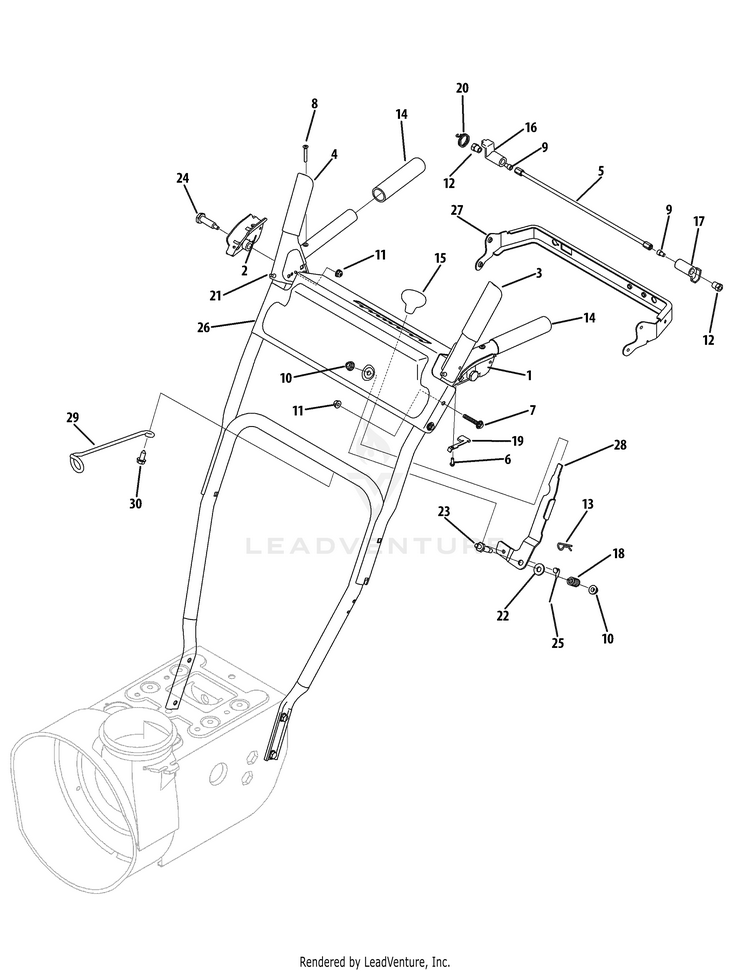

Panel E Style

...
...
1
Clutch Lock Handle Assembly, LH MTD-631-04133A
...
2
Clutch Lock Handle Assembly, RH MTD-631-04134B
...
3
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
4
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
5
Clutch Pivot Lock Rod Assembly MTD-684-04250
...
6
Hex Washer Screw, 8-16 x .50 MTD-710-04326
...
7
Hex Washer Screw, 1/4-20 x 1.625 MTD-710-04586
...
7
Hex Screw, 1/4-20 x 1.50 MTD-710-0606
...
8
Machine Screw, 1/4-20 x .50 MTD-710-1233
...
9
Socket Head Cap Screw, 1/4-20 x .50 MTD-710-3069
...
10
Flange Lock Nut, 5/16-18 MTD-712-04063
...
11
Flange Lock Nut, 1/4-20 MTD-712-04064
...
12
Hex Nut, 1/4-20 MTD-712-04081A
...
13
Click Pin, .092 x 1.64 MTD-714-0145
...
14
Grip, 1.0 ID x 5.0 LG MTD-720-0274
...
15
Shift Knob MTD-720-04039
...
16
Lock Plate MTD-731-04894D
...
17
CLUTCH LOCK CAM MTD-731-04896C
...
18
Compression Spring, .39 x .60 x .88 MTD-732-0193
...
19
Clutch Lock Spring MTD-732-04219C
...
20
TORSION SPRING MTD-732-04238B
...
21
Rubber Bumper, .62 OD x .22 Thick MTD-735-0199A
...
22
Flat Washer, .385 x .870 x .092 MTD-736-0262
...
23
LOCK WASHER MTD-736-04118
...
24
Shoulder Screw, .437 x 1.345 x 1/4-20 MTD-738-04348
...
25
Speed Selector Cable MTD-946-04397A
...
26
HANDLE PANEL-STEEL W/O CUTOUT MTD-790-00219A
...
27
HANDLE SUPPORT BRACKET MTD-790-00248E-0637
...
28
Speed Shift Lever MTD-790-00313A-0637
...
29
CHUTE CABLE GUIDE (B&S Engine) MTD-747-04784A
...
30
SCREW 5/16-18 x .750 (B&S Engine) MTD-710-04484

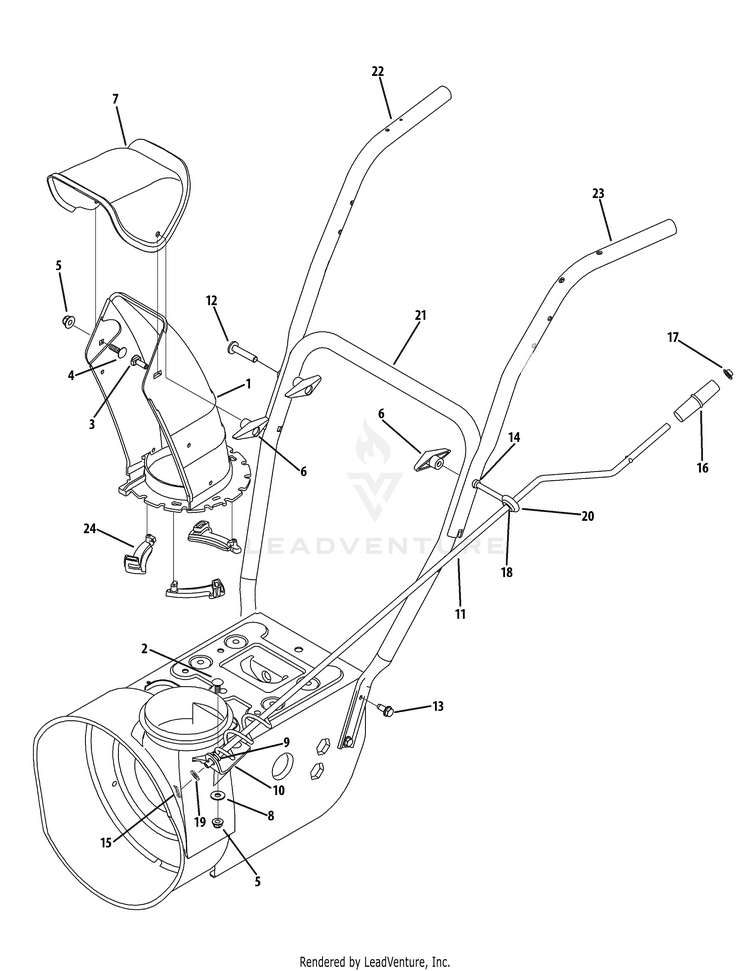

Standard 2 way Chute

...
...
1
Chute Assembly MTD-631-04131B
...
2
Carriage Screw, 5/16-18 x 1.00 MTD-710-0276
...
3
Carriage Bolt, 5/16-18 x 1.00 MTD-710-04071
...
4
Carriage Bolt, 5/16-18 x .750 MTD-710-0451
...
5
Flange Lock Nut, 5/16-18 MTD-712-04063
...
6
Wing Knob MTD-720-0284
...
7
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
8
Flat Washer, .349 x .879 x .063 MTD-736-0159
...
9
BUSHING .380 ID MTD-941-0475
...
10
Chute Crank Bracket MTD-784-5647-0637
...
11
CHUTE CRANK ASSEMBLY MTD-684-04104-0637
...
12
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
13
SCREW 5/16-18 x .750 MTD-710-04484
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Cotter Pin, .072 x 1.13 MTD-714-0104
...
16
Chute Crank Knob MTD-720-0201A
...
17
Push Rod Cap, 3/8 MTD-726-0100
...
18
Rubber Grom., .44 ID x .94 OD x .50 MTD-735-0234
...
19
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
20
EYEBOLT MTD-747-0697
...
21
Lower Handle MTD-749-04138A
...
22
Upper Handle, RH MTD-749-04190A
...
23
Upper Handle, LH MTD-749-04191A
...
24
Chute Flange Keeper MTD-731-04869A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
