Yard Machines 31AS63EF729 (2011) Snow Thrower

Model: 31AS63EF729 (2011)

Back To Assemblies

Save Part Not Listed?
product name

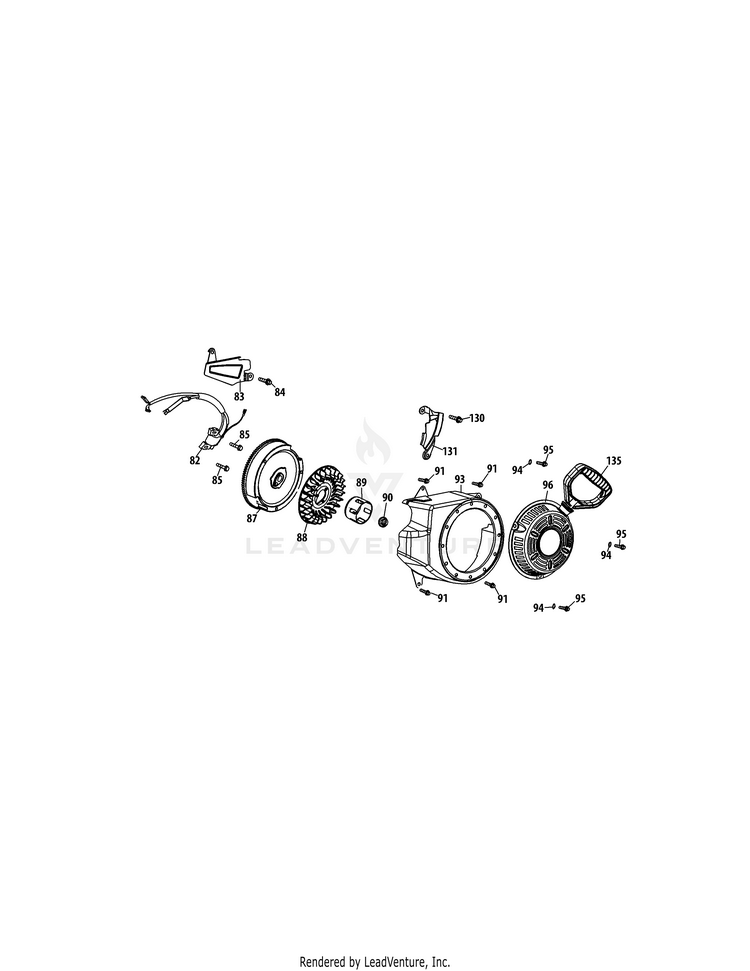

270-SU-11 Flywheel & Blower Housing

...
...
82
Ignition Module MTD-951-10646A
...
83
Air Flow Shield MTD-951-11110
...
84
Bolt M6×10 MTD-710-04940
...
85
Bolt M6×25 MTD-710-04919
...
87
FLYWHEEL MTD-751P12416A
...
88
COOLING FAN MTD-951-10909B
...
89
Pulley, Starter MTD-951-10911
...
90
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
91
Bolt M6×12 MTD-710-04915
...
93
FAN COVER ASSEMBLY MTD-951-12644
...
94
FLAT WASHER MTD-736-04455B
...
95
Bolt M6×10 MTD-710-04974
...
96
Recoil Starter MTD-951-14151
...
130
Bolt M6×18 MTD-710-04979
...
131
Blower Housing Shield MTD-951-11109
...
135
Recoil Starter Handle MTD-731-05696
