Yard Machines 31AS63EF700 (2011) Snow Thrower

Model: 31AS63EF700 (2011)

Back To Assemblies

Save Part Not Listed?
product name

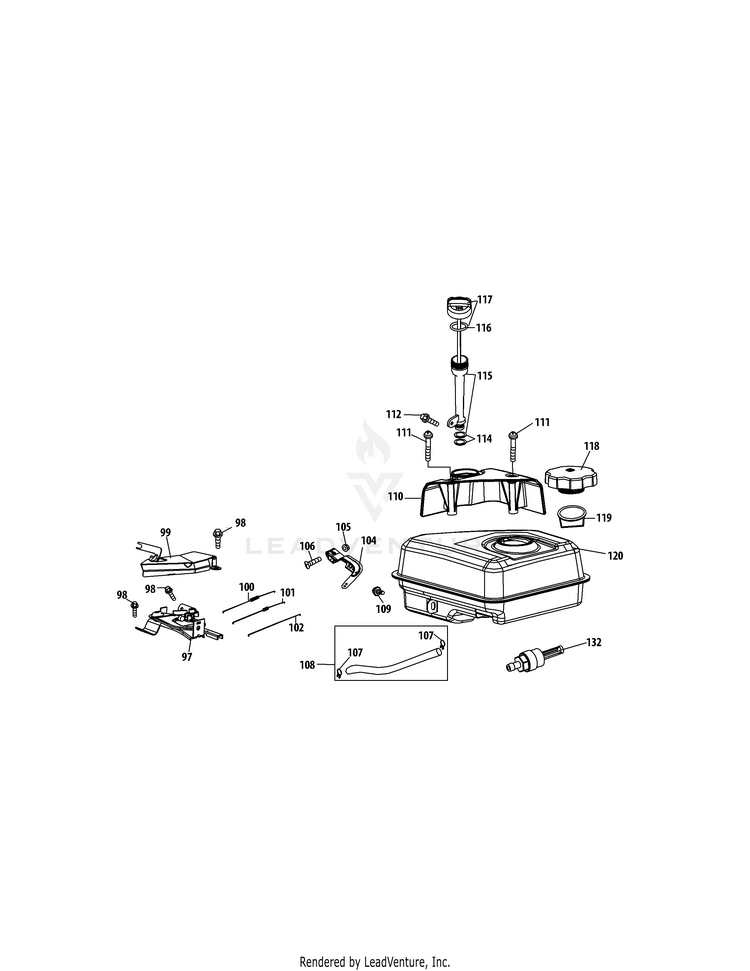

270-SU-11 Fuel Tank & Mounting

...
...
97
Throttle Control Assemlby MTD-951-10758
...
98
Bolt M6×12 MTD-710-04915
...
99
Governor System Shield MTD-951-11108
...
100
Governor Spring MTD-951-11935
...
101
THROTTLE SPRING MTD-751P10664A
...
102
THROTTLE LINKAGE MTD-751P10665A
...
104
Governor Arm MTD-951-11106
...
105
Nut M6 MTD-712-05015
...
106
Governor Arm Bolt MTD-710-04908
...
107
CARBURETOR HOSE CLAMP MTD-951-11700A
...
108
Fuel Line Kit MTD-951-10650
...
109
Bolt M6×12 MTD-710-04915
...
110
ENGINE/DIPSTICK COVER MTD-951-10662
...
111
Bolt MTD-710-04905
...
112
Bolt M6×12 MTD-710-04915
...
114
Oil Fill Tube O-Ring MTD-951-11381
...
115
Oil Fill Tube Assembly MTD-951-11913
...
116
Dipstick O-Ring MTD-951-11904
...
117
Dipstick Assembly MTD-951-12482
...
118
Fuel Cap Assembly MTD-951-12533
...
119
Fuel Level Indicator MTD-951-11933
...
120
Fuel Tank Assembly MTD-951-10653B
...
132
Fuel Tank Filter/Nipple MTD-951-10651
