Yard Machines 31AS250-800 (2007) Snow Thrower

Model: 31AS250-800 (2007)

Back To Assemblies

Save Part Not Listed?
product name

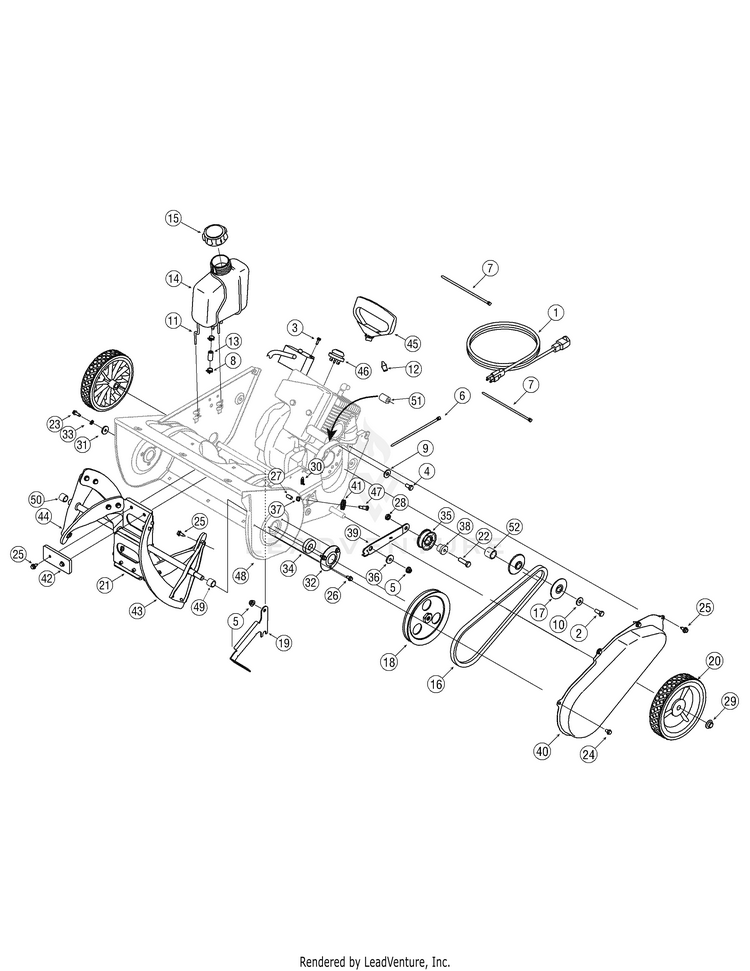

Drive Assembly

...
...
1
2 PRONG EXTENSION CORD MTD-629-0236
...
2
Hex L-Bolt 5/16-24 x .75 Gr. 5 MTD-710-0627
...
3
Special Screw, #10-16 x .625 MTD-710-04669
...
4
SCREW 5/16-18 x 1.5 LG 98 cc Tec. only MTD-710-0805A
...
4
Screw-Hex Cap 5/16-18 x .625 Gr. 5 139 cc Tec. Only MTD-710-3025
...
5
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
6
Cable Tie MTD-725-0157
...
7
Push Mount Cable Tie MTD-926-0154
...
8
Hose Clamp MTD-726-0205
...
9
Lock Wash. 5/16" I.D. MTD-936-0119
...
10
Cupped Washer .340 ID x .872 OD x .06 MTD-736-0242
...
11
SUPPORT WIRE MTD-747-04150
...
12
CONTROL KNOB MTD-TC-35511
...
13
Fuel Line MTD-751-0535
...
14
FUEL TANK 2 QUART MTD-951-10023
...
15
FUEL CAP MTD-751-10487C
...
16
Wheel Drive Belt 98 cc Tec. only MTD-954-0367
...
16
V-Belt 1/2 x 35.0" Lg. 139 cc Tec. Only MTD-954-0101A
...
17
Pulley Half, .625 x 2.25 MTD-956-0416B
...
18
V-TYPE PULLEY 3/8 98 cc Tec. only MTD-756-04243
...
18
V-Pulley 1/2 x 6,0" OD 139 cc Tec. Only MTD-756-04232
...
19
ENGINE BRACKET MTD-790-00225-0637
...
20
Wheel, 7 x 1.50 dia. Lug MTD-734-04070
...
21
Auger Assembly MTD-984-04253-0637
...
22
Hex Screw 1/4-20 x 1.25 Gr. 5 MTD-710-0106
...
23
Thd Forming Scr. 1/4-20 x .75 Lg. MTD-710-0642
...
24
Hex Wash HD Tapp Scr 1/4-20 x .375 MTD-710-0653
...
25
Hex B-Tap Scr 1/4-28 x .25" Lg MTD-710-0896
...
26
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
27
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
28
Flange Locknut 1/4-20 Gr. F, Nylon MTD-712-04064
...
29
Push Cap x 1/2" Rod MTD-726-0299
...
30
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
31
Flat Washer .25 ID x .93 OD x .125 MTD-736-0176
...
32
Bearing Cup MTD-790-00249-0637
...
33
L-Wash. 1/4" I.D. MTD-936-0329
...
34
Ball Bearing .625 x 37 x 12.63 MTD-741-04188A
...
35
Idler Pulley (1/4" hole) MTD-684-04168
...
36
Shoulder Spacer .25 Thk. MTD-748-0234
...
37
Hex Ins Jam L-Nut 1/4-28 MTD-712-0896
...
38
Shoulder Spacer MTD-750-04571
...
39
Idler Bracket MTD-790-00238A-0637
...
40
BELT COVER SINGLE STAGE MTD-790-00045C
...
41
Cable Guide Roller MTD-756-0625
...
42
Rubber Paddle MTD-735-04033
...
43
Rubber Spiral-Crescent MTD-735-04032
...
44
Auger Assembly MTD-684-04252-0637
...
45
HANDLE-MITTEN GRIP MTD-7510009636
...
46
Primer MTD-TC-570682A
...
47
Hex Shld.Scr.1/4-28 x .375 MTD-738-0924A
...
48
21" AUGER HOUSING MTD-684-04227
...
49
Auger Spacer LH 98 cc Tec. only MTD-750-04757
...
50
Auger Spacer RH 98 cc Tec. only MTD-750-04758
...
51
Spacer.325" I.D. 98 cc Tec. only MTD-950-0589
...
52
SPACER 98 cc Tec. only MTD-750-0716A
