Yard Machines 31AS230-700 (2005-2) Snow Thrower

Model: 31AS230-700 (2005-2)

Save Part Not Listed?
product name

Accessories

...
...
xx
Electric Start Kit (fits models with a two-cycle Tecumseh 3 HP or 3.5 HP) MTD-OEM-390-697
...
xx
STARTER KI MTD-OEM-390-996
...
xx
OIL:50:1 2 CYCLE MTD-490-000-0047
...
xx
Shave Plate (includes replacement shave plate and hardware) MTD-753-0451
...
xx
AUGER SERVICE KIT MTD-753-04472

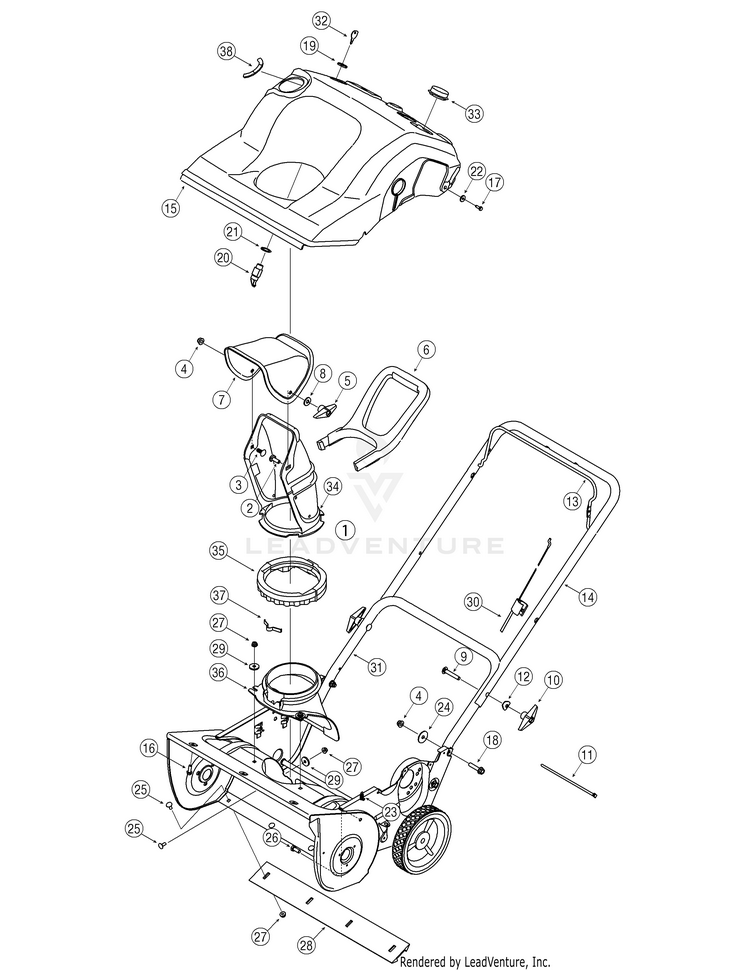

Chute & Handle Assembly

...
...
1
CHUTE ASSEMBLY:LOWER MTD-984-04127
...
2
Carriage Bolt 5/16-18 x 1.0" MTD-710-04071
...
3
Carriage Bolt 5/16-18 x 0.750" MTD-710-0451
...
4
Flange Lock Nut, 5/16-18 MTD-712-04063
...
5
Chute Knob Assembly MTD-720-0284
...
6
Chute Handle MTD-731-04388A
...
7
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
8
Washer MTD-736-0159
...
9
Carriage Bolt 5/16-18 x 2.0 Gr. 1 MTD-710-0487
...
10
Handle Knob Assembly 5/16-18 MTD-720-0284
...
11
Cable Tie MTD-725-0157
...
12
Saddle Washer .320 x .93 MTD-736-0451
...
13
Bail Control MTD-747-04165-0637
...
14
Upper Handle, Gull Wing MTD-749-1092A
...
15
SHROUD ASSEMBLY (Model S230) MTD-984-04044
...
15
SHROUD ASSEMBLY (Model 240) MTD-984-04043
...
16
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
17
Special Screw, #10-16 x .625 MTD-710-04669
...
18
Hex Flange Screw 5/16-18 x 1.50 Gr. 5 MTD-710-1882
...
19
Hex Nut 5/8-32 x .12 Special MTD-712-0252
...
20
KEY SWITCH MTD-925-2018
...
21
Lock Washer Internal .625 x 1.058 MTD-736-0225
...
22
Flat Washer .194" x .62" x .063 MTD-736-0400
...
23
Extension Spring MTD-732-0357A
...
24
Flat Washer .330 x 1.25 x .06 MTD-736-0362
...
25
Screw, 1/4-20 x .62 MTD-710-0134
...
26
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
27
Hex Flange Lock Nut, 1/4-20 MTD-712-04064
...
28
Shave Plate,19.88 MTD-731-1033
...
29
Flat Washer .265 x .938 x .120 MTD-736-0176
...
30
Control Cable MTD-946-04237
...
31
LOWER HANDLE MTD-749-04114B
...
32
Key MTD-925-0201
...
33
SPARK PLUG CAP MTD-731-1133C
...
34
Lower Chute 5" Dia MTD-931-04127
...
35
Ring-Lower Chute MTD-931-04353
...
36
Chute Adapter 5" Dia MTD-931-04886
...
37
Chute Adjustment Spring MTD-932-04111
...
38
Strip Trim MTD-731-0511

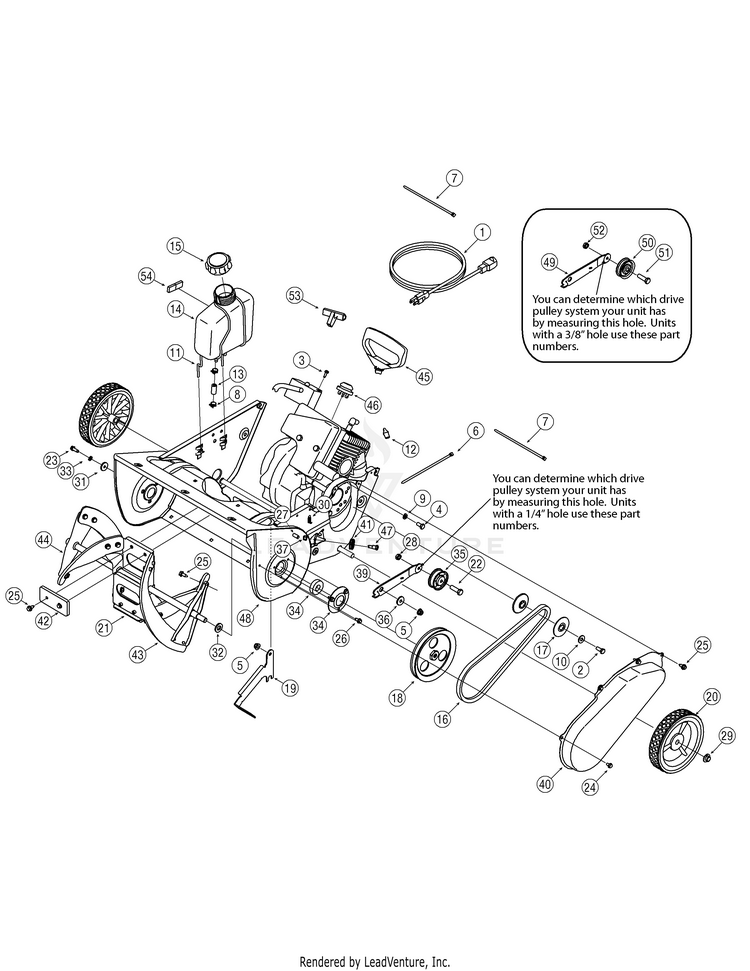

General Assembly

...
...
1
2 PRONG EXTENSION CORD MTD-629-0236
...
2
Hex Screw, 5/16-24 x .75 MTD-710-0627
...
6
Special Screw, #10-16 x .625 MTD-710-04669
...
4
Hex Screw, 5/16-18 x .625 use with 1/2 inch belt MTD-710-3025
...
4
SCREW 5/16-18 x 1.5 LG use with 3/8 inch belt MTD-710-0805A
...
5
Hex Flange Lock Nut, 5/16-18 MTD-712-04063
...
6
Push Mount Cable Tie MTD-725-0157
...
7
Push Mount Cable Tie MTD-926-0154
...
8
Clamp, Hose MTD-726-0205
...
9
Lock Wash. 5/16" I.D. MTD-936-0119
...
10
Flat Washer .349 x .879 x.063 MTD-736-0159
...
11
SUPPORT WIRE MTD-747-04150
...
12
CONTROL KNOB MTD-TC-35511
...
13
FUEL HOSE 1/4-24" MTD-751-22813-24
...
14
FUEL TANK 2 QUART MTD-951-10023
...
15
FUEL CAP MTD-751-10487C
...
16
V-Belt 1/2 x 35.0" Lg. use with 756-0475 pulley MTD-954-0101A
...
16
Wheel Drive Belt use with 756-0550 pulley MTD-954-0367
...
17
Pulley Half, .625 x 2.25 MTD-956-0416B
...
18
Pulley, 1/2 V 1/2-20 LH x 6.0 use with 754-0101A belt MTD-756-0475
...
18
PULLEY-6.0 OD x 3/8 use with 754-0367 belt MTD-756-0550
...
19
ENGINE BRACKET MTD-790-00225-0637
...
20
Wheel, 7 x 1.61 Dia. Tread MTD-734-04070
...
21
AUGER ASSEMBLY MTD-984-04027A
...
22
Hex Screw, 1/4-20 x 1.00 Gr. 5 MTD-710-0106
...
23
Hex Screw 1/4-20 x .75 Gr. 5 MTD-710-0642
...
24
Self-tapping Screw 1/4-20 x .375 MTD-710-0653
...
25
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
26
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
27
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
28
Hex Flange Lock Nut, 1/4-20 MTD-712-04064
...
29
Push Cap, 1/2" MTD-726-0299
...
30
Extension Spring MTD-732-0357A
...
31
Flat Washer .265 x .938 x .120 MTD-736-0176
...
32
Flat Washer .510 x 1.0 x .125 MTD-736-0326
...
33
L-Wash. 1/4" I.D. MTD-936-0329
...
34
BALL BEARING MTD-941-0600
...
35
Idler Pulley (Pulley hole 1/4") Idler Pulley (Pulley hole 1/4") MTD-684-04168
...
36
Shoulder Spacer .25 MTD-748-0234
...
37
Hex Lock Nut 1/4-28 MTD-712-0896
...
38
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
39
Idler Bracket Idler Brkt. w/Brake (Pulley hole 1/4") MTD-790-00238A-0637
...
40
BELT COVER SINGLE STAGE MTD-790-00045C
...
41
Cable Roller MTD-756-0625
...
42
Rubber Paddle MTD-735-04033
...
43
Crescent Spiral MTD-735-04032
...
44
AUGER ASSEMBLY MTD-984-04027A
...
45
HANDLE-MITTEN GRIP MTD-7510009636
...
46
Primer MTD-TC-570682A
...
47
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
48
21" AUGER HOUSING MTD-684-04167
...
49
Idler Bracket Idler Brkt. w/ Brake (Pulley hole 3/8") MTD-790-00238A-0637
...
50
Idler Pulley (3/8" hole) Idler Pulley (3/8" hole) MTD-756-0313
...
51
Hex Screw 3/8-24 x 1.25 MTD-710-0191
...
52
Jam Lock Nut 3/8--24 MTD-712-0116
...
53
HANDLE-REC MTD-7519630
...
54
FOAM TAPE .625 WIDE x .25 THK BULK MTD-722-3022A-12
...
xx
Spacer.325" I.D. not shown MTD-950-0589
...
xx
SPACER not shown MTD-750-0716A
