Yard Machines 31AH65FH700 (2012) Snow Thrower

Model: 31AH65FH700 (2012)

Back To Assemblies

Save Part Not Listed?
product name

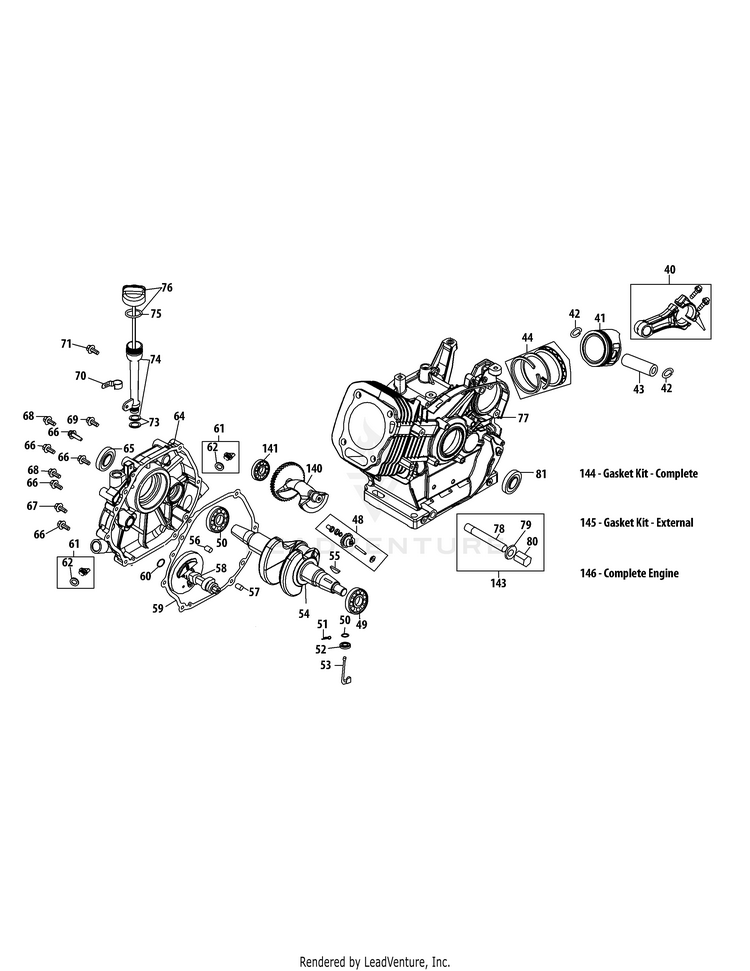

483-SUB Crankcase

...
...
40
Connecting Rod Assembly MTD-951-11951
...
41
Piston MTD-951-11952
...
42
PISTON PIN SNAP RING MTD-951-11953A
...
43
PISTON PIN MTD-951-11954A
...
44
Piston Ring Set MTD-951-12579
...
48
Governor Gear/Shaft Assembly MTD-951-11956
...
49
BEARING MTD-951-11373
...
50
Flat Washer MTD-736-04453
...
51
Governor Shaft Clip MTD-714-04077
...
52
Governor Seal MTD-951-11958
...
53
GOVERNOR ARM SHAFT MTD-951-11365
...
54
CRANKSHAFT KIT (Inc.49,54,55,65,81) MTD-951-11342
...
55
WOODRUFF KEY MTD-751P10307A
...
56
Dowel Pin 9 X 12 MTD-715-04102
...
57
DOWEL PIN 9 X 14 MTD-715-04096A
...
58
CAMSHAFT MTD-951-11959B
...
59
Crankcase Cover Gasket MTD-951-11376
...
60
WASHER MTD-736-04545
...
61
Oil Fill Plug Assembly MTD-951-11345
...
62
O-RING 15.8 x 2.5 MTD-951-11577
...
64
CRANKCASE COVER ASSEMBLY MTD-951-14220A
...
64
Crankcase Cover Kit (Inc.49,59,60,64-68) MTD-951-11340A
...
65
OIL SEAL MTD-951-11375A
...
66
Bolt M8×38 MTD-710-06061
...
67
SCREW M8-1.25 x 45 GR10.9 MTD-710-06062
...
68
Bolt M8×35 MTD-710-06063
...
69
Bolt M6×16 MTD-710-04968
...
70
OIL TUBE SUPPORT BRACKET MTD-951-11320
...
71
BOLT M6-1 x 8 GR8.8 MTD-710-05349
...
73
Oil Fill Tube O-Ring MTD-951-11381
...
74
Oil Fill Tube Assembly MTD-951-12073
...
75
Dipstick O-Ring MTD-951-11904
...
76
Dipstick Assembly MTD-951-11971A
...
77
CRANKCASE KIT (Inc.49,52,77,81) MTD-951-11341A
...
77
Short Block Assembly (Inc.40-44,48-68,77-81,102,105,106,108,110,111,125,131,132,140,141) MTD-951-11328B
...
78
OIL DRAIN PIPE MTD-951-11350A
...
79
FLAT WASHER MTD-736-04440A
...
80
Oil Drain Plug Bolt MTD-710-04906
...
81
OIL SEAL MTD-951-11499A
...
140
Balance Gear Assembly MTD-951-11968
...
141
Bearing MTD-951-11969
...
143
Oil Drain Asm MTD-951-10641
...
144
Gasket Kit - Complete (Inc.52,59,65,79,81,106,108,125,131-133) MTD-951-11330A
...
145
GASKET KIT (EXTERNAL) (Inc.79,108,125,131-133) MTD-951-11331
...
146
COMPLETE ENGINE 357cc MTD-952Z683-WUB
