Yard Machines 31AH64EG700 (2015) Snow Thrower

Model: 31AH64EG700 (2015)

Back To Assemblies

Save Part Not Listed?
product name

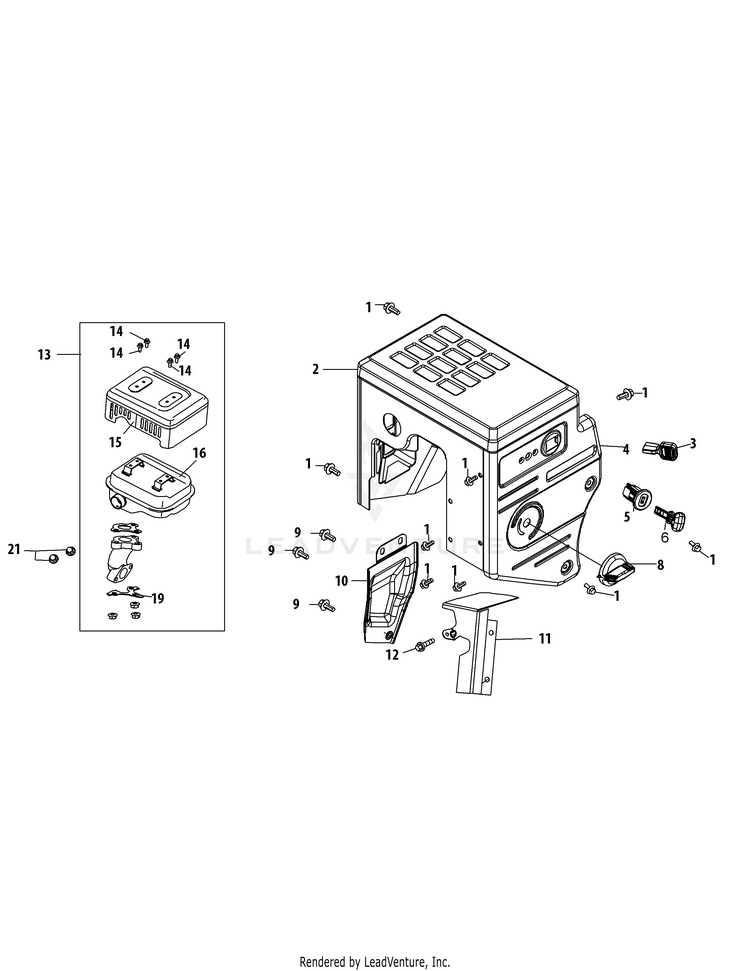

478-SUC Muffler & Controls

...
...
1
BOLT M6×12 MTD-710-04915
...
2
MUFFLER SHIELD MTD-951-11194
...
3
THROTTLE LEVER KNOB MTD-751P10757A
...
4
CONTROL PANEL MTD-951-11594
...
5
ENGINE SWITCH BASE MTD-951-10637
...
6
KEY MTD-951-10630
...
8
CHOKE KNOB MTD-951-11302
...
9
BOLT M6×10 MTD-710-04914
...
10
EXHAUST PIPE SHIELD MTD-951-11181
...
11
CARB ISOLATOR BRACKET MTD-951-11227
...
12
BOLT M6×16 MTD-710-04968
...
13
MUFFLER ASSEMBLY MTD-951-11195
...
14
BOLT MTD-710-05051
...
15
MUFFLER GUARD MTD-908-05051
...
16
MUFFLER BODY MTD-908-05020
...
19
NUT-RET EXHAUST BGBLK MTD-908-05052
...
21
NUT, M8 MTD-712-05059
...
xx
WEATHER SHIELD MTD-751-19189
