Yard Machines 31AH64EG700 (2015) Snow Thrower

Model: 31AH64EG700 (2015)

Back To Assemblies

Save Part Not Listed?
product name

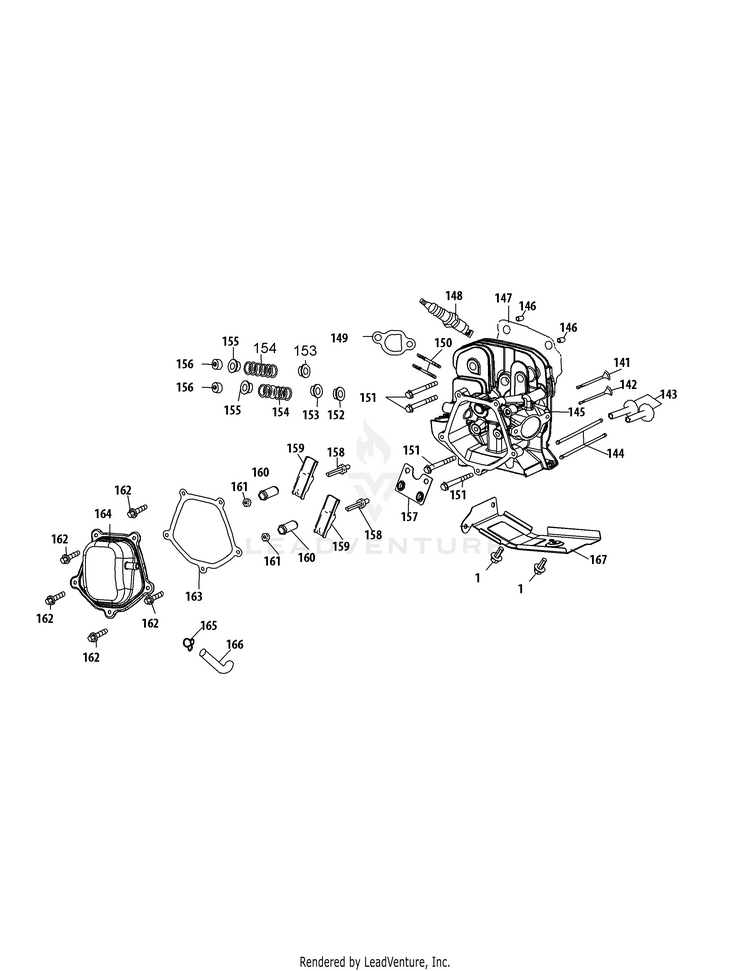

478-SUC Cylinder Head

...
...
1
BOLT M6×12 MTD-710-04915
...
141
EXHAUST VALVE MTD-951-14204
...
142
Intake Valve MTD-951-14203
...
143
TAPPET MTD-951-11962A
...
144
PUSH ROD MTD-951-14205
...
145
Cylinder Head MTD-951-14206
...
146
DOWEL PIN 12×20 MTD-715-04097
...
147
GASKET, CYLINDER HEAD MTD-951-12076
...
148
SPARK PLUG/F6RTC MTD-951-10292A
...
149
MUFFLER GASKET MTD-951-11212A
...
150
STUD M8×48.5 MTD-710-04964
...
151
SCREW10-1.25 C 80 GR10.8 MTD-710-04973
...
152
INTAKE VALVE SEAL MTD-951-11964A
...
153
VALVE SPRING RETAINER MTD-951-12077A
...
154
VALVE SPRING MTD-951-12078
...
155
VALVE SPRING RETAINER MTD-951-12080
...
156
Exhaust Valve Adjuster MTD-951-12269
...
157
PUSH ROD GUIDE MTD-951-11965B
...
158
BOLT, PIVOT MTD-710-04962
...
159
ROCKER ARM MTD-951-11966
...
160
ADJUSTING NUT ,VALVE MTD-751-11123
...
161
NUT, PIVOT LOCKING MTD-751-11124
...
162
VALVE COVER BOLT MTD-710-05054
...
163
VALVE COVER GASKET MTD-951-11967
...
164
VALVE COVER MTD-951-11220
...
165
BREATHER HOSE CLAMP MTD-726-04101
...
166
Breather Hose MTD-951-14982
...
167
CYLINDER BAFFLE MTD-951-11180
