product name

Yard Machines 31AE880H352 (1998) Snow Thrower

Model: 31AE880H352 (1998)

Save Part Not Listed?
product name

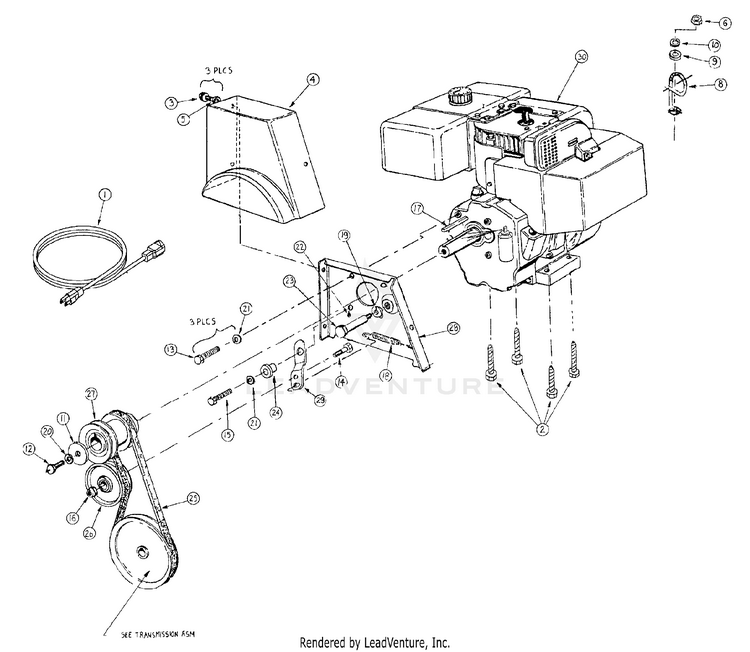

Belt Drive

...
...
1
3-Prong Extension Cord MTD-929-0071B
...
2
Hex L-wash Tt Scr 3/8-16 X 1.25 MTD-710-0502A
...
3
Hwhd 5/16-18 X 1/2 Thd Roll Zn MTD-710-0607
...
4
Belt Cover - Pierced MTD-731-0321-1
...
5
Fl-wash .344 ID X .625 OD X .063 MTD-736-0264
...
6
UNKNOWN MTD-NA
...
8
UNKNOWN MTD-NA
...
9
UNKNOWN MTD-NA
...
10
UNKNOWN MTD-NA
...
11
FLAT WASHER .395ID 1 MTD-07386
...
12
Scr Hex Cap 3/8-24 X 1. Gd 8 MTD-710-0191
...
13
Scr Hex Cap 5/16-24 X .62 Gd 5 MTD-710-0237
...
14
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
15
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
16
Hex Ins L-nut 3/8 - 24 MTD-712-0116
...
17
Square Key 1/4 X 1.5 MTD-714-0118
...
18
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
19
L-wash 3/8 MTD-736-0169
...
20
Lock Washer 3/8 Heavy MTD-736-0217
...
21
Bell Wash .345 ID X .88 OD X .060 MTD-736-0242
...
22
Grease - Sunaplex 781 - 1/10 MTD-737-0157
...
23
Shoulder Scr .498 Dia X 3.245 Lg MTD-738-0982
...
24
Shldr Spcr .50 Dia X .14 Shldr MTD-748-0234
...
25
V-Belt 3/8 x 35.5 Lg. MTD-954-0131
...
26
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
27
Dbl Engine Pulley 3.25 & 2.75 MTD-756-0241B
...
28
BELT COVER BRACKET (POWDER BLACK) MTD-684-0123A-0637
...
29
DRIVE IDLER BRACKET MTD-784-5726
...
30
Engine MTD-NA

Drive

...
...
1
BRACKET-PIVOT AXLE MTD-05523
...
3
LEFT DRIVE DOGG ASSEMBLY MTD-918-0279A
...
5
DRIVE SHAFT ASSEMBLY MTD-918-0294E
...
6
FRICTION WHEEL ASSEMBLY MTD-918-0296B
...
xx
FRICTION WHEEL ASSEMBLY (Not Shown); For 618-0296 Wheel Assembly MTD-918-0296B
...
7
SUPPORT ASSEMBLY (POWDER BLACK) MTD-684-0115-0637
...
8
ARM ASSEMBLY-SHIFT MTD-684-0116
...
9
Shft Asm Rod MTD-684-0117
...
10
AUGER ACTUATOR BRACKET (POWDER BLACK) MTD-684-0118B-0637
...
11
ACTUATOR BRACKET (POWDER BLACK) MTD-684-0119B-0637
...
12
FRAME ASSEMBLY MTD-684-0120
...
13
32T SPROCKET ASSEMBLY MTD-684-0122
...
14
Hex Scr 5/16-18 X .75 MTD-710-0118
...
15
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
16
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
17
Hhcs 5/16-18 .625 Gr5 Lock MTD-710-0538
...
18
Scr tt 1/4-20 .5 Hxindwsh MTD-710-0599
...
20
Scr Hexwash 1/4-20 X 1.25 MTD-710-0809
...
21
Scr Tt Cl 1/4-20 .75 Hxindwsh MTD-710-0875
...
22
Scr Ab 1/4-14 .625 Hxindwsh MTD-710-0896
...
23
Hhcs 3/8-16 .880 Gr5 Std MTD-710-3001
...
24
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
25
HEX DRIVE SHAFT MTD-711-1191
...
26
ACTUATOR SHAFT MTD-711-1193
...
27
DRIVE SHAFT MTD-711-1265
...
28
Hex Nut 1/4-28 MTD-712-0138
...
29
HEX NUT MTD-712-0221
...
30
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
32
Hex Ins L-nut 5/16-18 MTD-712-0429
...
33
Hex Nut 3/8-16 MTD-712-0798
...
34
HEX NUT 5/16-18 MTD-712-3010
...
35
#41 Chain 1/2 Pitch X 36 L MTD-713-0284
...
36
#420 Chain 1/2 Pitch X 40 L MTD-713-0286
...
37
Spkt 10t #41 X .500 MTD-713-0413
...
38
Internal Cot-pin 1/2 Dia MTD-714-0101
...
39
Intern Cot-pin 5/16 Dia MTD-714-0104
...
40
Cotter Pin 1/8 Dia X 1 MTD-714-0115
...
41
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
42
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
43
Plate, Drive MTD-917-0302
...
45
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
46
Spring MTD-932-0209
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
Lock Washer 5/8 MTD-736-0158
...
49
Wash Fl .531 ID X .930 OD X .05 MTD-736-0160
...
50
Wash Fl 1.03 ID X 1.62 OD MTD-736-0163
...
51
Wash Flt 1/4 ID X .930 OD X .12 MTD-736-0176
...
52
Wash Flt .640 ID X 1.24 OD X .06 MTD-736-0187
...
53
Lock Washer 3/8 Heavy MTD-736-0217
...
54
Bell Wash .345 ID X .88 OD MTD-736-0242
...
55
FLAT WASHER MTD-736-0275
...
56
L-Wash. 1/4" I.D. MTD-936-0329
...
57
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
58
Drive Plate Spindle MTD-738-0279
...
59
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
60
BEARING HOUSING ASSEMBLY MTD-741-0163A
...
61
Flange Bearing w/ Flats MTD-941-0170
...
62
BALL BEARING MTD-941-0563
...
63
HEX FLANGE BEARING MTD-941-0597
...
64
Auger Cable MTD-946-0951A
...
65
SPACER MTD-750-1147
...
66
DRIVE CLUTCH ROD MTD-747-0973
...
67
SPACER-SPLIT .64X. MTD-750-1097
...
68
SPLIT SPACER MTD-750-0903B
...
69
Spacer MTD-950-0997
...
70
1/2 V-pulley .62 ID X 7.5 MTD-756-0344
...
71
Cable Guide Roller MTD-756-0625
...
72
FRAME SUPPORT MTD-784-0377-0637
...
73
COVER FRAME UPPER MTD-784-0383
...
74
LOWER FRAME COVER MTD-784-0380
...
75
AUGER CABLE GUIDE MTD-784-0384-0637
...
76
Shift Bracket Frame MTD-784-5590
...
77
Klick Pin Ass'y MTD-714-0151A
...
78
AXLE 1"ODX28.35LG MTD-738-0984
...
79
WHEEL ASSEMBLY 16 x 6 MTD-734-1593A
...
xx
TIRE-SNOW HOG-16X6 MTD-734-1525
...
xx
TUBELESS VALVE MTD-934-0255
...
xx
RIM ASSEMBLY MTD-734-1124A
...
xx
BEARING MTD-741-0246

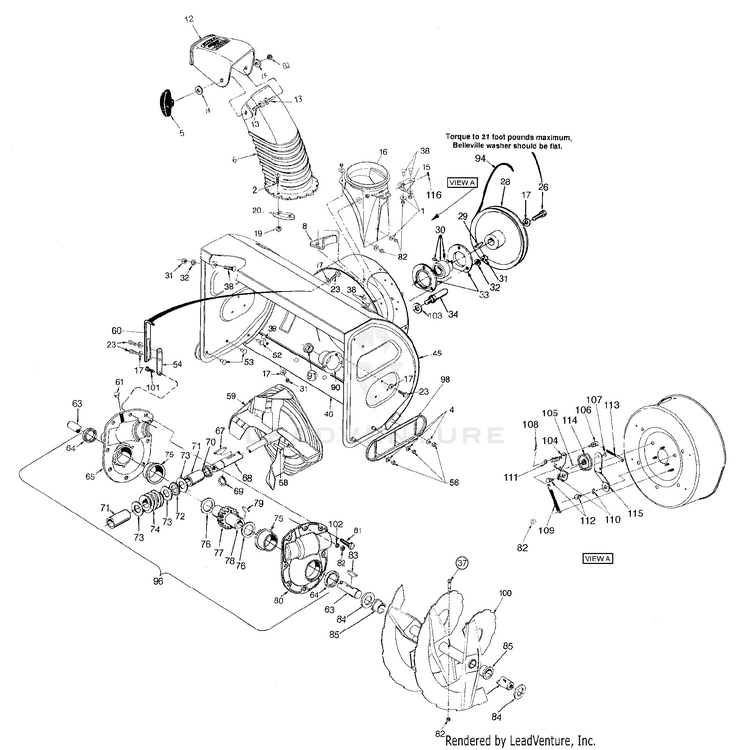

General Assembly

...
...
1
Flat Washer .344 ID x .875 OD MTD-736-0159
...
2
Truss. Hd. Mach. Scr. 1/4-20 x .75 MTD-710-3015
...
4
Belleville washer MTD-736-0105
...
5
Handle knob Ass'y MTD-720-0284
...
6
Chute, Lower MTD-731-0903E
...
8
CHUTE BRACKET MTD-784-5711-0637
...
12
Chute, Upper, 6.0 MTD-731-0846C
...
13
Carriage Bolt 5/16-18 x 1.00" Lg MTD-710-0276
...
14
Flat Washer .344 ID x .875 OD MTD-736-0159
...
15
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
16
Chute Adapter MTD-731-1696B
...
17
Bell. Washer .345 ID x .88 OD x .06 MTD-736-0242
...
19
LOCK NUT 1/4 MTD-912-3027
...
20
Chute Flange Keeper MTD-731-0851A
...
23
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
26
SCREW 5/16-18 x .750 MTD-710-1880
...
28
1/2" V-Pulley .875 ID x 10.12 OD MTD-756-0243
...
29
#9 Hi-Pro Key 3/16 x 3/4 Dia HT MTD-714-0126
...
30
Self Aligning Brg. .875 I.D. MTD-941-0185
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
Lock Wash. 5/16" I.D. MTD-936-0119
...
33
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
34
Belt Keeper Studs 3/8-16 x 2.75 MTD-711-0640
...
37
UNKNOWN MTD-NA
...
38
Carriage Bolt 5.16-18 x .75 MTD-710-0451
...
45
30" AUGER HOUSING MTD-684-0092A
...
46
SHAVE PLATE-30" (POWDER BLACK) MTD-784-5715B-0637
...
52
Carriage Bolt 3/8-16 x 1.00 Gr. 5 MTD-710-3168
...
53
Carriage Bolt 3/8-16 x .75" Lg. MTD-710-0389
...
54
PLATE-SUPPORT MTD-784-5710-0637
...
56
Hex Jam Nut 3/8-16 MTD-712-0798
...
58
Spring Spiral Pin Heavy - 5/16 dia x 1.7 MTD-715-0118
...
59
IMPELLER ASSEMBLY(POWDER BLACK) MTD-684-0090B-0637
...
60
Gear Hsg. Support Brkt. MTD-784-5076-0637
...
61
Barbed Plug MTD-721-0325
...
63
SPIROL AXLE-30" MTD-738-0733B
...
64
Oil Seal 1.50" I.D. MTD-921-0146
...
65
GEAR HOUSING ASSEMBLY (RH) MTD-918-0246
...
67
#9 Hi-Pro Key 3/16 x 3/4 dia HT MTD-714-0126
...
68
Auger Drive Shaft MTD-711-1133
...
69
Snap Ring for .875 dia. shaft MTD-716-0111
...
70
Oil Seal .875" I.D. MTD-921-0145
...
71
Sleeve Brg. .875 I.D. MTD-941-0217
...
72
Thrust Bearing .88 ID x 1.44 OD x .078 MTD-741-0184
...
73
Flat Washer .88 ID x 1.4 OD x .125 MTD-736-0291
...
74
Double Threaded Worm-L.H. MTD-917-0299
...
75
Flange Brg. 1.5 ID x 1.75 OD x .80 MTD-741-0670
...
76
FLAT WASHER MTD-736-0266
...
77
Double Threaded Worm Gear MTD-917-1425
...
78
Worm Gear Shaft MTD-738-0275
...
79
#91 Woodruff Key 1/4 x 3/4 dia MTD-714-0135
...
80
Hsg Assy Auger LH (Inc. 40 & 70) MTD-918-0247
...
81
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
82
Hex Ins. L-Nut 5/16-18 MTD-712-0429
...
83
#91 Woodruff Key 1/4 x 3/4 dia MTD-714-0135
...
84
Flat Washer MTD-736-0250
...
85
Flange Bearing MTD-741-0494
...
?87
Shear Bolt 5/16-18 x 1.75 MTD-710-0891
...
90
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
91
Flange Bearing w/ Flats MTD-941-0170
...
94
V-Belt MTD-954-0222A
...
96
AUGER GEARBOX ASSEMBLY MTD-618-0436
...
98
Reversible Skid Shoe MTD-784-5697
...
100
30" SPIRAL ASSEMBLY (RH) MTD-684-04192
...
xx
30" SPIRAL ASSEMBLY (LH) MTD-684-04193
...
101
Hex Scr 5/16-18 x 1.25 MTD-710-0528
...
102
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
103
3/8 Sprg Lock Wash MTD-736-0169
...
104
Bracket Assy-Br MTD-918-0281A
...
105
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
106
Engagement Ferru MTD-911-0677
...
107
Hex Ins L-Nut 3/8-24 MTD-712-0116
...
108
Intern Cot-Pin 5.16 dia MTD-714-0104
...
109
Spr Extn .470 dia x 4.75 Lg MTD-732-0858
...
110
Wave Washer .66 ID x .88 OD MTD-736-0174
...
111
FLAT WASHER MTD-736-0275
...
112
Shld Scr .625 dia x .170 x .062 MTD-738-0281
...
113
AUGER IDLER ROD MTD-747-0980A
...
114
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
115
Bracket, Auger Idler MTD-784-0385D
...
116
BUSHING .380 ID MTD-941-0475

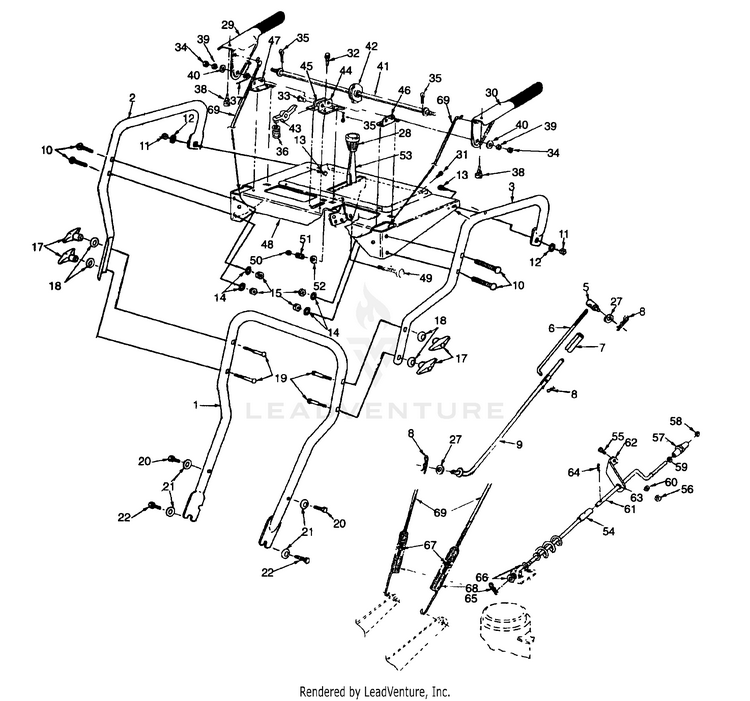

Handle Assembly

...
...
1
LOWER HANDLE MTD-749-0991
...
2
Handle Upper RH MTD-749-0990A
...
3
UPPER HANDLE (LH) (POWDER BLACK) MTD-749-0989A-0637
...
5
Engagement Ferru MTD-911-0677
...
6
SHIFT ROD MTD-747-0620A
...
7
Rod-Clutch Lock MTD-950-0963
...
8
Inter cot-pin 5/16 dia MTD-714-0104
...
9
Rod, Lower Shift MTD-747-0983A
...
10
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
11
HEX NUT 1/4-20 MTD-912-0287
...
12
SPRING WASHER BELL MTD-736-0270
...
13
Screw Hex Cap 1/4 -20 X . 75 GR 2 MTD-710-3015
...
14
Lock Wash. 5/16" I.D. MTD-936-0119
...
15
HEX NUT 5/16-18 MTD-712-3010
...
17
Wing nut MTD-720-0284
...
18
Bell Wash .345 ID x .88 OD x .060 MTD-736-0242
...
19
Carriage Bolt 5/16 - 18 x 2.5 MTD-710-0572
...
20
Hex Scr 3/8 - 16 x 1.75 MTD-710-0347
...
21
Bell Wash .40 ID x .88 OD x .06 MTD-736-0105
...
22
Hex Scr 3/8 - 16 x .75 MTD-710-0216
...
27
FLAT WASHER MTD-736-0275
...
28
Knob MTD-920-0232
...
29
CLUTCH HANDLE(RH) MTD-705-5218
...
30
CLUTCH HANDLE(LH) MTD-705-5219
...
31
Pan Head B-tapp Scr #10 X .5 MTD-710-0351
...
32
Hwhd Sf-tap Scr 1/4-20 X 1/2 zn MTD-710-0599
...
33
Clevis Pin .31 Dia X 1.0 MTD-711-0653
...
34
HEX NUT 5/16-18 MTD-712-3010
...
35
Cot-pin 3/32 Dia X 1.0 MTD-714-0111
...
36
Comp Spring .36 Dia X 1.0 Lg MTD-732-0145
...
37
Spring Torsion .44 ID MTD-732-0746
...
38
Rubber Bumper .63 Dia MTD-735-0199A
...
39
Lock Wash. 5/16" I.D. MTD-936-0119
...
40
Washer Spcl. .345 Sq. X .72 OD MTD-736-0509
...
41
Cam Rod MTD-747-0877
...
42
Clutch Lock Cam MTD-748-0362
...
43
Handle Lock Pawl MTD-948-0363
...
44
HANDLE BRACKET (LH) MTD-784-5679-0637
...
45
Brkt., Handle Support - RH MTD-784-5680-0637
...
46
Supt Brkt 3/8 Lh MTD-784-5681
...
47
Brkt., Handle Support - RH MTD-784-5682-0637
...
48
HANDLE PANEL ASSEMBLY MTD-684-0103A
...
49
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
50
Hex Ins L-nut 3/8-24 MTD-712-0116
...
51
Compression Spring .39 ID X .88 MTD-732-0193
...
52
Bell Wash .40 ID X .88 OD X .06 MTD-736-0105
...
53
KIT-SHIFT HANDLE:S MTD-753-05395
...
54
CHUTE CRANK ASSEMBLY(POWDER BLACK) MTD-684-0053B-0637
...
55
Hex Scr 1/4-20 X .75 Lg Gd5 MTD-710-3015
...
56
HEX NUT 1/4-20 MTD-912-0287
...
57
Chute Crank Knob Countersink MTD-720-0201A
...
58
Push Cap 3/8" Rod MTD-726-0100
...
59
Fl-Wash. MTD-936-0117
...
60
SPRING WASHER BELL MTD-736-0270
...
61
Rod, Chute Crank MTD-747-0624-0637
...
62
Bracket, Chute Crank MTD-705-5266-0637
...
63
BUSHING .380 ID MTD-941-0475
...
64
Internal Cot-pin 1/2 Dia MTD-714-0101
...
65
Inter cot-pin 5/16 dia MTD-714-0104
...
66
Fl-wash .406 ID X .74 OD X .063 MTD-736-0185
...
67
Hex Ins L-nut 1/4-20 MTD-712-0324
...
68
Extension Spring MTD-732-0184
...
69
DRIVE CLUTCH CABLE MTD-746P0952

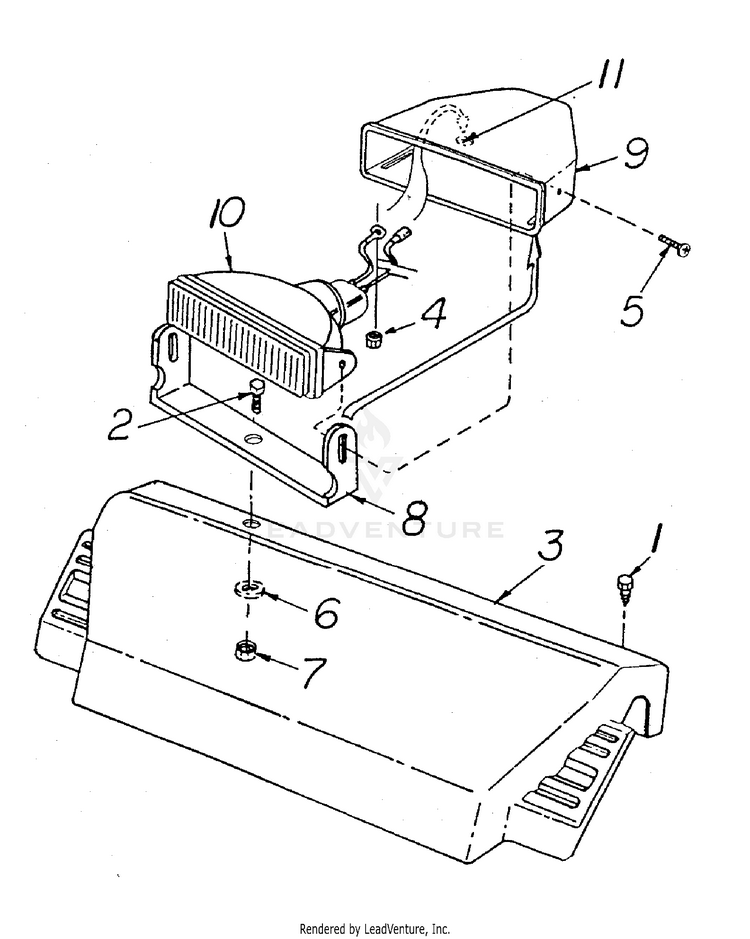

Headlight Assembly

...
...
1
Pan Head B-Tapp Screw #10 MTD-710-0351
...
2
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
3
HANDLE PANEL (BLACK) MTD-931-1393
...
4
Hex Sems Nut 1/4-20 MTD-712-0271
...
5
Phillips Pan Head Screw M 4 x 16 MTD-710-1240
...
6
Fl-Wash .344 ID x .88 OD MTD-736-0159
...
7
Hex Ins L-Nut 5/16-18 MTD-712-0429
...
8
LAMP MOUNT BRACKET MTD-705-5217
...
9
Halogen Lamp Housing MTD-731-1364
...
10
LAMP W/LENS ASSEMBLY MTD-925-1669P
...
xx
Halogen Light Wire Harness MTD-659-0059
...
xx
Lamp MTD-925-1658
...
11
GROMMET MTD-735-0225
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
