Yard Machines 31AE740F000 (2001) Snow Thrower

Model: 31AE740F000 (2001)

Save Part Not Listed?
product name

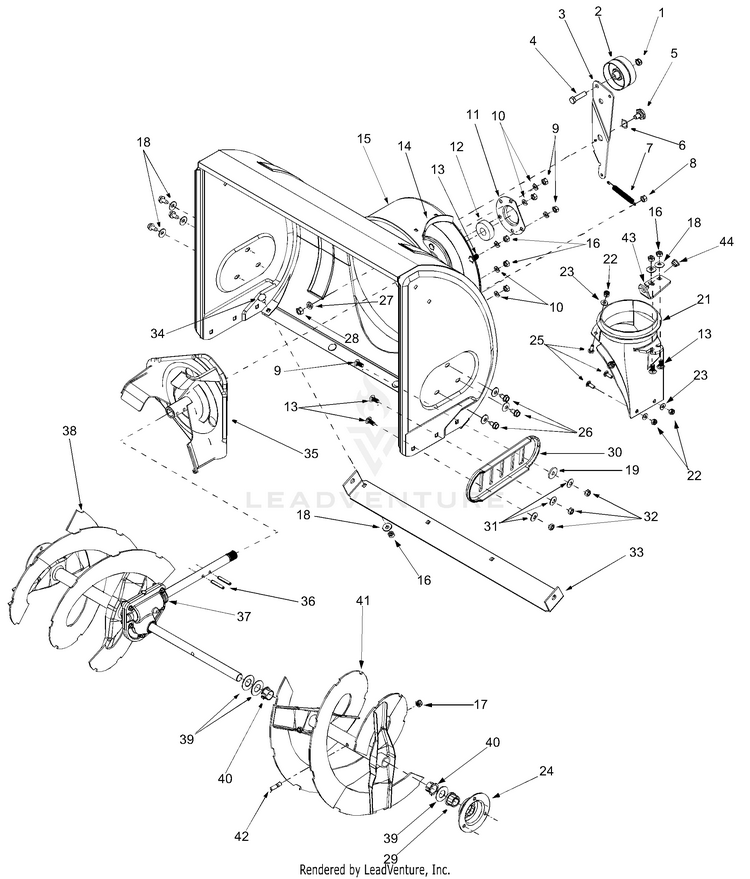

Blower Housing

...
...
1
Lock Jam Nut 3/8-24 MTD-712-0116
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
5
Shoulder Screw MTD-738-0281
...
6
Wave Washer MTD-936-0167
...
7
Ext. Spring 3.6" Lg. MTD-932-0611
...
8
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
9
Carriage Bolt, 5/16-18 x 1.00 MTD-710-0276
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Housing MTD-05931A
...
12
Flange Ball Bearing MTD-941-0309
...
13
Carriage Bolt, 5/16-18 x .75 MTD-710-0451
...
14
Chute Reinforcement MTD-705-5226
...
15
26" HOUSING ASSEMBLY MTD-684-0040D
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Lock Nut 5/16-18 MTD-712-0429
...
18
Belleville Washer MTD-736-0242
...
19
Flat Wshr, .344 ID x 1.125 OD MTD-736-0231
...
21
Adapter Chute MTD-731-1379D
...
22
Hex Lock Nut 1/4-20 MTD-712-0324
...
23
Flat Washer MTD-736-0463
...
24
Bearing Housing MTD-784-5618A-0637
...
25
Carriage Screw 1/4-20 x .75 MTD-710-0703
...
26
Screw, 5/16-18 x .625 MTD-710-0604A
...
27
Lock Washer 3/8 MTD-736-0169
...
28
Hex Nut 3/8-16 MTD-712-0798
...
29
Hex Flange Bearing MTD-941-0245
...
30
Skid Shoe MTD-784-5580
...
31
Bell Washer MTD-736-0242
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Shave Plate: Auger 26" MTD-790-00121-0637
...
34
Carriage Bolt 5/16-18 x 1.00 MTD-710-0451
...
35
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
36
Pin MTD-715-0114
...
37
Gear Assembly: Auger 26" MTD-918-0415B
...
38
Spiral Assembly: RH 26" MTD-684-04182-0637
...
39
Flat Washer MTD-736-0188
...
40
FLANGE BUSHING MTD-741-0493C
...
41
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04183-0637
...
42
Shear Bolt 5/16-18 x 1.5 MTD-710-0890A
...
43
Chute Crank Bracket MTD-784-5647-0637
...
44
BUSHING .380 ID MTD-941-0475

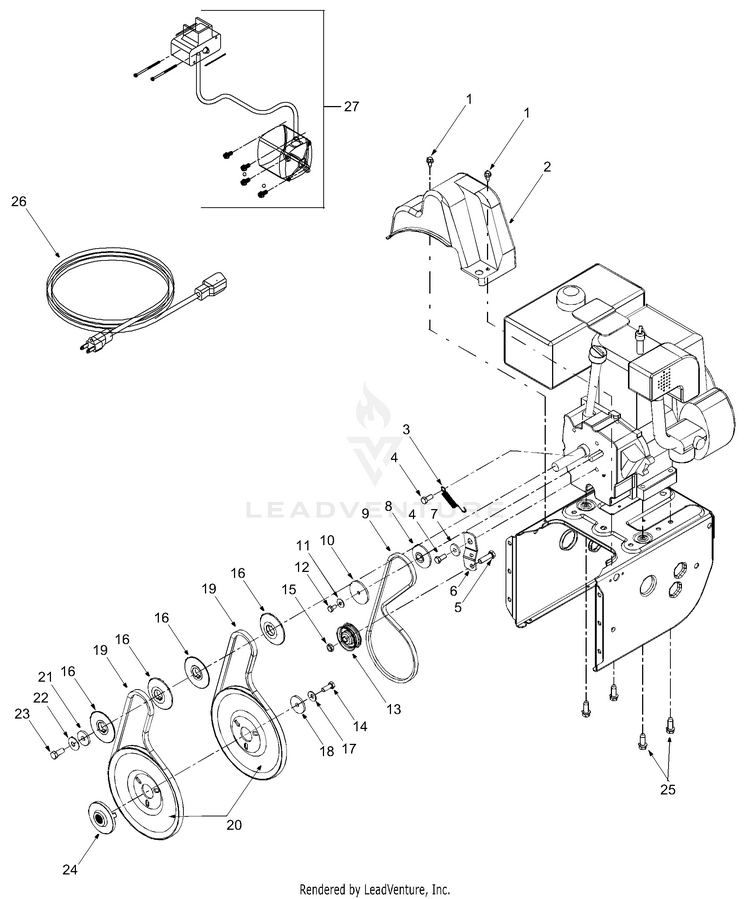

Engine & V-Belt

...
...
1
Hex Washer Screw 1/4-20 x .625 MTD-710-1652
...
2
Belt Cover MTD-731-1324
...
3
Extension Spring MTD-932-0710
...
4
Hex Screw 5/16-24 x .75 MTD-710-0627
...
5
Hex Cap Screw 3/8-16 x 1.25 MTD-710-3005
...
6
BRACKET-IDLR- MTD-05896A
...
7
Shoulder Spacer MTD-748-0234
...
8
HALF PULLEY MTD-756-0985
...
9
V - Belt MTD-954-0346
...
10
PULLEY-HAL MTD-756-0984
...
11
SPRING WASHER BELL MTD-736-0270
...
12
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
13
Flat Idler MTD-756-0313
...
14
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
15
Lock Jam Nut 3/8-16 MTD-712-0181
...
16
Pulley Half MTD-756-0569
...
17
Bell Washer MTD-736-0242
...
18
Flat Washer MTD-736-0505
...
19
BELT: 3V X 35.00 LG MTD-954-0430C
...
20
Auger Pulley MTD-756-0967
...
21
Flat Washer 3/8 x 1.25 OD MTD-736-0247
...
22
Bell Washer MTD-736-0331
...
23
Hex Cap Screw 3/8-24 MTD-710-0696
...
24
Adapter Pulley MTD-948-0360
...
25
Hex Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
3-Prong Extension Cord MTD-929-0071B
...
27
STARTER MOTOR MTD-TC-33329H

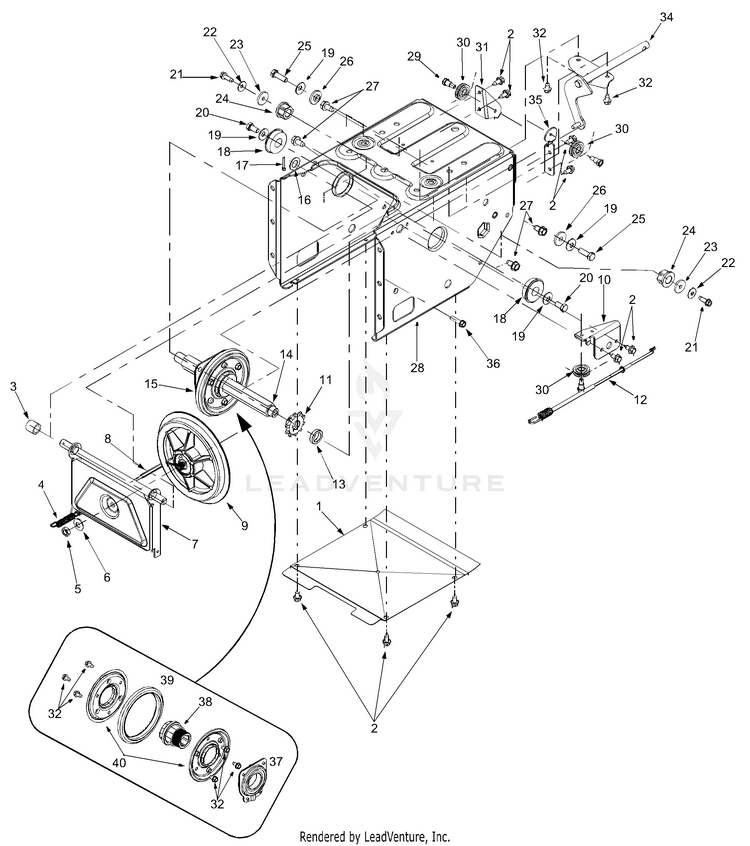

Frame

...
...
1
TRACK FRAME COVER (POWDER BLACK) MTD-784-5648A-0637
...
2
Tap Screw 1/4-20 x .625 MTD-710-1652
...
3
Spacer .508 ID x .75 OD MTD-748-0190
...
4
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
5
Jam Nut 3/8-24 MTD-712-0711
...
6
Bell Washer .401 ID x .87 OD MTD-736-0105
...
7
BRACKET ASSEMBLY MTD-984-0021-0637
...
8
Cable-Drive Clutch MTD-946-0898
...
9
Friction Wheel Disc Ass'y. MTD-956-0012A
...
10
GUIDE BRACKET MTD-784-5689A-0637
...
11
10T Sprocket MTD-713-0413
...
12
Cable-Auger Clutch MTD-946-0897
...
13
Spacer MTD-950-0997
...
14
DRIVE SHAFT MTD-711-1042
...
15
Wheel Assembly Friction MTD-984-0042C
...
16
Flat Washer .536 ID x .93 OD MTD-736-0160
...
17
Cotter Pin MTD-714-0474
...
18
BALL BEARING MTD-941-0563
...
19
Bell Washer .34 ID x .872 OD MTD-736-0242
...
20
Hex Cap Screw 5/16-18 x .625 MTD-710-0538
...
21
Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg. MTD-710-0642
...
22
SPRING WASHER BELL MTD-736-0270
...
23
Flat Washer 1/4 ID x .93 OD MTD-736-0176
...
24
Hex Flange Bearing MTD-741-1111
...
25
Hex Cap Screw 5/16-18 x 1" MTD-710-0643
...
26
Shoulder Spacer MTD-748-0234
...
27
Screw, 5/16-18 x .625 MTD-710-0604A
...
28
FRAME ASSEMBLY MTD-984-0031
...
29
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
30
Cable Roller MTD-756-0625
...
31
DRIVE GUIDE BRACKET MTD-784-5688
...
32
Tap Screw 1/4-20 x .5 MTD-710-0599
...
?33
Shift Frame Bracket MTD-784-5590
...
34
SHAFT ASSEMBLY (POWDER BLACK) MTD-684-0014B-0637
...
35
AUGER GUIDE BRACKET MTD-784-5687A
...
36
Tap Screw 1/4-20 x 1.250 MTD-710-0809
...
37
Friction Wheel Bearing MTD-618-0063A
...
38
Wheel Assembly Friction MTD-984-0042C
...
39
Rubber Only MTD-935-0243B
...
40
Wheel Assembly Friction MTD-984-0042C

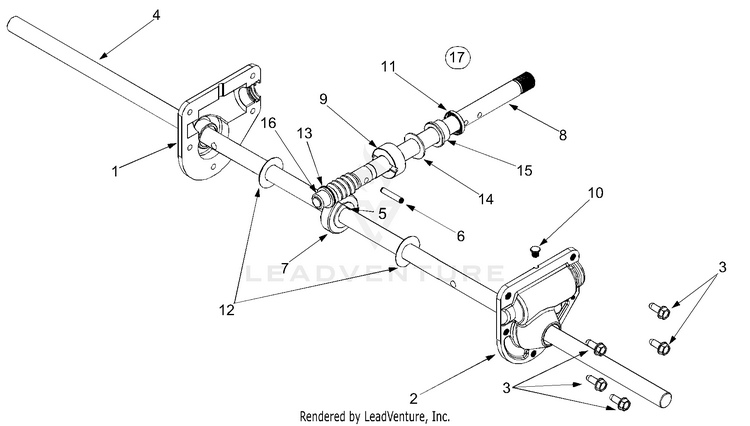

Gear Assembly

...
...
1
RH Housing MTD-918-0123A
...
2
LH Housing MTD-918-0124A
...
3
Self Tapping Screw, 1/4-20 x .75 MTD-710-0642
...
4
26"AUGER SHAFT MTD-711-0909A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Spring Spiral Pin, .25 x 1.25 MTD-715-0143
...
7
WORM GEAR 20T MTD-917-04861
...
8
IMPELLER SHAFT MTD-717P0526
...
9
Thrust Collar MTD-718-0186
...
10
Grease Plug MTD-721-0325
...
11
Grease Seal MTD-721-0327
...
12
Flat Washer, .76 x 1.5 x .030 MTD-736-0351
...
13
Flat Washer, .508 x 1.0 x .020 MTD-736-0369
...
14
Flat Washer, .76 x 1.5 x .060 MTD-736-0445
...
15
Flange Bearing, .75 x 1.0 x .59 MTD-741-0662
...
16
Flange Bearing, .503 ID x .75 OD MTD-741-0663
...
17
Gear Assembly: Auger 26" MTD-918-0415B

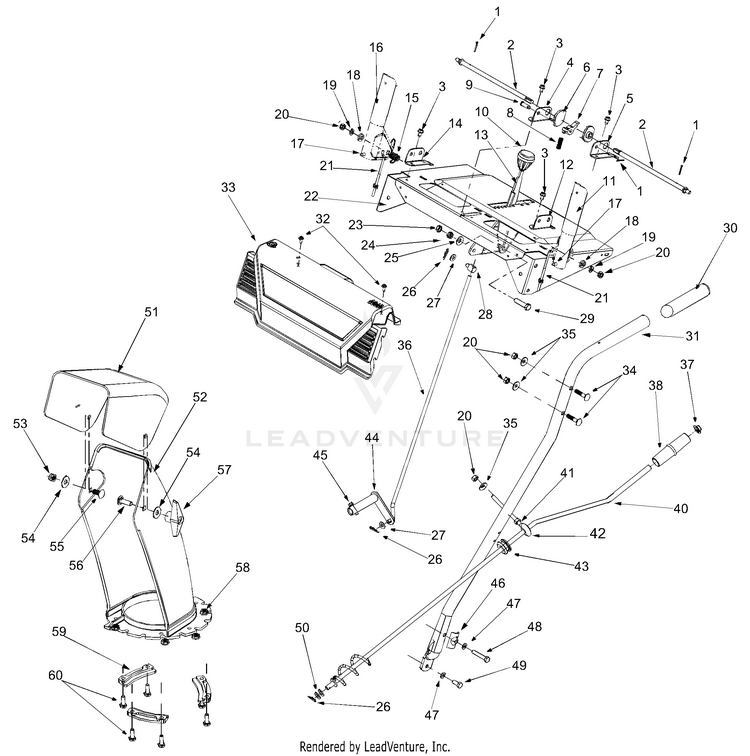

Handle Assembly & Chute

...
...
1
Cotter Pin MTD-714-0507
...
2
Rod MTD-747-0877
...
3
Hex Washer Screw 1/4-20 x .5 MTD-710-0599
...
4
Brkt., Handle Support - RH MTD-784-5680-0637
...
5
HANDLE BRACKET (LH) MTD-784-5679-0637
...
6
Cam Lock Handle MTD-748-0362
...
7
Handle Lock Pawl MTD-948-0363
...
8
Compression Spring MTD-732-0145
...
9
Clevis Pin MTD-711-0653
...
10
Knob MTD-920-0232
...
11
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
12
Handle Support Bracket - LH MTD-784-5681
...
13
KIT-SHIFT HANDLE:S MTD-753-05395
...
14
Brkt., Handle Support - RH MTD-784-5682-0637
...
15
Torsion Spring MTD-732-0746
...
16
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
17
Rubber Bumper MTD-735-0199A
...
18
Washer MTD-736-0509
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Cable "Z" Fitting MTD-946-0778
...
22
HANDLE PANEL ASSEMBLY MTD-684-0103A
...
23
Jam Lock Nut 3/8-24 MTD-712-0116
...
24
Compression Spring MTD-732-0193
...
25
Bell Washer MTD-736-0105
...
26
Cotter Pin MTD-714-0104
...
27
FLAT WASHER MTD-736-0275
...
28
Engagement Ferru MTD-911-0677
...
29
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
30
Grip MTD-720-0274
...
31
HANDLE (RH) MTD-749-0910C-0637
...
xx
HANDLE (LH) MTD-749-0911B
...
32
Special Screw, #10-16 x .625 MTD-710-04669
...
33
Handle Panel MTD-731-1391
...
xx
HANDLE PANEL (BLACK) MTD-931-1393
...
34
Carriage Bolt 5/16-18 x 1.50 MTD-710-0262
...
35
Bell Washer .340 ID x .872 OD MTD-736-0242
...
36
Shift Rod MTD-747-0798A
...
37
Push Cap MTD-726-0100
...
38
Chute Directional Control Knob MTD-720-0201A
...
40
Chute Crank Ass'y MTD-984-0022
...
41
HEX NUT 5/16-18 MTD-712-3010
...
42
EYEBOLT MTD-747-0697
...
43
Rubber Grommet MTD-735-0234
...
44
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
45
Hex Washer Screw 1/4-20 x 1.0 MTD-710-0788
...
46
Handle Tab MTD-984-5599
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
Hex Cap Screw 5/16-18 x 1.75 MTD-710-3180
...
49
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
50
Flat Washer MTD-736-0185
...
51
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
52
Lower Chute MTD-731-1300E
...
53
Hex Lock Nut 5/16-18 MTD-712-0429
...
54
5/16 Washer MTD-736-0159
...
55
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
56
Carriage Screw 5/16-18 x 1.0 MTD-710-0276
...
57
Knob MTD-720-0284
...
58
LOCK NUT 1/4 MTD-912-3027
...
59
Flange Keeper MTD-731-0851A
...
60
Hex Cap Screw 1/4-20 x .75 MTD-710-3015

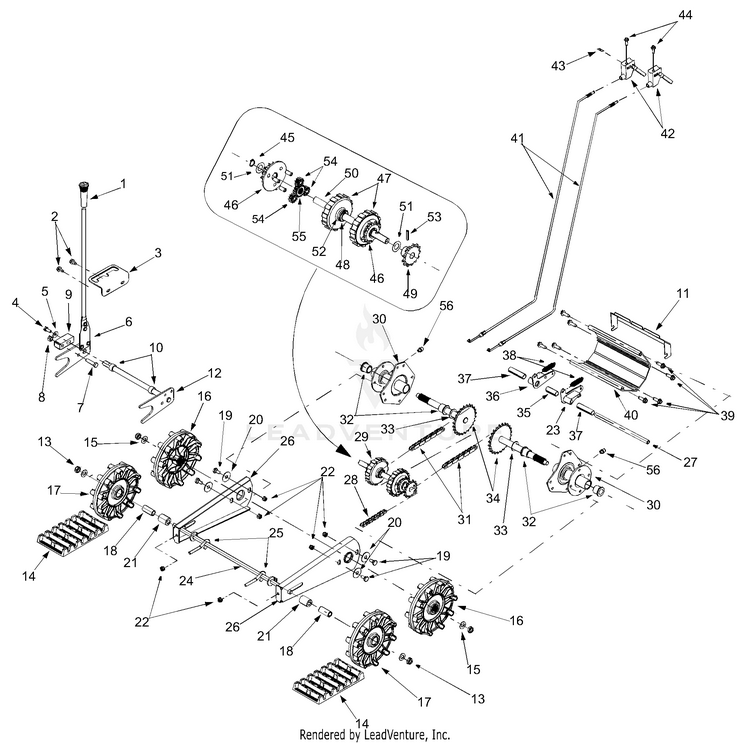

Track Drive

...
...
1
Grip MTD-720-0223
...
2
Screw, 5/16-18 x .625 MTD-710-0604A
...
3
TRACK LOCKOUT PLATE MTD-784-5642
...
4
Hex Cap Screw, 5/16-24 x .75 MTD-710-0157
...
5
Bell Washer, .34 ID x .872 OD MTD-736-0242
...
6
HANDLE ASSEMBLY MTD-684-0038
...
7
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-0459A
...
8
Hex Nut, 3/8-24 MTD-712-0214
...
9
LIFT SHAFT DRIVE MTD-748-0353A
...
10
Spacer, .628 ID x .875 OD x .5 MTD-750-0547
...
11
STEERING BRACKET MTD-784-5609
...
12
PIVOT ROD ASSEMBLY MTD-684-0009A
...
13
Jam Nut, 1/2-20 MTD-712-0346
...
14
SNOW TRACK MTD-731-1292
...
15
FLAT WASHER .510 x .995 MTD-736-0272
...
16
Track Drive Wheel MTD-731-1538A
...
17
Wheel Assembly Idler MTD-631-0032A
...
18
SPACER MTD-750-0995
...
19
Screw, .435 x .178-5/16 x .56 MTD-738-0140
...
20
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
21
SPACER-.51IDX1.34LG MTD-750-0909
...
22
Hex Nut, 5/16-18 MTD-712-0429
...
23
LH Dogg Assembly MTD-618-0044
...
24
KIT-REPLACEMENT MTD-753-05977
...
25
EYEBOLT5/16-18 x 3.0 MTD-710-1231
...
26
TRACK SIDE PLATE MTD-784-5639
...
27
ACTUATOR SHAFT MTD-711-0911
...
28
Chain MTD-713-0233
...
29
Shaft Assembly MTD-918-0169B
...
30
Hub Assembly MTD-683-0024-0637
...
31
Chain MTD-713-0437
...
32
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
33
Flat Washer, .793 x 1.24 x .06 MTD-736-0287
...
34
Axle Assembly MTD-611-0053
...
35
SPLIT SPACER MTD-750-0904
...
36
DOG ASSEMBLY (RH) MTD-618-0043
...
37
SPLIT SPACER MTD-750-0903B
...
38
Spring MTD-932-0209
...
39
Tap Screw, 5/16-18 x 1 MTD-710-0602
...
40
TRACK HOUSING MTD-719-0295A
...
41
Steering Cable MTD-946-0948A
...
42
Cable Assembly, Trigger MTD-746-0950A
...
43
FLAT WELD NUT MTD-712-0127
...
44
Screw, #10-24 x 1.375 MTD-710-1233
...
45
Snap Ring .56" Dia. MTD-916-0114
...
46
Carrier MTD-918-0576A
...
47
RING GEAR MTD-717-1211B
...
48
SNAP RING FOR .625 DIA SHAFT MTD-916-0115
...
49
SPROCKET 13T x .5P MTD-713-0414
...
50
Track Steering Drive Shaft MTD-711-0912
...
51
Fl-Wash. .57" I.D. x 1.12" O.D. MTD-936-0502
...
52
FLAT WASHER MTD-936-0336
...
53
Spiral Pin, 3/16 x 1 MTD-715-0120
...
54
GEAR-12T MTD-717-1209A
...
55
Gear 18-Tooth MTD-717-1210A
...
56
UNKNOWN MTD-NA
