Yard Machines 31AE6LFG700 (2005) Snow Thrower

Model: 31AE6LFG700 (2005)

Back To Assemblies

Save Part Not Listed?
product name

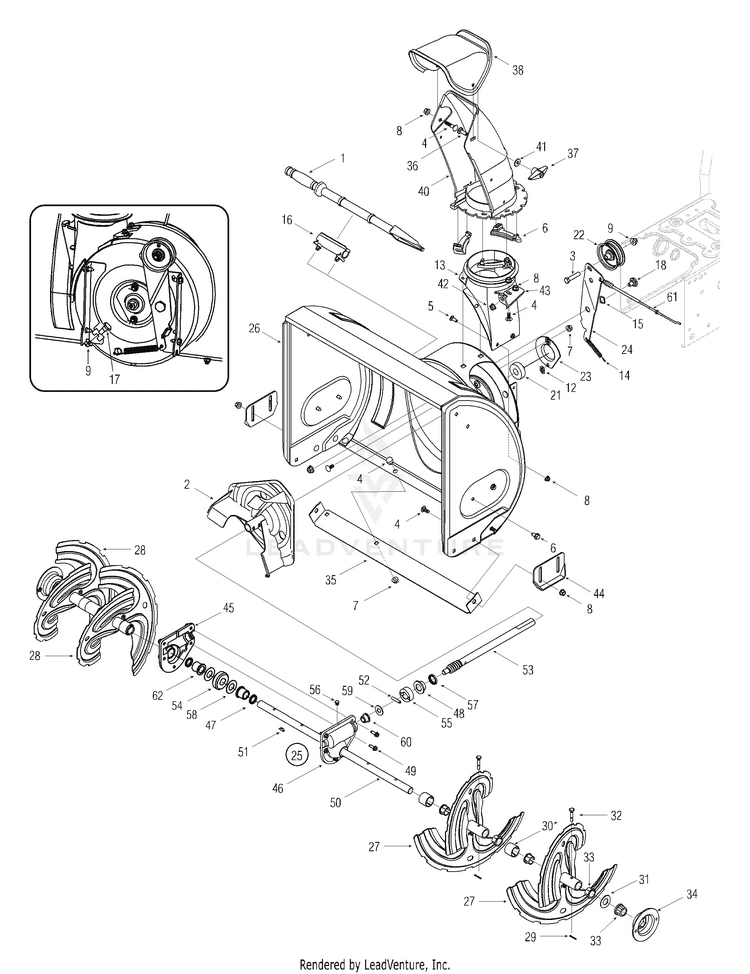

General Assembly

...
...
1
Snow Removal Tool MTD-931-2643
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Hex Screw, 3/8-16, 1.75, Gr5, Std MTD-710-0347
...
4
Bolt, Carriage, 5/16-18, .750 Gr1 MTD-710-0451
...
5
Screw, Carriage, 1/4-20, .75, Gr5 MTD-710-0703
...
6
Screw, Self-tapping, 5/16-12, 0.750 MTD-710-0726
...
6
Chute Flange Keeper MTD-731-04869A
...
7
Nut, Flange Lock, 5/16-18, Grf, Nylon MTD-712-04063
...
8
Nut, Flange Lock, 1/4-20, Grf, Nylon MTD-712-04064
...
9
Nut, Flange Lock, 3/8-16, Grf, Nylon MTD-712-04065
...
10
Internal Cotter Pin MTD-714-0149B
...
11
Cable, Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
12
Nut, Push-on, .25 Diameter MTD-726-04012
...
13
CHUTE ADAPTER MTD-731-04705D
...
14
Ext. Spring 3.6" Lg. MTD-932-0611
...
15
Washer, Wave, .625 x.885 x.015 MTD-736-0174
...
16
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
17
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
18
Screw, Shoulder, .625 x .170, 3/8-16 MTD-738-0281
...
19
Shear Pin MTD-738-04124A
...
20
Hex Flange Bearing MTD-941-0245
...
21
Flange Ball Bearing MTD-941-0309
...
22
Flat Idler Pulley MTD-756-04224
...
23
BEARING HOUSING 1.85 ID MTD-790-00075B
...
24
AUGER IDLER BRACKET MTD-790-00080D
...
25
28" GEARBOX ASSEMBLY MTD-918-04173B
...
26
28" AUGER HOUSING MTD-684-04073
...
27
AUGER SPIRAL (LH) MTD-684-04107A
...
28
AUGER SPIRAL (RH) MTD-684-04108A
...
29
Cotter Pin MTD-714-0507
...
30
Spacer, 1.25 OD x .75 ID x 1.00 MTD-731-04870
...
31
Washer, Flat, .76 x 1.49 x .06 MTD-736-0188
...
32
Shear Pin MTD-738-04124A
...
33
FLANGE BUSHING MTD-741-0493C
...
34
Housing, 1" Hex Bearing MTD-790-00087A-0637
...
35
Plate, Shave, 2.25 x 27.66 MTD-790-00118
...
36
Bolt, Carriage, 5/16-18, 1.0 MTD-710-04071
...
37
WING NUT KNOB MTD-720-04032
...
38
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
39
Chute Flange Keeper MTD-731-04869A
...
40
Lower Chute MTD-731-04912B
...
41
Washer.349 ID x .879 OD x .063 MTD-736-0159
...
42
BUSHING .380 ID MTD-941-0475
...
43
Chute Crank Bracket MTD-784-5647-0637
...
44
Shoe, Slide MTD-784-5580
...
45
RH Housing MTD-918-0123A
...
46
LH Housing MTD-918-0124A
...
47
Seal, Oil, .750 ID MTD-721-0179
...
48
Bearing, Flange, .75 ID x 1.00 OD x .59 MTD-741-0662
...
49
Screw, Self-tapping, 1/4-20, 0.750 MTD-710-0642
...
50
28" AUGER AXLE MTD-711-06145
...
51
KEY 3/16 x 5/8 H MTD-914-0161
...
52
Pin, Dowel, .25 OD x 1.2 MTD-715-04021
...
53
Shaft, Worm .75 OD MTD-917-04126
...
54
WORM GEAR 20T MTD-917-04861
...
55
Collar, Thrust MTD-718-04071
...
56
Plug, 1/4 x .437 MTD-721-0325
...
57
Seal, Oil, .75 x 1 x .131 MTD-721-0327
...
58
Washer, Flat, .760 ID x 1.5 OD MTD-736-0351
...
59
Washer, Flat, .51 x 1.12 MTD-736-3084
...
60
Bearing, Flange, .75 ID x 1.00 OD x .925 MTD-741-0663
...
61
Cable-Auger Clutch MTD-946-0897
...
62
Bearing, Flange, .75 x 1.00 x .975 MTD-741-0661B
