product name

Yard Machines 31AE660F062 (1999) Snow Thrower

Model: 31AE660F062 (1999)

Save Part Not Listed?
product name

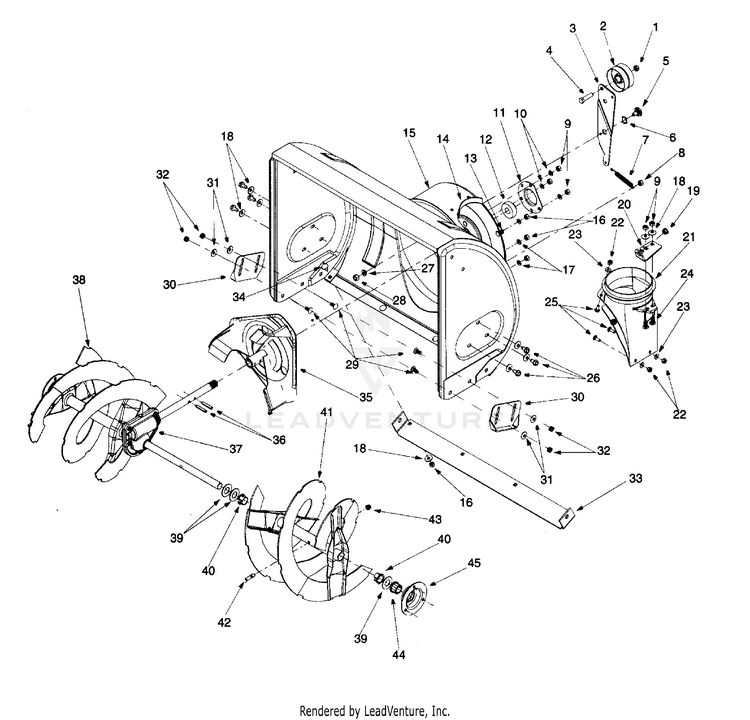

Blower Housing 31AE660F

...
...
1
Lock Jam Nut 3/8-24 MTD-712-0116
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
5
Shoulder Screw MTD-738-0281
...
6
Wave Washer MTD-736-0174
...
7
Ext. Spring 3.6" Lg. MTD-932-0611
...
8
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Bearing Housing MTD-05931A
...
12
Flange Ball Bearing MTD-941-0309
...
13
Carriage Bolt 5/16-18 MTD-710-0451
...
14
Reinforcement Chute MTD-705-5226
...
15
26" HOUSING ASSEMBLY MTD-684-0040D
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Lock Wash. 5/16" I.D. MTD-936-0119
...
18
Bell Washer MTD-736-0242
...
19
BUSHING .380 ID MTD-941-0475
...
20
Chute Crank Bracket MTD-784-5647-0637
...
21
Adapter Chute MTD-731-1379D
...
22
Hex Lock Nut 1/4-20 MTD-712-0324
...
23
Flat Washer MTD-736-0463
...
24
Carriage Bolt MTD-710-0451
...
25
Carriage Screw 1/4-20 x .75 MTD-710-0703
...
26
Screw, 5/16-18 x .625 MTD-710-0604A
...
27
Lock Washer 3/8 MTD-736-0169
...
28
Hex Nut 3/8-16 MTD-712-0798
...
29
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
30
Snow Shoe MTD-784-5580
...
31
Bell Washer MTD-736-0242
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Shave Plate: Auger 26" MTD-790-00121-0637
...
34
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
35
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
36
Pin MTD-715-0114
...
37
Gear Assembly: Auger 26" MTD-918-0415B
...
38
Spiral Assembly: RH 26" MTD-684-04182-0637
...
39
Flat Washer MTD-736-0188
...
40
FLANGE BUSHING MTD-741-0493C
...
41
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04183-0637
...
42
Shear Bolt 5/16-18 x 1.5 MTD-710-0890A
...
43
Lock Nut 5/16-18 MTD-712-0429
...
44
Hex Flange Bearing MTD-941-0245
...
45
Bearing Housing MTD-784-5618A-0637

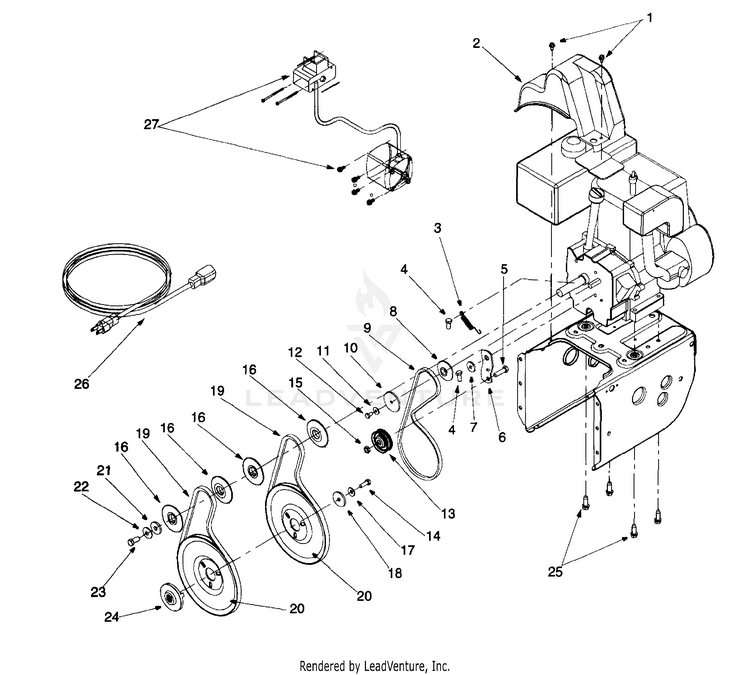

Engine And V-Belts 31AE660F

...
...
1
Hex Washer Screw 1/4-20 x .50 MTD-710-0599
...
2
Belt Cover MTD-731-1324
...
3
Extension Spring MTD-932-0710
...
4
Hex Screw 5/16-24 x .75 MTD-710-0627
...
5
Hex Cap Screw 3/8-16 x 1.25 MTD-710-3005
...
6
BRACKET-IDLR- MTD-05896A
...
7
Shoulder Spacer MTD-748-0234
...
8
HALF PULLEY MTD-956-0987
...
9
V - Belt V-Belts are specially designed to engage and disengage safely. A substitute (non OEM) V-Belt can be dangerous by not disengaging completely. MTD-954-0346
...
10
HALF PULLEY MTD-756-0986
...
11
SPRING WASHER BELL MTD-736-0270
...
12
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
13
Flat Idler MTD-756-0313
...
14
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
15
Lock Jam Nut 3/8-16 MTD-712-0181
...
16
Pulley Half MTD-756-0569
...
17
Bell Washer MTD-736-0242
...
18
Flat Washer MTD-736-0505
...
19
BELT: 3V X 35.00 LG V-Belts are specially designed to engage and disengage safely. A substitute (non OEM) V-Belt can be dangerous by not disengaging completely. MTD-954-0430C
...
20
Auger Pulley MTD-756-0967
...
21
Flat Washer 3/8 x 1.25 OD MTD-736-0247
...
22
Bell Washer MTD-736-0331
...
23
Hex Cap Screw.3/8-24 MTD-710-0696
...
24
Adapter Pulley MTD-948-0360
...
25
Hex Screw 3/8-16 x 1.0 MTD-710-0654A
...
26
3-Prong Extension Cord MTD-929-0071B
...
27
STARTER MOTOR MTD-TC-33329H

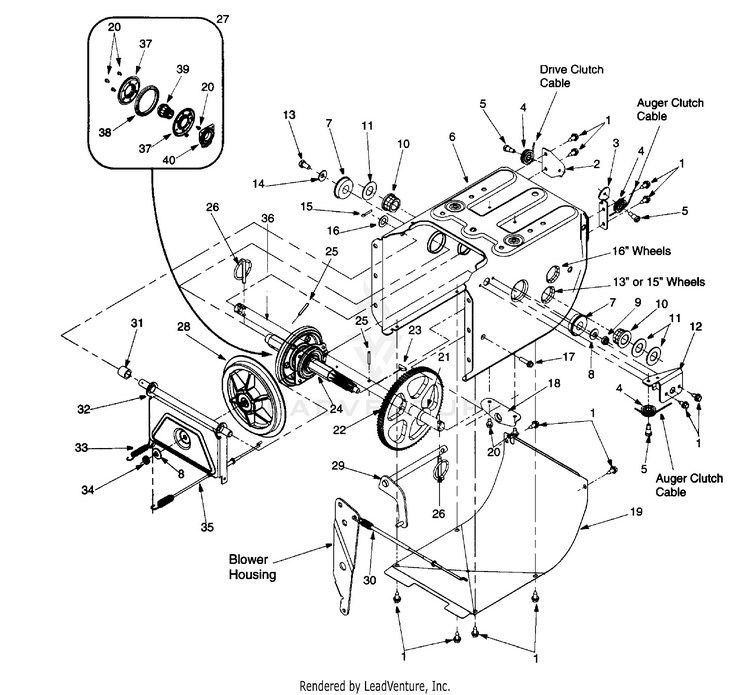

Frame Assembly 31AE660F

...
...
1
Hex Screw MTD-710-1652
...
2
DRIVE GUIDE BRACKET MTD-784-5688
...
3
AUGER GUIDE BRACKET MTD-784-5687
...
4
Roller Cable MTD-756-0625
...
5
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
6
FRAME MTD-684-0030
...
7
BALL BEARING MTD-941-0563
...
8
Bell Washer MTD-736-0105
...
9
Lock Jam Nut MTD-712-0116
...
10
Hex Flange Brg. .752" I.D. MTD-941-0598
...
11
Flat Washer MTD-736-0188
...
12
GUIDE BRACKET MTD-784-5689A-0637
...
13
Lock Hex Screw MTD-710-0538
...
14
Bell Washer .340 ID x .872 OD MTD-736-0242
...
15
Cotter Pin MTD-714-0474
...
16
Flat Washer .536 ID x .930 OD MTD-736-0160
...
17
Hex Washer Screw 1/4-20 MTD-710-0788
...
18
Frame Shift Bracket MTD-784-5590
...
19
FRAME COVER MTD-784-5638A
...
20
Hex Washer Screw 1/4-20 MTD-710-0599
...
21
Flat Washer .760 ID x .50 OD MTD-736-0351
...
22
Gear MTD-717-1445
...
23
Key MTD-714-0126
...
24
7-Tooth Shaft MTD-917-04094
...
25
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
26
Click Pin MTD-714-0143A
...
27
Wheel Assembly Friction MTD-984-0042C
...
28
Friction Wheel Disc Ass'y. MTD-956-0012A
...
29
SHIFT ROD ASSEMBLY MTD-684-04243
...
30
Cable-Auger Clutch MTD-946-0897
...
31
Spacer MTD-748-0190
...
32
BRACKET ASSEMBLY MTD-984-0021-0637
...
33
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
34
Jam Nut 3/8-24 MTD-712-0711
...
35
Cable-Drive Clutch MTD-946-0898
...
36
AXLE .750X24.5 MTD-738-0830
...
37
Wheel Assembly Friction MTD-984-0042C
...
38
Rubber Only MTD-935-0243B
...
39
Wheel Assembly Friction MTD-984-0042C
...
40
FRICTION WHEEL BEARING ASSEMBLY MTD-618-0063

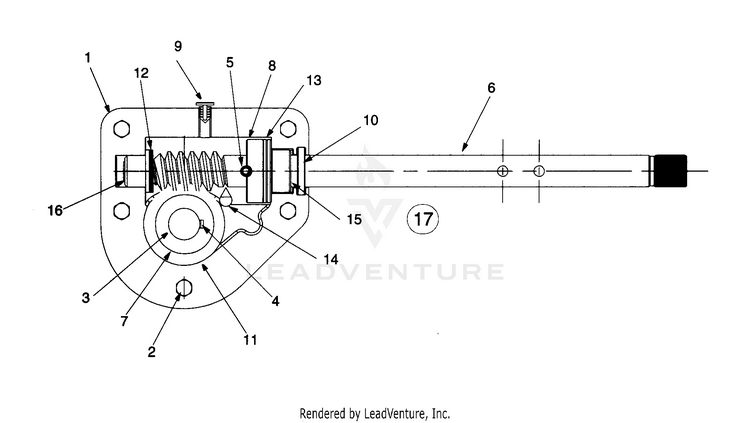

Gear Assembly 31AE660F

...
...
1
RH Housing MTD-918-0123A
...
xx
LH Housing MTD-918-0124A
...
2
Hex Screw 1/4-20 x .75 MTD-710-0642
...
3
26"AUGER SHAFT MTD-711-0909A
...
4
KEY 3/16 x 5/8 H MTD-914-0161
...
5
Pin-Spiral MTD-715-0143
...
6
IMPELLER SHAFT MTD-717P0526
...
7
WORM GEAR 20T MTD-917-04861
...
8
Collar-Thrust MTD-718-0186
...
9
Plug MTD-721-0325
...
10
Seal-Oil MTD-721-0327
...
11
Washer-Flat MTD-736-0351
...
12
Washer-Flat MTD-736-0369
...
13
Washer-Flat MTD-736-0445
...
14
Grease MTD-737-0168A
...
15
Bearing-Flange MTD-741-0662
...
16
Bearing-Flange MTD-741-0663
...
17
Gear Assembly: Auger 26" MTD-918-0415B

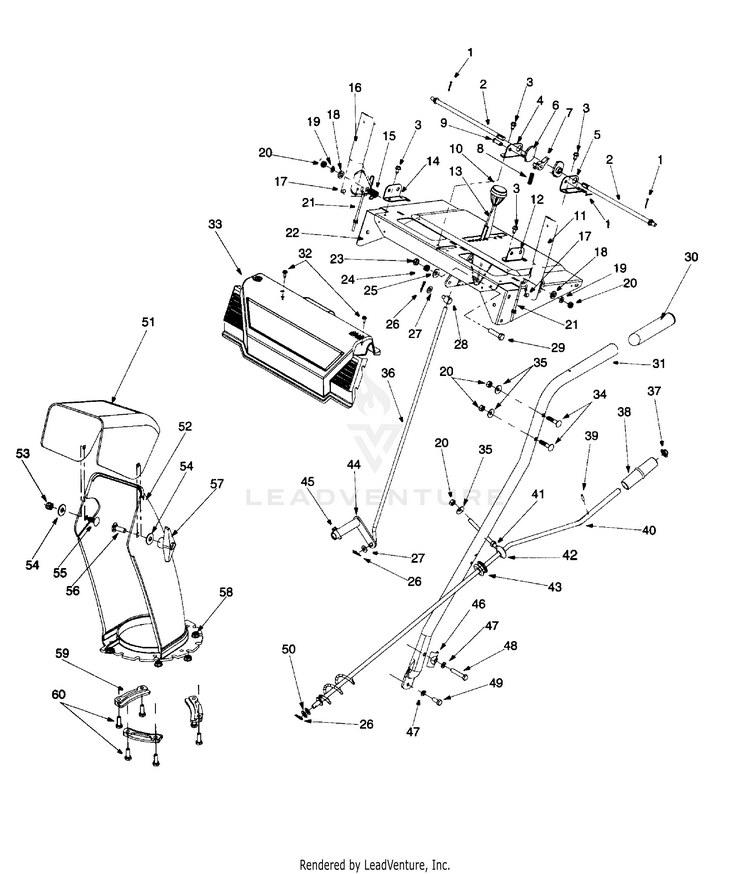

Handle Assembly 31AE660F

...
...
1
Cotter Pin MTD-714-0507
...
2
Rod MTD-747-0877
...
3
Hex Washer Screw 1/4-20 x .5 MTD-710-0599
...
4
Brkt., Handle Support - RH MTD-784-5680-0637
...
5
HANDLE BRACKET (LH) MTD-784-5679-0637
...
6
Cam Lock Handle MTD-748-0362
...
7
Handle Lock Pawl MTD-948-0363
...
8
Compression Spring MTD-732-0145
...
9
Clevis Pin MTD-711-0653
...
10
Knob MTD-920-0232
...
11
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
12
Handle Support Bracket - LH MTD-784-5681
...
13
KIT-SHIFT HANDLE:S MTD-753-05395
...
14
Brkt., Handle Support - RH MTD-784-5682-0637
...
15
Torsion Spring MTD-732-0746
...
16
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
17
Rubber Bumper MTD-735-0199A
...
18
Washer MTD-736-0509
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Cable "Z" Fitting MTD-946-0778
...
22
HANDLE PANEL ASSEMBLY MTD-684-0103A
...
23
Jam Lock Nut 3/8-24 MTD-712-0116
...
24
Compression Spring MTD-732-0193
...
25
Bell Washer MTD-736-0105
...
26
Cotter Pin MTD-714-0104
...
27
FLAT WASHER MTD-736-0275
...
28
Engagement Ferru MTD-911-0677
...
29
Hex Cap Screw 3/8-24 x 1.50 MTD-710-0459A
...
30
Grip MTD-720-0274
...
31
HANDLE (RH) MTD-749-0910C-0637
...
xx
HANDLE (LH) MTD-749-0911B
...
32
Special Screw, #10-16 x .625 MTD-710-04669
...
33
Handle Panel MTD-731-1391
...
xx
HANDLE PANEL (BLACK) MTD-931-1393
...
34
Carriage Bolt 5/16-18 x 1.50 MTD-710-0262
...
35
Bell Washer .340 ID x .872 OD MTD-736-0242
...
36
Shift Rod MTD-747-0798A
...
37
Push Cap MTD-726-0100
...
38
Chute Knob MTD-720-0201A
...
39
Rolled Pin, 1/8 x .63 MTD-915-0138
...
40
Chute Crank Ass'y MTD-984-0022
...
41
HEX NUT 5/16-18 MTD-712-3010
...
42
EYEBOLT MTD-747-0697
...
43
Rubber Grommet MTD-735-0234
...
44
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
45
Hex Washer Screw 1/4-20 x 1.0 MTD-710-0788
...
46
Handle Tab MTD-984-5599
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
Hex Cap Screw 5/16-18 x 1.75 MTD-710-3180
...
49
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
50
Flat Washer MTD-736-0185
...
51
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
52
Lower Chute MTD-731-1300E
...
53
Hex Lock Nut 5/16-18 MTD-712-0429
...
54
5/16 Washer MTD-736-0159
...
55
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
56
Carriage Screw 5/16-18 x 1.0 MTD-710-0276
...
57
Knob MTD-720-0284
...
58
LOCK NUT 1/4 MTD-912-3027
...
59
Flange Keeper MTD-731-0851A
...
60
Hex Cap Screw 1/4-20 x .75 MTD-710-3015

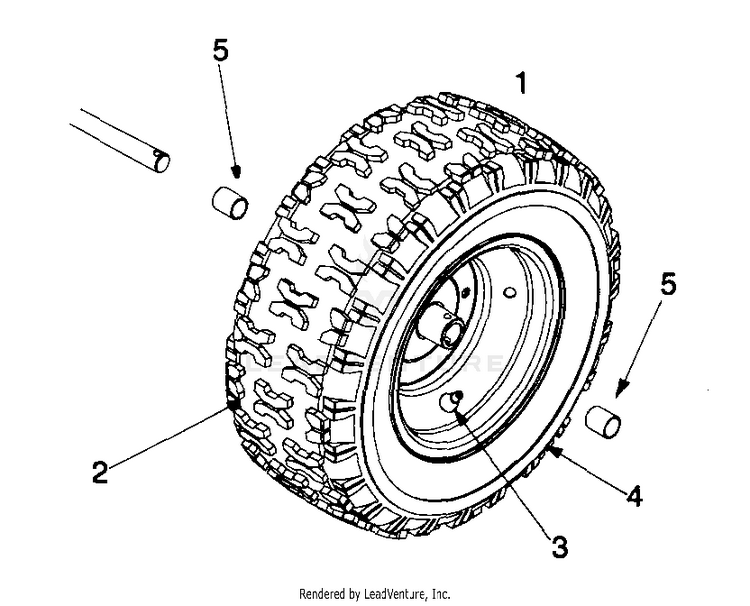

Wheel Assemblies 31AE660F

...
...
1
WHEEL ASSEMBLY 16X4.8 MTD-734-1709
...
2
Tire Only MTD-734-1530
...
3
TUBELESS VALVE MTD-934-0255
...
4
RIM ASSEMBLY MTD-734-1708
...
5
Sleeve Bearing .752" I.D. MTD-941-0401
