Yard Machines 31AE5MLG729 (2005) Snow Thrower

Model: 31AE5MLG729 (2005)

Back To Assemblies

Save Part Not Listed?
product name

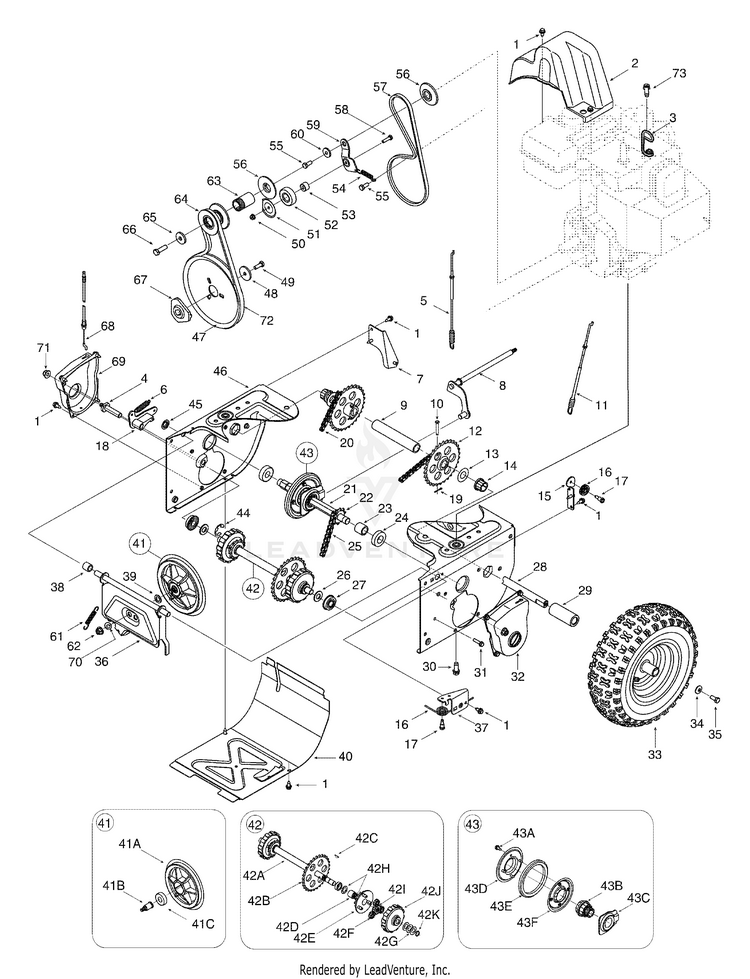

Drive

...
...
1
AB Screw, 1/4-20 x 0.625 MTD-710-1652
...
2
BELT COVER (SMALL BLOCK) MTD-631-05321
...
3
Cable Guide MTD-732-0705
...
4
ACTUATOR SHAFT MTD-711-1268A
...
5
Drive Clutch Cable 41.75" Lg. MTD-946-04086
...
6
Spring MTD-932-0209
...
7
DRIVE CABLE BRACKET MTD-790-00055
...
8
SHIFT ROD ASSEMBLY MTD-684-04140
...
9
AXLE SUPPORT TUBE MTD-750-04312A
...
10
Clevis Pin MTD-711-1364
...
11
Cable-Auger Clutch MTD-946-0897
...
12
SPROCKET MTD-913-04009
...
13
Flat Washer MTD-736-0351
...
14
Hex Flange Bearing MTD-941-0245
...
15
AUGER GUIDE BRACKET MTD-784-5687A
...
16
Cable Roller MTD-756-0625
...
17
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
18
DOG ASSEMBLY (RH) MTD-618-0043
...
xx
Dogg Assembly - LH (not shown) MTD-618-0044
...
19
Hairpin Clip MTD-714-0507
...
20
Chain MTD-713-0286
...
21
DRIVE SHAFT MTD-911-04270
...
22
Sprocket, #41 x 10T MTD-913-04015
...
23
SPACER MTD-750-1162
...
24
BALL BEARING MTD-941-0600
...
25
CHAIN MTD-713-04011
...
26
Flat Washer MTD-736-0626
...
27
Ball Bearing MTD-741-04076
...
28
AXLE.75X11.365 MTD-938-04105A
...
29
Spacer MTD-731-04873
...
30
TT Sems Screw, 3/8-16 x 1.0 MTD-710-0654A
...
31
TT Screw, 1/4-20 x 1.0 MTD-710-0788
...
32
DRIVE RETAINER (LH) MTD-790-00056
...
33
Wheel Complete MTD-634-04141
...
34
Bell Washer MTD-736-0242
...
35
Hex Bolt, 5/16-24 x 0.75 MTD-710-0627
...
36
BRACKET ASSEMBLY MTD-684-04045
...
37
Auger Cable Guide Bracket MTD-790-00096
...
38
Spacer MTD-748-0190
...
39
Flat Washer MTD-736-0300
...
40
FRAME COVER MTD-790-00054
...
41
Friction Wheel Disc Ass'y. MTD-956-0012A
...
41A
FRICTION WHEEL DISC .375 x 6.0 MTD-956-0648A
...
41B
FRICTION DISC BEARING PIN MTD-738-0865
...
41C
BALL BEARING MTD-941-0600
...
42
DRIVE SHAFT ASSEMBLY MTD-618-04116
...
42A
DRIVE SHAFT MTD-911-04271
...
42B
DRIVE SPROCKET MTD-713-04010
...
42C
KEY-HI PRO 1/8"X5/8" MTD-714-0214
...
42D
Spacer MTD-750-1177
...
42E
PLANETARY CARRIER ASSEMBLY W/BRG MTD-618-0577A
...
42F
Gear, 12T MTD-717-1209A
...
42G
Fl-Wash. .57" I.D. x 1.12" O.D. MTD-936-0502
...
42H
FLAT WASHER MTD-936-0336
...
42I
Gear,18T MTD-717-1210A
...
42J
PLANETARY GEAR RING MTD-917-1495B
...
42K
Retainer Ring MTD-716-0194
...
43
FRICTION WHEEL ASSEMBLY 4.9 OD MTD-984-04066
...
43A
AB Screw, 1/4-20 x 0.625 MTD-710-1652
...
43B
Friction Wheel Hub MTD-718-04070
...
43C
Bearing Assembly MTD-618-04169
...
43D
FRICTION PLATE MTD-790-00011
...
43E
Rubber Only MTD-935-0243B
...
43F
Friction Plate MTD-790-00010
...
44
Retainer Ring MTD-716-0136
...
45
Speed Nut MTD-726-0221
...
46
DRIVE WHEEL FRAME MTD-790-00073
...
47
Auger Pulley MTD-756-04109
...
48
Flat Washer MTD-736-0505
...
49
Hex Bolt, 5/16-24 x 0.875 MTD-710-1245B
...
50
Flange Lock Nut, 1/4-20 MTD-712-04064
...
51
WASHER-BRG 2.12 OD x .255ID MTD-990-00062
...
52
BALL BEARING MTD-741P0919B
...
53
SPACER MTD-750-04230A
...
54
Extension Spring MTD-932-0710
...
55
Hex Bolt, 5/16-24 x 0.75 MTD-710-0627
...
56
Pulley Half MTD-756-04114
...
57
V-Belt MTD-954-0456
...
58
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
59
DRIVE IDLER BRACKET MTD-790-00082
...
60
Shoulder Spacer MTD-748-0234
...
61
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
62
Jam Nut, 3/8-24 MTD-712-0711
...
63
Spacer MTD-750-04303
...
64
HALF PULLEY A2.76 x 1.140 SPLINE MTD-756-06563
...
65
Flat Washer MTD-736-0247
...
66
Hex Bolt, 3/8-24 x 1.25 MTD-710-0191
...
67
Pulley Adapter, .75 DIA MTD-748-04053A
...
68
STEERING CABLE MTD-946-0956C
...
69
DRIVE RETAINER (RH) MTD-790-00057
...
70
Bell Washer MTD-736-0105
...
71
Flange Lock Nut, 3/8-16 MTD-712-04065
...
72
Auger Drive Belt MTD-954-04050A
...
73
TT Screw, 5/16-18 x 1.00 MTD-710-0602
