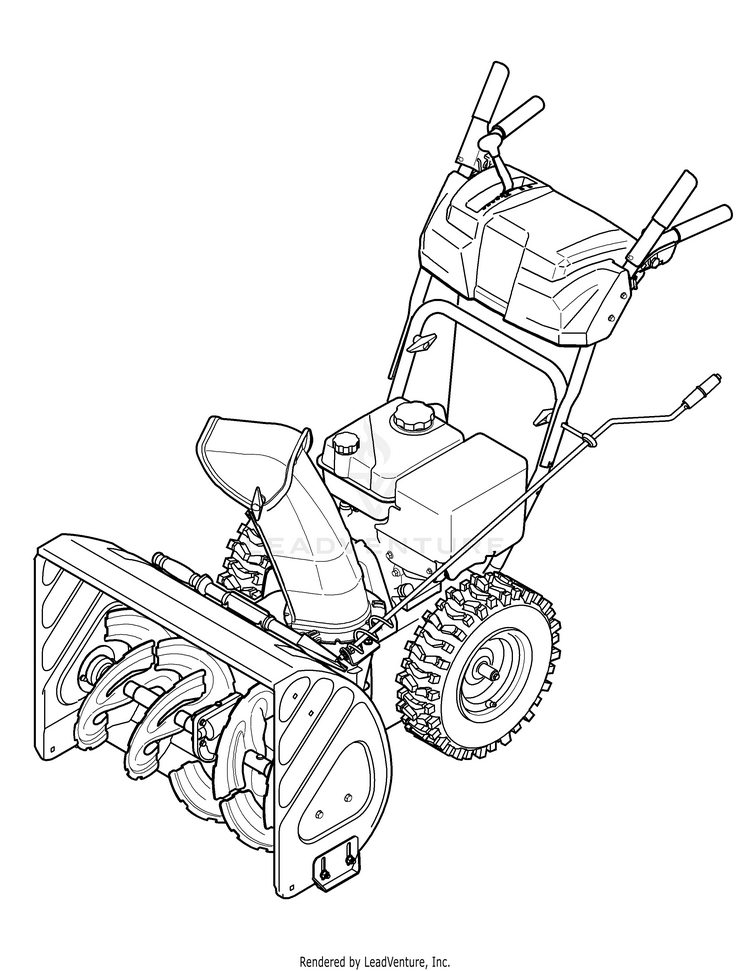

Yard Machines 31A-63BD700 (2012) Snow Thrower

Model: 31A-63BD700 (2012)

Back To Assemblies

Save Part Not Listed?
product name

.Quick Reference 31A-63BD700

...
...
xx
Spark Plug MTD-951-10292A
...
xx
Key, Ignition (same as 731-05632) MTD-951-10630
...
xx
Snow Removal Tool MTD-931-2643
...
xx
Drive Cable MTD-946-04229B
...
xx
Auger Cable MTD-946-04230B
...
xx
Spiral Assembly, LH MTD-684-04107A-0637
...
xx
Spiral Assembly, RH MTD-684-04108A-0637
...
xx
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
xx
Shave Plate 2.25 x 21.66 LG MTD-790-00117-0637
...
xx
Slide Shoe (Steel) MTD-784-5580-0637
...
xx
Skid Shoe Standard Polymer Kit (includes 2 polymer reversible skid shoes and hardware) MTD-753-06206
...
xx
Shear Pin MTD-738-04124A
...
xx
Bow Tie Cotter Pin MTD-714-04040
...
xx
Auger Drive Belt MTD-954-04050A
...
xx
Wheel Drive Belt MTD-954-04260
...
xx
Friction Wheel Ass’y, Single-Speed MTD-684-04360A
...
xx
FRICTION WHEEL 5.50OD MTD-935-04054A
...
xx
Wheel - LH MTD-634-04144A-0911
...
xx
Wheel - RH MTD-634-04144A-0911
...
xx
UNIVERSAL SNOW COVER UP TO 28" (Optional) MTD-490-290-0010
...
xx
Snow Cab (Optional) MTD-490-241-0032
...
xx
FLOOR MAT (Optional) MTD-735-04255
...
xx
SIPHON PUMP (Optional) MTD-490-850-0008
