Yard Machines 31A-614E149 (1998) Snow Thrower

Model: 31A-614E149 (1998)

Back To Assemblies

Save Part Not Listed?
product name

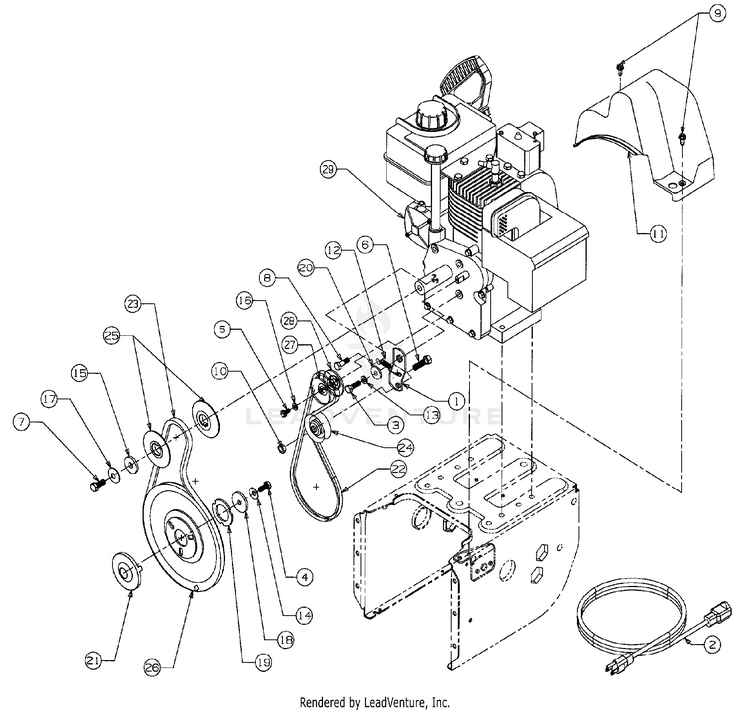

Belt Drive

...
...
1
BRACKET-IDLR- MTD-05896A
...
2
3-Prong Extension Cord Optional - Model 614 MTD-929-0071B
...
3
Screw-Hex MTD-710-0627
...
4
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
5
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
6
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
7
Screw-Hex MTD-710-0696
...
8
Screw-Hex MTD-710-0627
...
9
Screw-Hex MTD-710-0896
...
10
Nut-Hex MTD-712-0181
...
11
Cover-Belt MTD-731-1324
...
12
SPRING MTD-932-0339
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
Washer-Bell MTD-736-0242
...
15
Washer-Flat MTD-736-0247
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Washer-Lock MTD-736-0331
...
18
Washer-Flat MTD-736-0505
...
19
Washer MTD-936-0507
...
20
Spacer MTD-748-0234
...
21
Adapter Pulley MTD-948-0360
...
22
V-Belt MTD-954-0343
...
23
BELT: 3V X 35.00 LG MTD-954-0430C
...
24
Idler-Flat MTD-756-0313
...
25
Pulley-Half MTD-756-0569
...
26
Pulley MTD-756-0967
...
27
PULLEY-HAL MTD-756-0984
...
28
HALF PULLEY MTD-756-0985
...
29
ELECTRIC STARTER MOTOR Optional - Model 614 MTD-TC-33290H
