Yard Machines 31A-3BAD729 (2005-2) Snow Thrower

Model: 31A-3BAD729 (2005-2)

Save Part Not Listed?
product name

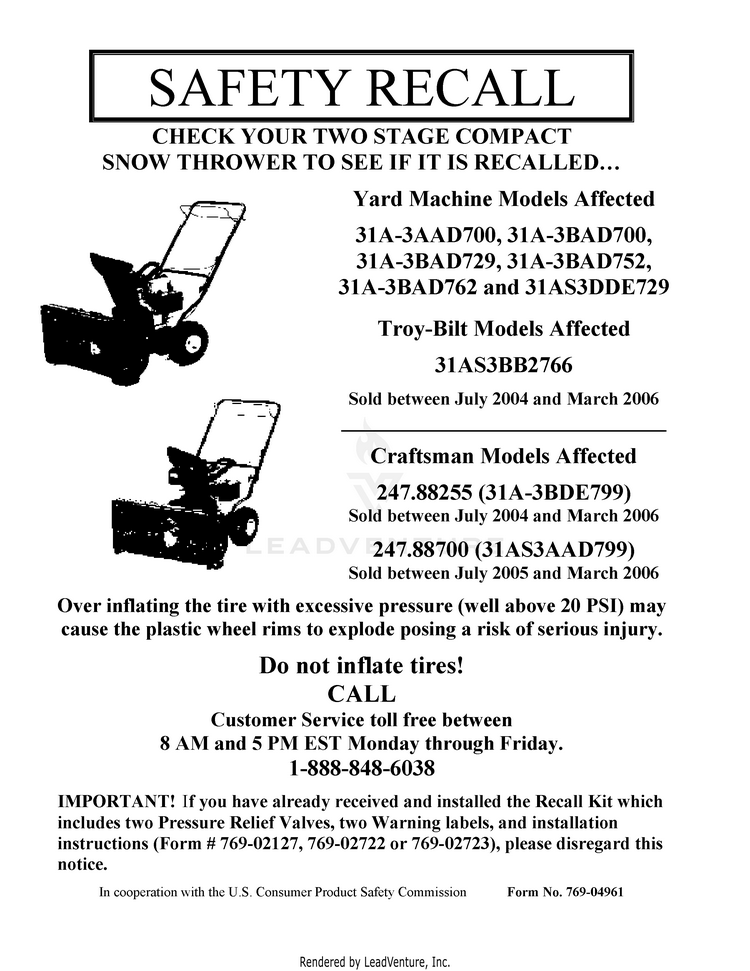

-SAFETY RECALL

...
...
xx
REPLACEMENT KIT (STEEL RIM) MTD-753-10984

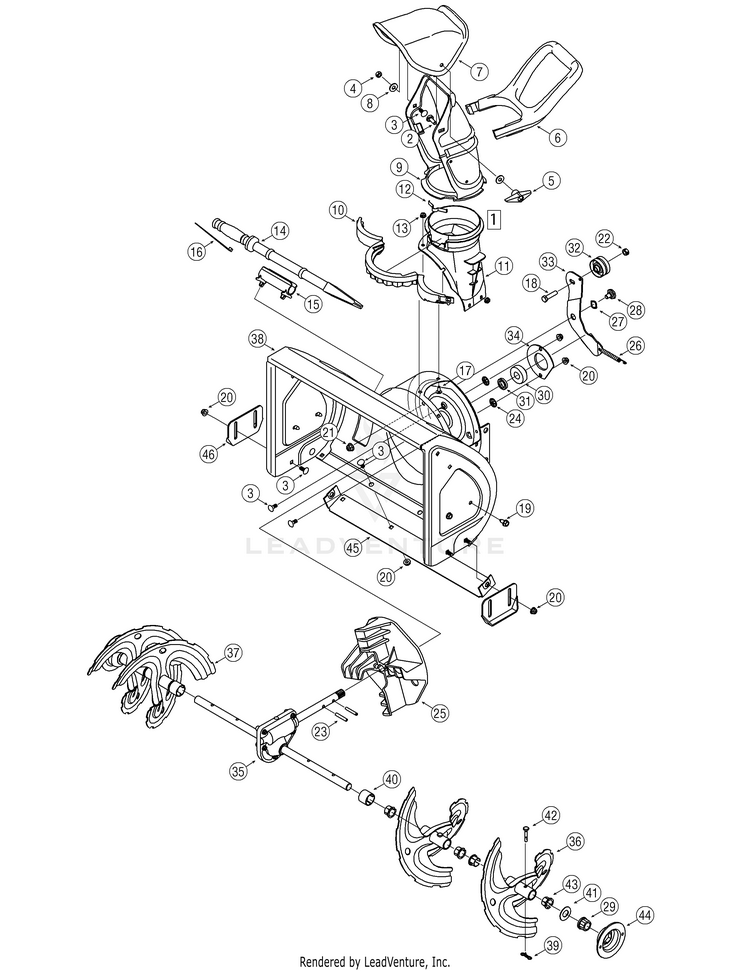

Chute Assembly

...
...
1
Chute Assembly MTD-984-04037
...
2
Carriage Bolt 5/16-18 x 1.0" MTD-710-04071
...
3
Carriage Bolt 5/16-18 MTD-710-0451
...
4
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
5
Wing Nut 5/16-18 MTD-720-0284
...
6
Chute Handle MTD-731-04388A
...
7
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
8
Flat Washer .349 x .879 x .063 MTD-736-0159
...
9
Lower Chute 5" Dia MTD-931-04127
...
10
Ring-Lower Chute MTD-931-04353
...
11
Chute Adapter 5" Dia. MTD-931-2636A
...
12
Chute Adjustment Spring MTD-932-04111
...
13
Flange Lock Nut 1/4-20 MTD-712-04064
...
14
Snow Removal Tool MTD-931-2643
...
15
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
16
Cable Tie MTD-725-0157
...
17
Carriage Screw 1/4-20 x .62" MTD-710-0134
...
18
Hex Bolt 3/8-16 x 1.50" MTD-710-0520
...
19
AB Screw 5/16-18 x .625 MTD-710-0604A
...
20
Flange Lock Nut, 5/16-18 MTD-712-04063
...
21
Flange Lock Nut, 3/8-16 MTD-712-04065
...
22
Hex Lock Nut 3/8-16 MTD-712-3000
...
23
Spiral Pin MTD-715-04020
...
24
Push On Nut MTD-726-04012
...
25
Impeller MTD-731-04218B
...
26
Ext. Spring 3.6" Lg. MTD-932-0611
...
27
Wave Washer MTD-736-0174
...
28
Shoulder Screw 3/8-16 MTD-738-0281
...
29
Hex Flange Bearing MTD-941-0245
...
30
Flange Ball Bearing MTD-941-0309
...
31
Spacer MTD-950-04191
...
32
FLAT IDLER MTD-756-04035
...
33
Auger Idler Bracket MTD-784-0434C-0637
...
34
BEARING HOUSING 1.85 ID MTD-790-00075B
...
35
Auger Gearbox Assembly MTD-918-04292C
...
36
Auger Assembly - LH MTD-684-04113A
...
37
Auger Assembly - RH MTD-684-04114A
...
38
Auger Housing, 22" MTD-684-04166A
...
39
Bow Tie Cotter Pin 72 MTD-714-04040
...
40
Spacer, 1.25 x.75 x 1.00 MTD-731-04870
...
41
Flat Washer MTD-736-0351
...
42
Shear Pin,.25 x 1.50 MTD-738-04124A
...
43
FLANGE BUSHING MTD-741-0493C
...
44
Hex Bearing Housing MTD-790-00087A
...
45
Shave Plate MTD-790-00117
...
46
Skid Shoe MTD-784-5580

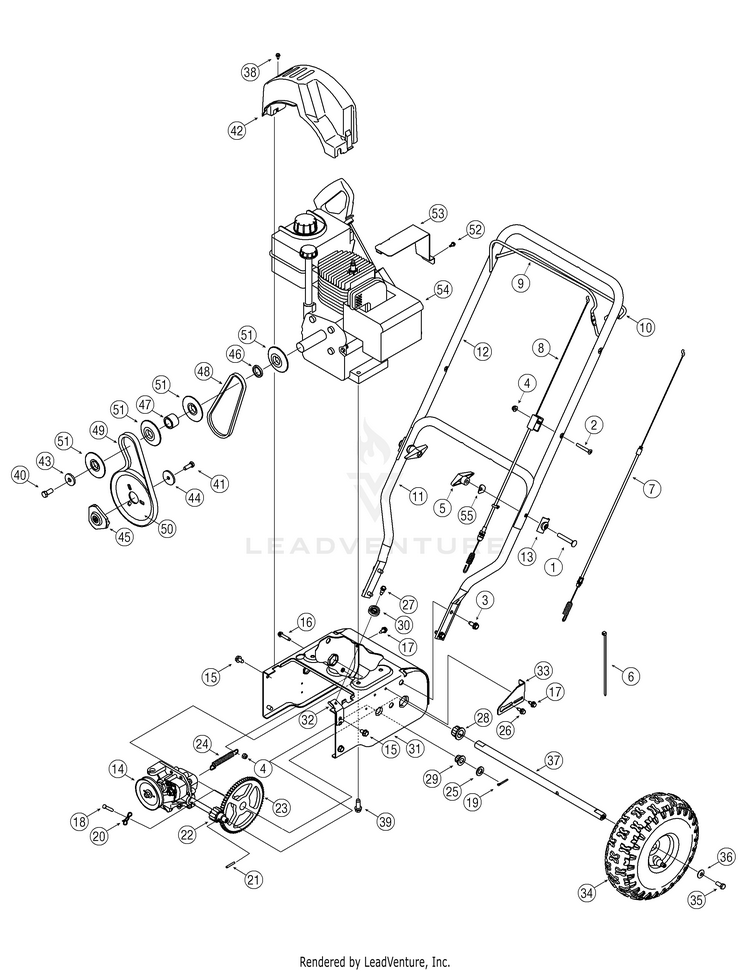

Handle & Wheels

...
...
1
Carriage Screw 5/16-18 x 2.25" MTD-710-0572
...
2
Mach. Screw 1/4-20 x 1.825" MTD-710-0605
...
3
Screw, 5/16-18 x .75" MTD-710-1260A
...
4
Flange Lock Nut 1/4-20 MTD-712-04064
...
5
Knob, Wing, 5/16-18 MTD-720-0284
...
6
Cable Tie MTD-725-0157
...
7
Drive Cable MTD-946-04008
...
8
Auger Cable MTD-946-04236
...
8
Fitting, Dual Cable MTD-731-04216A
...
9
Auger Control MTD-747-1161A-0637
...
10
Drive Control MTD-747-1214
...
11
Lower Handle MTD-749-04147B
...
12
Upper Handle *CHOOSE COLOR WHEN ORDERING* MTD-749-1092A
...
13
Handle Tab MTD-990-00053
...
14
Transmission Assembly MTD-918-04296B
...
15
AB Screw 5/16-18 x .625 MTD-710-0604A
...
16
TT Screw 1/4-20 x 1.25" MTD-710-0809
...
17
Screw, 1/4-20 x.625" MTD-710-1652
...
18
Clevis Pin MTD-711-1364
...
19
Cotter Pin 1/8" Dia. x 1" Lg. MTD-714-0115
...
20
Bow Tie Cotter Pin 72 MTD-714-04040
...
21
Roll Pin MTD-915-0249
...
22
Pinion, 14T MTD-717-04066A
...
23
Gear 70T MTD-917-04073A
...
24
Extension Spring MTD-932-0429A
...
25
Flat Washer MTD-936-0192
...
26
Shoulder Screw 1/4-20 MTD-738-04184A
...
27
Carriage Screw 1/4-28 MTD-738-0924A
...
28
Hex Flange Bearing MTD-941-0245
...
29
Hex Flange Bearing MTD-741-04108
...
30
Cable Roller MTD-756-0625
...
31
WHEEL FRAME HOUSING MTD-784-0419C
...
32
AUGER CABLE GUIDE BRACKET (POWDER BLACK) MTD-790-00223B-0637
...
33
ADJUSTMENT CABLE BRACKET MTD-790-00224
...
34
WHEEL ASSEMBLY (10x4.00-4) SEE SAFETY RECALL Inflate tire to 20 PSI maximum MTD-634P07686
...
34
REPLACEMENT KIT (STEEL RIM) SEE SAFETY RECALL. Use on units Manufactured Between June 1, 2004 (date code ...F014...) and December 31, 2005 (date code ...L315...). (Part Not shown) Inflate tire to 20 PSI maximum MTD-753-10984
...
34
WHEEL VALVE KIT Service Kit for 31A-3BAD729 Home Depot Units Only. SEE SAFETY RECALL. Use on units Manufactured Between June 1, 2004 (date code ...F014...) and December 31, 2005 (date code ...L315...). (Part Not shown) Inflate tire to 20 PSI maximum MTD-753-06263
...
34
REPLACEMENT KIT (STEEL RIM) MTD-753-10984
...
35
Lock Bolt 5/16-24 x 0.75" MTD-710-0627
...
36
Bell Washer MTD-736-0242
...
37
Axle MTD-738-04321
...
38
Hex Screw, #10-16 x.500 MTD-910-0224
...
39
TT Sems Screw 3/8-16 x 1.0" MTD-710-0654A
...
40
Hex Bolt 3/8-24 x 0.875" MTD-710-0696
...
41
Lock Bolt 5/16-24 x .0875 MTD-710-1245B
...
42
Belt Cover MTD-931-04162A
...
43
Flat Washer,.406ID x 1.25 0D MTD-736-0247
...
44
Flat Washer,.34ID x 1.50 OD MTD-736-0505
...
45
Pulley: Adapter ,.75 Dia. MTD-748-04067A
...
46
Spacer, .876 x 1.25 x.19 MTD-950-1355
...
47
Spacer, .876 x 1.25 x .86 MTD-950-1356
...
48
V-Belt, 3/8 x 21.108 Lg. MTD-954-04013
...
49
V-Belt, 3/8 x 26.375 Lg. MTD-954-05110
...
50
Auger Pulley MTD-956-04024
...
51
Pulley Half MTD-756-0569
...
52
HEX SCREW #10-16 x 0.500 MTD-710-0456
...
53
HEAT SHIELD MTD-990-00064
...
54
5.0HP Tecumseh Engine Shown for reference. MTD-NA
...
55
Saddle Wash. .32" I.D. MTD-736-0451
