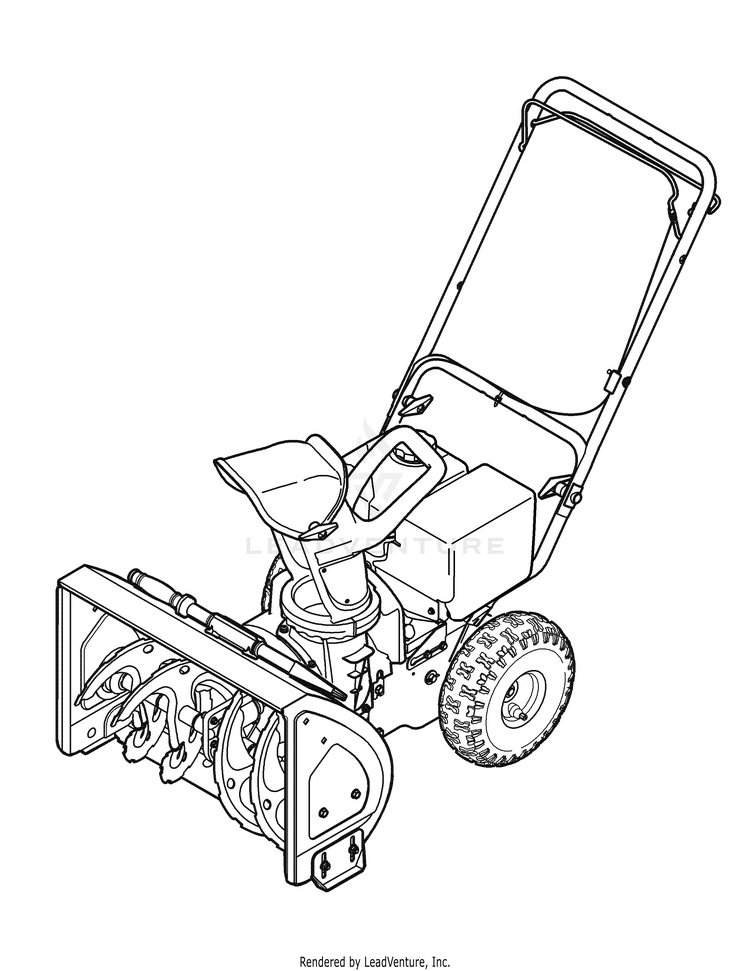

Yard Machines 31A-32AD762 (2008) Snow Thrower

Model: 31A-32AD762 (2008)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-951-10292A
...
xx
GENUINE FACTORY PARTS® Spark Plug 751-10292 Snow, Ride MTD-490-250-F012
...
xx
Key MTD-951-10630
...
xx
3-Prong Extension Cord (Optional Equipment, if equipped) MTD-929-0071B
...
xx
Snow Removal Tool MTD-931-2643
...
xx
Drive Cable MTD-946-04256
...
xx
THROTTLE CONTROL No Longer Available MTD-746-0436
...
xx
Auger Assembly - LH Powder Black MTD-684-04113A-0637
...
xx
Auger Assembly - LH Red MTD-684-04113A-0637
...
xx
Auger Assembly - RH Powder Black MTD-684-04114A-0637
...
xx
Auger Assembly - RH Red MTD-684-04114A-0637
...
xx
Shave Plate Powder Black MTD-790-00117-0637
...
xx
Shave Plate 2.25 x 21.66 LG Red MTD-790-00117-0637
...
xx
Impeller Assembly MTD-731-04218B
...
xx
Slide Shoe MTD-784-5580-0637
...
xx
Skid Shoe Kit, Standard Polymer (includes 2 shoes and hardware) (Optional Equipment) MTD-753-06206
...
xx
Shear Pin MTD-738-04124A
...
xx
Bow Tie Cotter Pin MTD-714-04040
...
xx
Auger Belt MTD-954-05110
...
xx
Wheel Belt MTD-954-04013
...
xx
WHEEL ASSEMBLY (10x4.00-4) MTD-634P07686

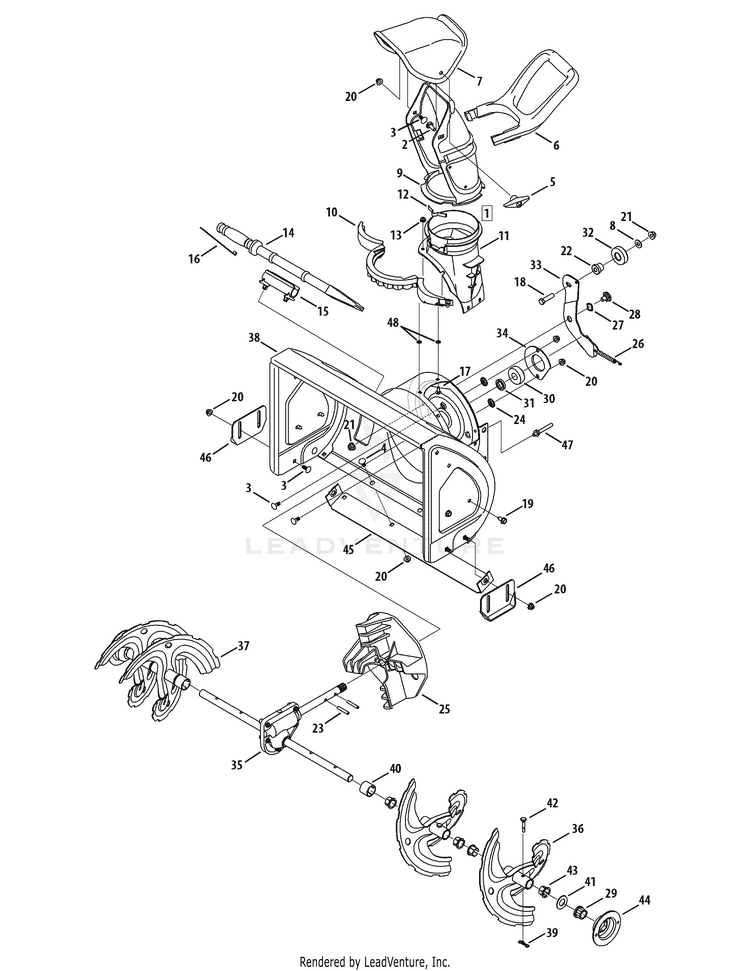

Auger Housing & Discharge Chute

...
...
1
Chute Assembly MTD-984-04037
...
2
Carriage Bolt 5/16-18 x 1.0" MTD-710-04071
...
3
Carriage Bolt 5/16-18 MTD-710-0451
...
4
Carriage Bolt 5/16-18 x .62 MTD-710-0260A
...
5
Wing Knob 5/16-18 Black MTD-720-0284
...
5
WING NUT KNOB MTD-720-04032
...
6
Chute Handle MTD-731-04388A
...
7
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
8
FLAT WASHER .38X.88 MTD-736-0267
...
9
Lower Chute 5" Dia MTD-931-04127
...
10
Ring-Lower Chute MTD-931-04353
...
11
Chute Adapter 5" Dia. MTD-931-2636A
...
12
Chute Adjustment Spring MTD-932-04111
...
13
Flange Lock Nut 1/4-20 MTD-712-04064
...
14
Snow Removal Tool MTD-931-2643
...
15
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
16
Cable Tie MTD-725-0157
...
17
Carriage Screw 1/4-20 x 0.62" MTD-710-0134
...
18
Hex Bolt 3/8-16 x 1.50" MTD-710-0520
...
19
SCREW 5/16-18 x .750 MTD-710-04484
...
20
Flange Lock Nut, 5/16-18 MTD-712-04063
...
21
Flange Lock Nut, 3/8-16 MTD-712-04065
...
22
Shoulder Spacer MTD-750-04852
...
23
Spiral Pin MTD-715-04020
...
24
Push On Nut MTD-726-04012
...
25
Impeller MTD-731-04218B
...
26
Ext. Spring 3.6" Lg. MTD-932-0611
...
27
Wave Washer MTD-736-0174
...
28
Shoulder Screw 3/8-16 MTD-738-0281
...
29
Hex Flange Bearing MTD-941-0245
...
30
Flange Ball Bearing MTD-941-0309
...
31
Spacer MTD-950-04191
...
32
BALL BEARING MTD-741P0919B
...
33
Auger Idler Bracket MTD-784-0434C-0637
...
34
BEARING HOUSING 1.85 ID MTD-790-00075B
...
35
Auger Gearbox Assembly MTD-918-04292C
...
36
Auger Assembly - LH Powder Black MTD-684-04113A-0637
...
36
Auger Assembly - LH Red MTD-684-04113A-0637
...
37
Auger Assembly - RH Powder Black MTD-684-04114A-0637
...
37
Auger Assembly - RH Red MTD-684-04114A-0637
...
38
22" AUGER HOUSING (MTD RED) Red MTD-684-04166A-0638
...
38
Auger Housing, 22" Black MTD-684-04166A-0691
...
38
22" AUGER HOUSING (MASTERCRAFT GREEN) Green MTD-684-04166A-0709
...
39
Bow Tie Cotter Pin 72 MTD-714-04040
...
40
Spacer, 1.25 x.75 x 1.00 MTD-731-04870
...
41
Flat Washer MTD-736-0351
...
42
Shear Pin,.25 x 1.50 MTD-738-04124A
...
43
FLANGE BUSHING MTD-741-0493C
...
44
Hex Bearing Housing MTD-790-00087A
...
45
Shave Plate 2.25 x 21.66 LG Powder Black MTD-790-00117-0637
...
45
Shave Plate 2.25 x 21.66 LG Red MTD-790-00117-0637
...
46
Skid Shoe MTD-784-5580-0637
...
47
Screw-5/16-18 Tt MTD-710-04606A
...
48
Push Nut MTD-726-0233

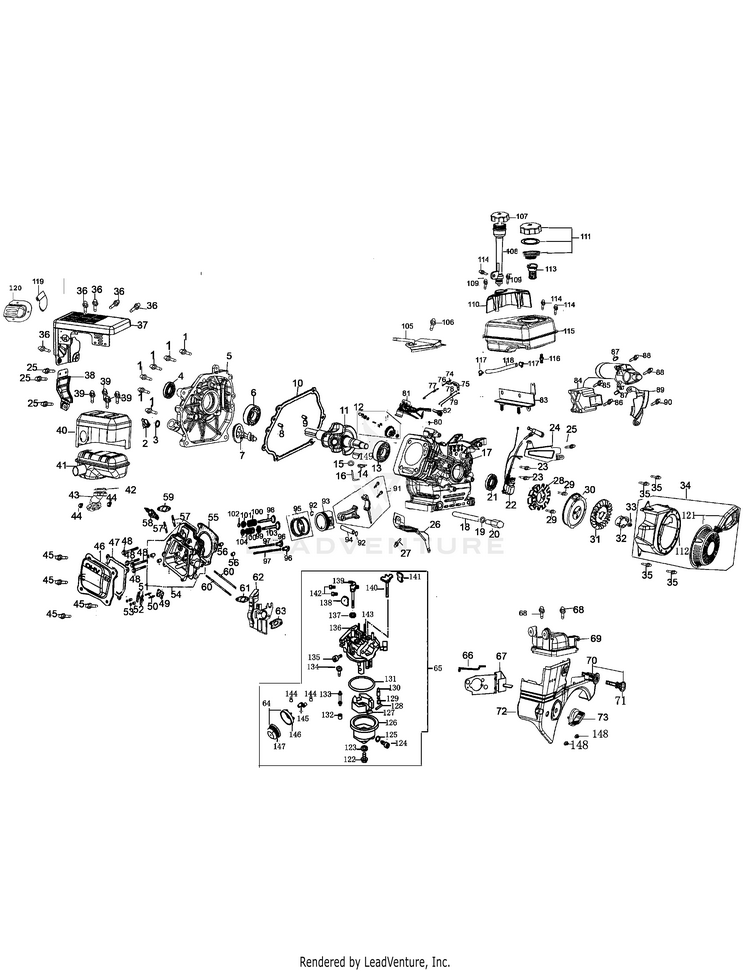

Engine Assembly 165-SU

...
...
1
Bolt Furnish 951-10724 Short Block Assy MTD-NA
...
2
Oil Fill Plug Assembly Furnish 951-10724 Short Block Assy MTD-951-10669
...
2
Oil Fill Plug Assembly Furnish 951-10724 Short Block Assy MTD-951-10669
...
3
O-ring Furnish 951-10724 Short Block Assy MTD-NA
...
4
Oil seal, 25 × 41.25 × 6 Furnish 951-10724 Short Block Assy MTD-NA
...
4
Oil seal, 25 × 41.25 × 6 Furnish 951-10723 Gasket - Complete MTD-NA
...
5
Crankcase cover Furnish 951-10724 Short Block Assy MTD-NA
...
6
Radial Ball Bearing Furnish 951-10724 Short Block Assy MTD-NA
...
7
Camshaft Assembly Furnish 951-10724 Short Block Assy MTD-NA
...
8
Dowel Pin, 9 × 14 Furnish 951-10724 Short Block Assy MTD-NA
...
9
Dowel Pin, 7 × 14 Furnish 951-10724 Short Block Assy MTD-NA
...
10
Crankcase Cover Gasket Furnish 951-10724 Short Block Assy MTD-NA
...
10
Crankcase Cover Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
11
Crankshaft Complete Furnish 951-10724 Short Block Assy MTD-NA
...
12
Governor Kit Furnish 951-10724 Short Block Assy MTD-NA
...
13
Radial Ball Bearing Furnish 951-10724 Short Block Assy MTD-NA
...
14
Pin Lock Furnish 951-10724 Short Block Assy MTD-NA
...
15
O-ring, 5.2 × 1.9 Furnish 951-10724 Short Block Assy MTD-NA
...
15
O-ring, 5.2 × 1.9 Furnish 951-10723 Gasket - Complete MTD-NA
...
16
Governor Arm Furnish 951-10724 Short Block Assy MTD-NA
...
17
Crankcase Furnish 951-10724 Short Block Assy MTD-NA
...
18
Oil-Draining Pipe Furnish 951-10724 Short Block Assy MTD-951-10641
...
18
Oil-Draining Pipe Furnish 951-10723 Gasket - Complete MTD-951-10641
...
18
Oil Drain Assembly (Incl. Ref No. 18-20) MTD-951-10641
...
19
Washer, 10 × 16 × 1.5 Furnish 951-10724 Short Block Assy MTD-NA
...
19
Washer, 10 × 16 × 1.5 Furnish 951-10723 Gasket - Complete MTD-NA
...
20
Drain Bolt, 10 × 1.25 Furnish 951-10724 Short Block Assy MTD-NA
...
20
Drain Bolt, 10 × 1.25 Furnish 951-10723 Gasket - Complete MTD-NA
...
21
Oil Seal, 25 × 41.25 × 6 Furnish 951-10724 Short Block Assy MTD-NA
...
21
Oil Seal, 25 × 41.25 × 6 Furnish 951-10723 Gasket - Complete MTD-NA
...
22
Ignition Module Electric Start Unit Only MTD-951-10646A
...
28
Alternator Assembly Electric Start Unit Only MTD-951-12050A
...
30
Flywheel MTD-951-10805
...
31
COOLING FAN MTD-951-10909B
...
32
Starter Cup MTD-951-10911
...
35
Bolt, Flange M6 x 16 MTD-710-04968
...
37
MUFFLER SHROUD MTD-951-10642B
...
40
MUFFLER GUARD MTD-908-05022
...
41
MUFFLER ASSEMBLY (Incl. Ref No. 41 & 43) MTD-951-11282
...
42
Gasket Furnish 951-10723 Gasket - Complete MTD-951-10666
...
42
Gasket MTD-951-10666
...
47
Valve Cover Gasket Furnish 951-10722 Cylinder Head Assy MTD-NA
...
47
Valve Cover Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
47
Valve Cover Gasket Furnish 951-10952 Gasket Kit - External MTD-NA
...
49
Plate Push Rod Guide Furnish 951-10722 Cylinder Head Assy MTD-NA
...
50
Pivot Bolt Furnish 951-10722 Cylinder Head Assy MTD-NA
...
51
Rocker Arm Furnish 951-10722 Cylinder Head Assy MTD-NA
...
52
Valve Adjusting Nut Furnish 951-10722 Cylinder Head Assy MTD-NA
...
53
Pivot Locking Nut Furnish 951-10722 Cylinder Head Assy MTD-NA
...
54
Cylinder Head Complete Furnish 951-10722 Cylinder Head Assy MTD-NA
...
55
Cylinder Head Gasket Furnish 951-10724 Short Block Assy MTD-NA
...
55
Cylinder Head Gasket Furnish 951-10722 Cylinder Head Assy MTD-NA
...
55
Cylinder Head Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
56
Dowel Pin, 10 × 16 Furnish 951-10724 Short Block Assy MTD-NA
...
57
Muffler Stud Assembly, 8 × 34 MTD-951-10657
...
58
Spark Plug MTD-951-10292A
...
58
GENUINE FACTORY PARTS® Spark Plug 751-10292 Snow, Ride MTD-490-250-F012
...
59
Gasket Muffler Furnish 951-10724 Short Block Assy MTD-NA
...
59
Gasket Muffler Furnish 951-10722 Cylinder Head Assy MTD-NA
...
59
Gaske tMuffler Furnish 951-10723 Gasket - Complete MTD-NA
...
59
Gasket Muffler Furnish 951-10952 Gasket Kit - External MTD-NA
...
61
Insulator Gasket Carburetor Furnish 951-10724 Short Block Assy MTD-NA
...
61
Carburetor Insulator Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
61
Carburetor Insulator Gasket Furnish 951-10952 Gasket Kit - External MTD-NA
...
62
Insulator Carburetor Furnish 951-10724 Short Block Assy MTD-NA
...
62
Carburetor Insulator Furnish 951-10723 Gasket - Complete MTD-NA
...
62
Carburetor Insulator Furnish 951-10952 Gasket Kit - External MTD-NA
...
63
Carburetor Gasket Furnish 951-10723 Gasket - Complete MTD-NA
...
63
Gasket Carburetor Furnish 951-10952 Gasket Kit - External MTD-NA
...
65
Carburetor Assembly MTD-951-12705
...
66
Choke Push Rod MTD-951-10640
...
69
Air Filter Heating Pipe Cover MTD-951-10635
...
70
Key Switch MTD-951-10637
...
71
Ignition Key MTD-951-10630
...
72
Air Cleaner Housing MTD-951-10634A
...
73
Choke Knob MTD-951-11284
...
77
Spring Governor MTD-951-10654
...
78
THROTTLE SPRING MTD-751P10664A
...
79
THROTTLE LINKAGE MTD-751P10665A
...
81
Throttle Control Assembly MTD-951-10758
...
82
THROTTLE LEVER KNOB MTD-751P10757A
...
84
Electric Starter, 110v Electric Start Unit Only MTD-951-10645A
...
91
Connecting Rod Assembly Furnish 951-10724 Short Block Assy MTD-NA
...
92
Piston Pin Clip Furnish 951-10724 Short Block Assy MTD-NA
...
93
Piston Furnish 951-10724 Short Block Assy MTD-NA
...
94
Pin Piston Furnish 951-10724 Short Block Assy MTD-NA
...
97
Push Rod Furnish 951-10723 Gasket - Complete MTD-951-10648
...
97
Push Rod Kit MTD-951-10648
...
98
Valve Kit Furnish 951-10722 Cylinder Head Assy MTD-951-10647A
...
98
Valve Kit Furnish 951-10723 Gasket - Complete MTD-951-10647A
...
98
Valve Kit (Incl. Ref No. 98 & 103) MTD-951-10647A
...
99
Valve Seal Furnish 951-10722 Cylinder Head Assy MTD-NA
...
100
Spring Valve Furnish 951-10722 Cylinder Head Assy MTD-NA
...
101
Exhaust Valve Spring Retainer Furnish 951-10722 Cylinder Head Assy MTD-NA
...
102
Exhaust Valve Adjuster Furnish 951-10722 Cylinder Head Assy MTD-NA
...
103
Intake Valve Furnish 951-10722 Cylinder Head Assy MTD-NA
...
103
Intake Valve Furnish 951-10723 Gasket - Complete MTD-NA
...
104
Internal Valve Spring Retainer Furnish 951-10722 Cylinder Head Assy MTD-NA
...
107
OIL DIPSTICK ASSEMBLY MTD-631-05020AP
...
108
OIL DIPSTICK ASSEMBLY MTD-631-05020AP
...
110
ENGINE/DIPSTICK COVER MTD-951-10662
...
110
ENGINE/DIPSTICK COVER Used with 631-05020AP MTD-951-11914
...
111
Fuel Cap Assembly MTD-951-12533
...
112
FAN COVER ASSEMBLY MTD-951-12644
...
113
Fuel Filter MTD-951-10652
...
115
Fuel Tank Assembly MTD-951-10653B
...
116
Nipple Fuel Tank MTD-951-10651
...
117
Fuel Line Kit (Incl. Ref No. 117 & 118) MTD-951-10650
...
121
Recoil Starter MTD-951-14151
...
121
Starter Handle MTD-731-05696
...
122
Fuel Drain Plug Furnish 951-10974 Carburetor Assy MTD-NA
...
123
Fuel Cup Fixed Bolt Packing Furnish 951-10974 Carburetor Assy MTD-NA
...
124
Fuel Drain Plug Furnish 951-10974 Carburetor Assy MTD-NA
...
125
Fuel Drain Plug Gasket Furnish 951-10974 Carburetor Assy MTD-NA
...
126
Fuel Cup Furnish 951-10974 Carburetor Assy MTD-NA
...
127
FLOAT Furnish 951-10974 Carburetor Assy MTD-731P09132A
...
128
Floating Pin Furnish 951-10974 Carburetor Assy MTD-NA
...
129
Needle Valve Spring Furnish 951-10974 Carburetor Assy MTD-NA
...
130
Needle Valve Furnish 951-10974 Carburetor Assy MTD-NA
...
131
O-ring Packing Furnish 951-10974 Carburetor Assy MTD-NA
...
132
Main Jet Furnish 951-10974 Carburetor Assy MTD-NA
...
133
Main Nozzle Furnish 951-10974 Carburetor Assy MTD-NA
...
134
Idle Jet Assembly Furnish 951-10974 Carburetor Assy MTD-NA
...
135
Idle Speed Adjusting Screw Furnish 951-10974 Carburetor Assy MTD-NA
...
136
Carburetor Body Furnish 951-10974 Carburetor Assy MTD-NA
...
137
Fiber Seal Furnish 951-10974 Carburetor Assy MTD-NA
...
138
Choke Plate Furnish 951-10974 Carburetor Assy MTD-NA
...
139
Throttle Shaft Furnish 951-10974 Carburetor Assy MTD-NA
...
140
Choke Plate Furnish 951-10974 Carburetor Assy MTD-NA
...
141
Choke Shaft Furnish 951-10974 Carburetor Assy MTD-NA
...
142
Cross Screw Furnish 951-10974 Carburetor Assy MTD-NA
...
143
Position Spring Furnish 951-10974 Carburetor Assy MTD-NA
...
144
Clip Furnish 951-10974 Carburetor Assy MTD-NA
...
145
Fuel Hose Furnish 951-10974 Carburetor Assy MTD-NA
...
146
Primer Base Furnish 951-10974 Carburetor Assy MTD-NA
...
147
PRIMER Furnish 951-10974 Carburetor Assy MTD-951-10639B
...
147
PRIMER MTD-951-10639B
...
149
WOODRUFF KEY MTD-751P10307A
...
xx
Short Block Not shown MTD-951-11062B
...
xx
Cylinder Head Assembly Not shown MTD-951-10722B
...
xx
GASKET KIT (COMPLETE) Not shown MTD-951-10723A
...
xx
Gasket Kit-External Not shown MTD-951-10661B
...
xx
Carburetor Repair Kit - HAUYI Not shown MTD-951-14050
...
xx
Carburetor Repair Kit - DENI Not shown MTD-951-12712
...
xx
complete engine Not shown MTD-952Z165-WU
...
xx
COMPLETE ENGINE 208cc Electric Start Unit, not shown MTD-952Z670-WUC
...
xx
RECOIL STARTER ASSEMBLY MTD-951-14151

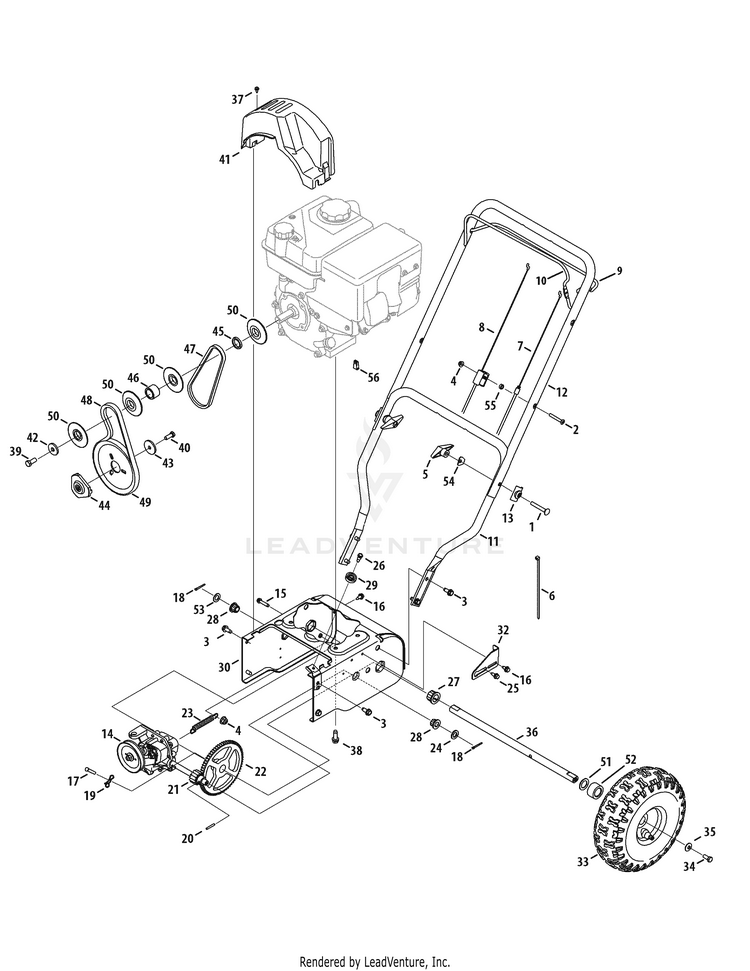

Handle, Frame & Drive System

...
...
1
Carriage Screw 5/16-18 x 2.25 MTD-710-0572
...
2
Mach. Screw 1/4-20 x 1.825 MTD-710-0605
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
Flange Lock Nut 1/4-20 MTD-712-04064
...
5
Knob, Wing, 5/16-18 MTD-720-0284
...
6
Cable Tie MTD-725-0157
...
7
Drive Cable MTD-946-04256
...
8
Auger Cable MTD-946-04236
...
8
Fitting, Dual Cable MTD-731-04216A
...
9
Auger Control MTD-747-1161A-0637
...
10
Drive Control MTD-747-1214
...
11
Lower Handle MTD-749-04147B
...
12
Upper Handle MTD-749-04459-0637
...
13
Handle Tab MTD-990-00053
...
14
Transmission Assembly MTD-918-04296B
...
15
TT Screw 1/4-20 x 1.25 MTD-710-0809
...
16
Screw 1/4-20 x .625 MTD-710-1652
...
17
Clevis Pin MTD-711-1364
...
18
Cotter Pin 1/8" Dia. x 1" Lg. MTD-714-0115
...
19
Bow Tie Cotter Pin 72 MTD-714-04040
...
20
Roll Pin MTD-915-0249
...
21
Pinion 14T MTD-717-04066A
...
22
Gear 70T MTD-917-04073A
...
23
Extension Spring MTD-932-0429A
...
24
Flat Washer MTD-936-0192
...
25
Shoulder Screw 1/4-20 MTD-738-04184A
...
26
Shoulder Screw 1/4-28 MTD-738-0924A
...
27
Hex Flange Bearing MTD-941-0245
...
28
Hex Flange Bearing MTD-741-04108
...
29
Cable Roller MTD-756-0625
...
30
WHEEL FRAME HOUSING Red MTD-784-0419C
...
30
WHEEL FRAME HOUSING (BLACK JACK) Black MTD-784-0419C-0691
...
30
WHEEL FRAME HOUSING Green MTD-784-0419C
...
31
AUGER CABLE GUIDE BRACKET (POWDER BLACK) MTD-790-00223B-0637
...
32
ADJUSTMENT CABLE BRACKET MTD-790-00224
...
33
WHEEL ASSEMBLY (10x4.00-4) MTD-634P07686
...
33
Tire Inner Tube Not shown MTD-734-04322
...
34
Lock Bolt 5/16-24 x .75 MTD-710-0627
...
35
Bell Washer .34 x .872 x .06 MTD-736-0242
...
36
Axle MTD-738-04321
...
37
Hex Screw #10-16 x .500 MTD-910-0224
...
38
TT Sems. Screw 3/8-16 x 1.0 MTD-710-0654A
...
39
Hex Bolt 3/8-24 x .875 MTD-710-0696
...
40
Lock Bolt 5/16-24 x .875 MTD-710-1245B
...
41
Belt Cover MTD-931-04162A
...
42
Flat Washer .406 ID x 1.25 OD MTD-736-0247
...
43
Flat Washer .34 ID x 1.50 OD MTD-736-0505
...
44
Pulley: Adapter .75 Dia. MTD-748-04067A
...
45
Spacer .876 x 1.25 x .19 MTD-950-1355
...
46
Spacer .876 x 1.25 x .86 MTD-950-1356
...
47
V-belt 3/8 x 21.108 Lg. MTD-954-04013
...
48
V-belt 3/8 x 26.375 Lg. MTD-954-05110
...
49
Auger Pulley MTD-956-04024
...
50
Pulley Half MTD-756-0569
...
51
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
52
Spacer MTD-731-05672A
...
53
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
54
Saddle Wash. .32" I.D. MTD-736-0451
...
55
Spacer MTD-750-04913
...
56
CONNECTOR-AMP 1-48 Electric Start Units Only MTD-729-04035

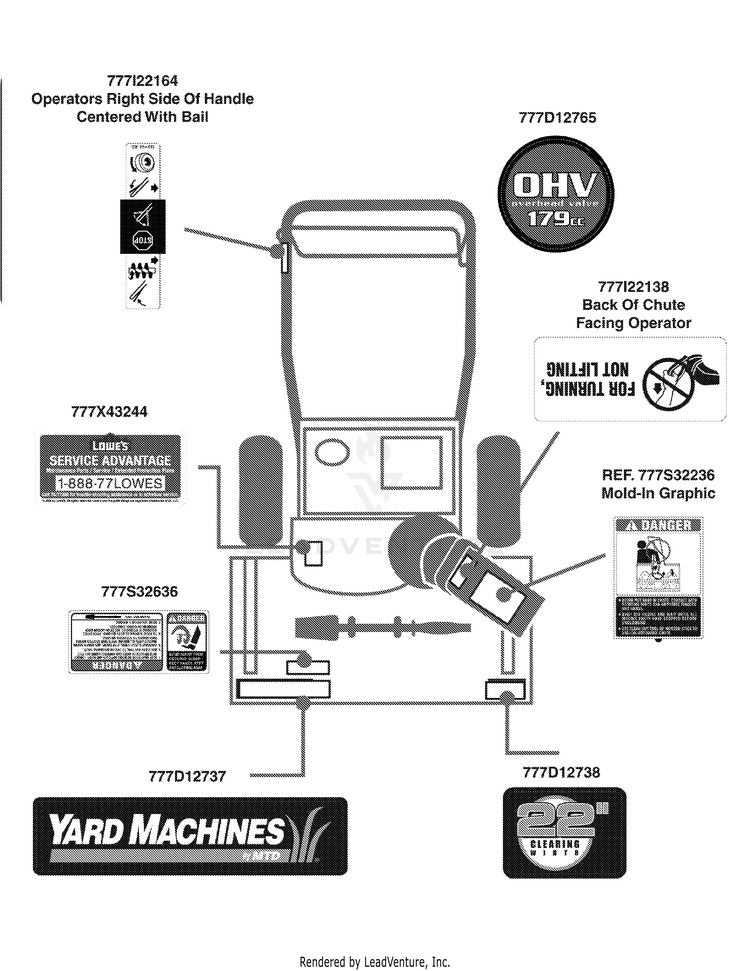

Label Map Lowes

...
...
777I22164
LABEL-HANDLE MTD-777I22164
...
777X43244
LABEL-LOWES:SERVICE MTD-NA
...
777S32636
LABEL-SNOW HOUSING MTD-777S32636
...
777D12737
LABEL-SNOW FRONT (LH) AUGER MTD-777D12737
...
777D12738
LABEL-FRONT (RH) AUGER MTD-777D12738
...
777S32236
LABEL:SNOW CHUTE MTD-777S32236
...
777I22138
LABEL-CHUTE MTD-777I22138
...
777D12765
LABEL-ENGINE SPN/OHV 179 MTD-777D12765
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
