Yard Machines 31A-020-900 (2006) Snow Thrower

Model: 31A-020-900 (2006)

Save Part Not Listed?
product name

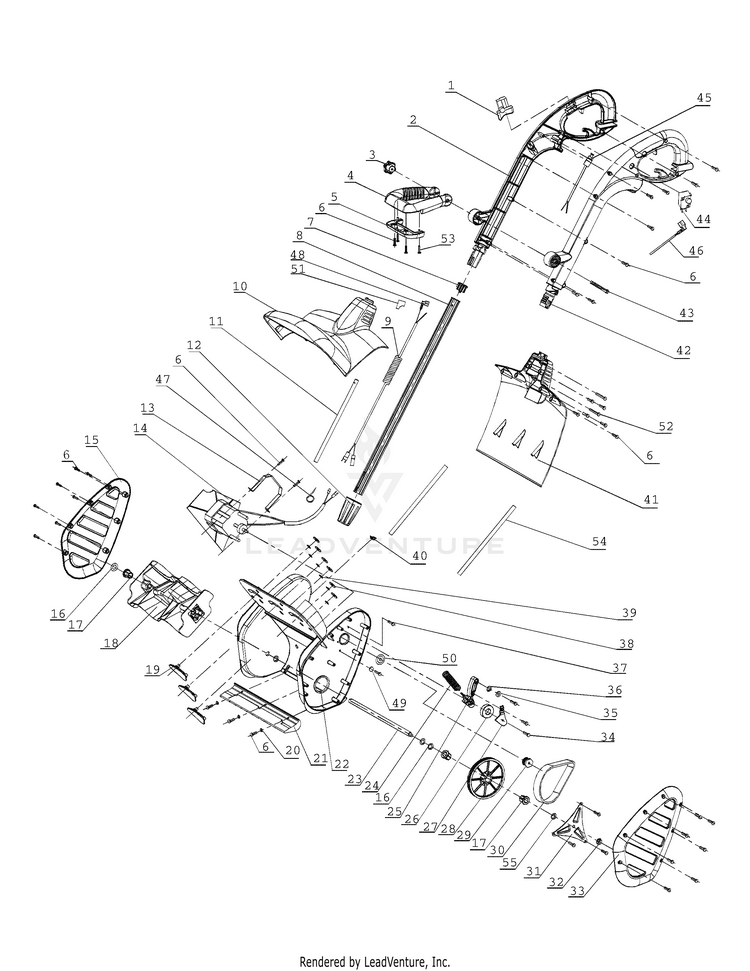

General Assembly

...
...
1
SWITCH MTD-NA
...
2
HANDLE RIGHT MTD-NA
...
3
KNOB MTD-NA
...
4
ASSIST HANDLE MTD-NA
...
5
ASSIST HANDLE MTD-NA
...
6
SCREW MTD-NA
...
7
PLUG PIPE MTD-NA
...
8
TUBE MTD-NA
...
9
SPRING CODE MTD-NA
...
10
HOUSING TOP MTD-NA
...
11
PIPE MTD-NA
...
12
SPOOL MTD-NA
...
13
FIXED PLATE MTD-NA
...
14
MOTOR MTD-NA
...
15
COVER RIGHT MTD-NA
...
16
WASHER MTD-NA
...
17
SLEEVE MTD-NA
...
18
BLADE MTD-NA
...
19
PLATE MTD-NA
...
20
WASHER MTD-NA
...
21
PLATE MTD-NA
...
22
MAIN BODY MTD-NA
...
23
SHAFT MTD-NA
...
24
SPRING MTD-NA
...
25
HOLDER BOTTOM MTD-NA
...
26
BEARING MTD-NA
...
27
HOLDER TOP MTD-NA
...
28
PULLEY MTD-NA
...
29
PULLEY ACTIVE MTD-NA
...
30
STRAP MTD-NA
...
31
FIXED PLATE MTD-NA
...
32
NUT MTD-MC-9NAC-08
...
33
COVER LEFT MTD-NA
...
34
SCREW MTD-NA
...
35
WASHER MTD-NA
...
36
WASHER MTD-NA
...
37
SCREW 10/24-0.5 MTD-710-04549
...
38
WASHER MTD-NA
...
39
WASHER MTD-NA
...
40
CAP MTD-NA
...
41
HOUSING BOTTOM MTD-NA
...
42
HANDLE LEFT MTD-NA
...
43
SCREW MTD-NA
...
44
PROTECT SWITCH MTD-NA
...
45
CONNECTOR MTD-NA
...
46
WIRE ASS'Y MTD-NA
...
47
BAND, PLASTIC MTD-NA
...
48
TERMINAL MTD-NA
...
49
WASHER MTD-NA
...
50
PLASTIC WASHER MTD-NA
...
51
PIPE MTD-NA
...
52
SCREW MTD-NA
...
53
SCREW MTD-NA
...
54
GASKET MTD-NA
...
55
WASHER MTD-NA
