Yard Machines 2800mvp 41AD28VG000 Gas String Trimmer

Model: 2800mvp 41AD28VG000 41AD28VG000 2800mvp

Save Part Not Listed?
product name

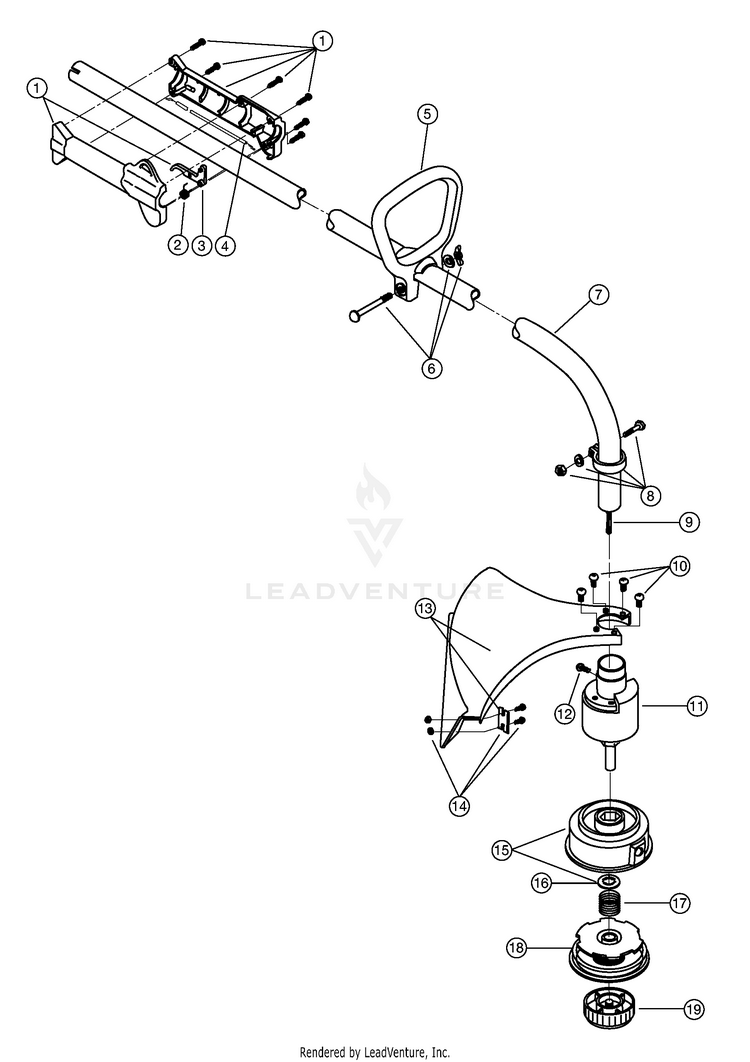

Boom And Trimmer

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY (includes 2 & 3) MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
ASSEMBLY, DRIVE SHAFT H MTD-791-181893
...
8
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
9
Flexible Drive Shaft MTD-753-04280
...
10
SCREW, #10-24X.50 M MTD-791-181858
...
11
SHAFT ASSEMBLY-BRG HOUSING MTD-791-181784
...
12
Anti-Rotation Screw MTD-791-145569
...
13
SHIELD ASSEMBLY WITH BLADE (includes 14) MTD-791-181659
...
14
BLADE ASSEMBLY MTD-791-181823
...
15
Outer Spool and Eyelet Assembly (includes 16) MTD-791-153619
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
LINE .080 Optional Accessories;not shown MTD-791-610375
...
xx
Reel and Line Assembly Optional Accessories;not shown MTD-791-153577B
...
xx
Bump Head Assembly (includes 15-19); Optional Accessories; not shown MTD-791-180897B
...
xx
Shoulder Strap Assembly Optional Accessories; not shown MTD-791-682075B
...
xx
Arnold 2-Cycle Oil Optional Accessories; not shown MTD-791-182780

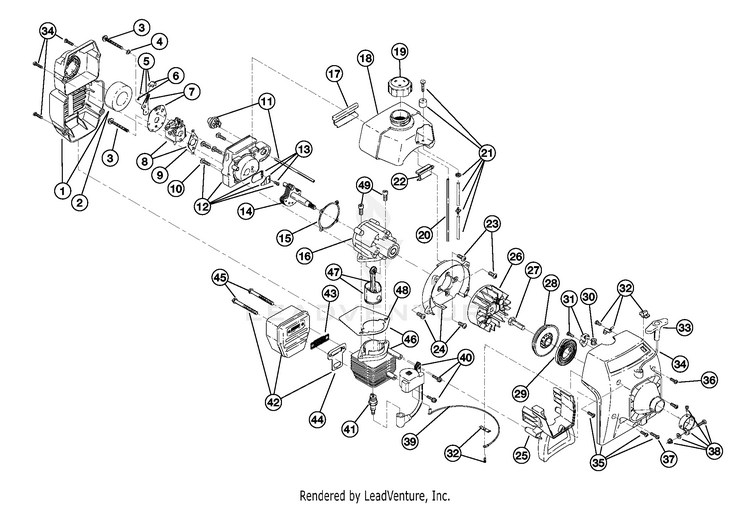

Engine

...
...
1
COVER ASSEMBLY (includes 2 & 42) MTD-753-04105
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
CARBURETOR ASSEMBLY (includes 9) MTD-753-04106
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 15) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
ASSEMBLY, POWER SHAFT MTD-791-181866
...
15
Crank Case Gasket MTD-753-1208
...
16
CRANKCASE ASSEMBLY: (includes 10, 14 & 24) MTD-791-181865
...
17
PAD, REAR MOUNT PAD MTD-791-612134
...
18
FUEL TANK ASSEMBLY (includes 19-21) MTD-791-181152
...
19
Fuel Cap Assembly MTD-791-182612
...
20
Fuel Return Line MTD-791-181086
...
21
FUEL LINE ASSEMBLY MTD-791-683398
...
22
PAD, FRONT MOUNTING MTD-791-145308
...
23
ASSEMBLY, SHROUD ASSEMB (includes 24) MTD-791-153520
...
24
SCREW, 1/4-20X.562 F MTD-791-181861
...
25
EXTN-SHROUD W/STAN MTD-753-04611
...
26
Flywheel Assembly MTD-753-05240
...
27
NUT, SQUARE DRIVE MTD-791-610303
...
28
START PULLEY KIT MTD-753-04232
...
29
Recoil Spring MTD-791-613102
...
30
Rope Guide MTD-791-611061
...
31
ASSEMBLY, PULLEY RETAIN MTD-791-181889
...
32
ASSEMBLY, SWITC (includes 39) MTD-791-182827
...
33
Pull Handle MTD-631-04164B
...
34
Rope MTD-791-613103
...
35
ASSEMBLY, START (includes 28-34 & 39) MTD-791-182828
...
36
SCREW:10-32X.5 MTD-1964
...
37
Cover Screw MTD-791-181345
...
38
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
39
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109
...
40
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109
...
41
Spark Plug MTD-791-610311B
...
42
MUFFLER ASSEMBLY WITH GASKET (includes 43-45) MTD-753-04110
...
43
SCRN:SPK ARST:A-31 MTD-791-182747
...
44
Muffler Gasket MTD-753-04619
...
45
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
46
Cylinder Assembly (includes 51 & 52) (includes 48 & 49) MTD-753-04814
...
47
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
48
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
49
Cylinder Bolt MTD-791-182723
...
xx
ENGINE GASKET KIT Not Shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit (Walbro) Not Shown MTD-791-180602
...
xx
O.E.M. Carburetor Repair Kit (Zama) Not Shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit (Walbro) Not Shown MTD-791-181069
...
xx
Gasket Diaphragm Repair Kit (Zama) Not Shown MTD-791-180091
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
SHBLK:31CC:NON-CLU (includes 10, 14, 16, 24, 41, 46-49); Not Shown MTD-753-04146
...
xx
SET, STARTER HOUSI Not Shown MTD-791-181501
...
xx
SEAL, SEAL Not Shown MTD-791-610309
