Yard Machines 2800m 41CD280G000 Gas String Trimmer

Model: 2800m 41CD280G000 41CD280G000 2800m

Save Part Not Listed?
product name

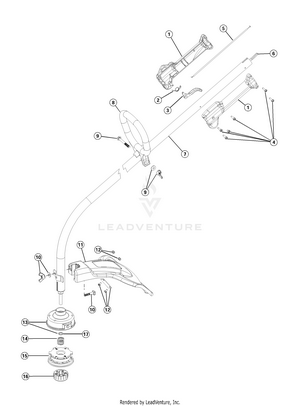

Boom And Trimmer Parts

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY (includes 2-4) MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
SET SCREW MTD-791-145888
...
5
Throttle Cable MTD-791-182068
...
6
Flexible Drive Shaft MTD-753-04280
...
7
DRIVE SHAFT HOUSING ASSEMBLY (includes 6 & 13) MTD-753-04281
...
8
D-HANDLE AND HARDWARE (includes 9) MTD-791-153064
...
9
D-Handle Hardware MTD-791-181587
...
10
Guard Mounting Hardware MTD-753-04282
...
11
Guard MTD-753-04283
...
12
Blade Assembly MTD-791-180553
...
13
OUTER REEL W/RETAINING RING MTD-753-04284
...
14
Spring MTD-791-610317B
...
15
Inner Reel MTD-753-1155
...
16
Bump Head Knob Assembly MTD-791-153066B
...
17
Retainer MTD-791-610660
...
xx
Reel & Line Assembly Optional Accessory; Not Shown MTD-791-153577B
...
xx
Shoulder Strap Assembly Optional Accessory; Not Shown MTD-791-682075B

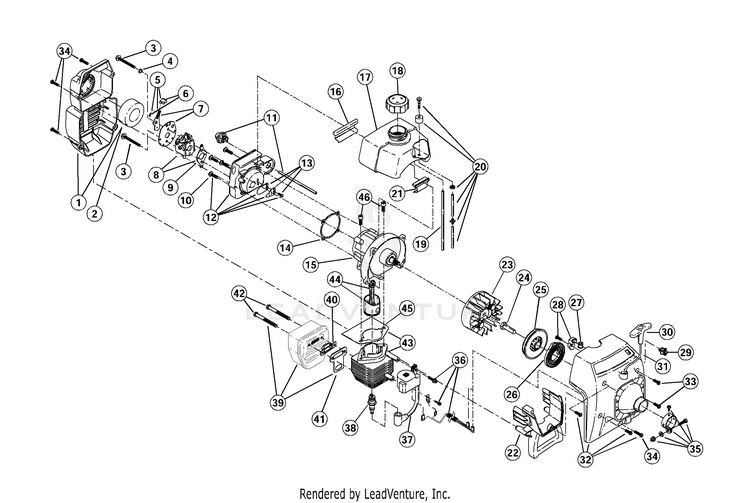

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 42) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
CARBURETOR WITH FUEL LINES (includes 9) MTD-753-04320
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 15) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Crank Case Gasket MTD-753-1208
...
15
CRANKCASE SVC ASSEMBLY:45. (includes 10, 14 & 24) MTD-753-04321
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
FUEL TANK ASSEMBLY (includes 18-20) MTD-791-182767
...
18
Fuel Cap Assembly MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
FUEL LINE ASSEMBLY MTD-791-683398
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
EXTN-SHROUD W/STAN MTD-753-04611
...
23
Flywheel Assembly MTD-753-05240
...
24
NUT, SQUARE DRIVE MTD-791-610303
...
25
START PULLEY KIT MTD-753-04232
...
26
Recoil Spring MTD-791-613102
...
27
Rope Guide MTD-791-611061
...
28
ASSEMBLY, PULLEY RETAIN MTD-791-181889
...
29
SWITCH:POS ON/OFF:WEAD (includes 36) MTD-753-04241
...
30
Pull Handle MTD-631-04164B
...
31
Rope MTD-791-613103
...
32
HOUSING ASSEMBLY:ST (includes 25-31 & 34) MTD-753-04329
...
33
SCREW:10-32X.5 MTD-1964
...
34
Cover Screw MTD-761-181345
...
35
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
36
WIRE:LEAD:RED/BK MTD-794-00028
...
37
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
38
Spark Plug MTD-791-610311B
...
39
MUFFLER ASM CAT NLAUD (includes 40-42) MTD-753-05169
...
40
SCRN:SPK ARST:A-31 MTD-791-182747
...
41
Muffler Gasket MTD-753-04619
...
42
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
43
Cylinder Assembly (includes 51 & 52) (includes 45 & 46) MTD-753-04814
...
44
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
45
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
46
Cylinder Bolt MTD-791-182723
...
xx
ENGINE GASKET KIT Not Shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit (Walbro) Not Shown MTD-791-180602
...
xx
Gasket Diaphragm Repair Kit (Walbro) Not Shown MTD-791-181069
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
SHBLK:31CC (includes 10, 15, 38, 43-46); Not Shown MTD-753-04322
