product name

Yard Machines 2800m 41BD280G700 (2004) Gas String Trimmer

Model: 2800m 41BD280G700 41BD280G700 2800m (2004)

Back To Assemblies

Save Part Not Listed?
product name

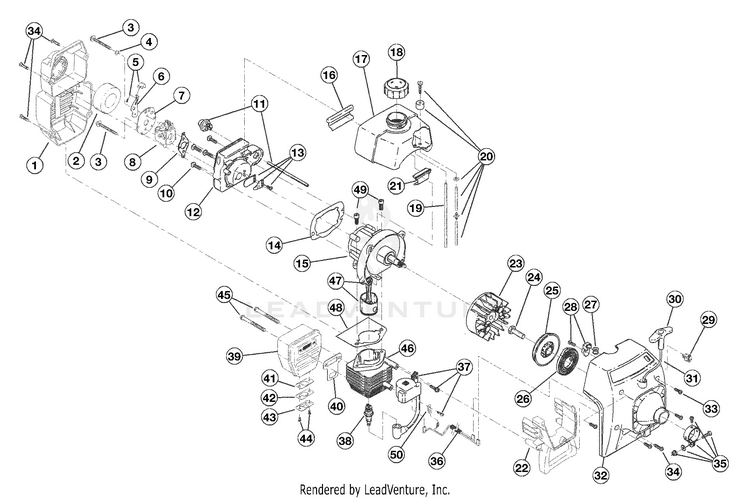

Engine Parts

...
...
1
Air Cleaner/Muffler Cover Assembly (includes 2 & 34) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
6
CHOKE LEVER ASSEMBLY:W/ (includes 5) MTD-753-04418
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 6) MTD-753-04419
...
8
CARBURETOR ASSEMBLY (includes 9) MTD-753-04106
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10, 13 & 14) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE SVC ASSEMBLY:45. (includes 10) MTD-753-04321
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
FUEL TANK ASSEMBLY (includes 18-20) MTD-791-181152
...
18
Fuel Cap Assembly MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
FUEL LINE ASSEMBLY MTD-791-683398
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
EXT-SHROUD W/HOLE (includes 34) MTD-753-04702
...
23
Flywheel Assembly MTD-753-05240
...
24
NUT, SQUARE DRIVE MTD-791-610303
...
25
START PULLEY KIT MTD-753-04232
...
26
Recoil Spring MTD-791-613102
...
27
Rope Guide MTD-791-611061
...
28
ASSEMBLY, PULLEY RETAIN MTD-791-181889
...
29
SWITCH:POS ON/OFF:WEAD (includes 36) MTD-753-04241
...
30
Pull Handle MTD-631-04164B
...
31
Rope MTD-791-613103
...
32
HOUSING ASSEMBLY:ST (includes 23-31, 33 & 34) MTD-753-04329
...
33
SCREW:10-32X.5 MTD-1964
...
34
Cover Screw MTD-791-181345
...
35
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
36
WIRE:LEAD:RED/BK MTD-794-00028
...
37
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
38
Spark Plug MTD-791-610311B
...
39
MUFFLER ASM CAT NLAUD (includes 40-45) MTD-753-05169
...
40
Exhaust Gasket MTD-753-04619
...
41
SCREEN-SPA MTD-753-04689
...
42
SEAL MTD-753-04690
...
43
HOOD MTD-753-04691
...
44
MUFFLER ASSEMBLY MTD-753-04315
...
45
Muffler Mounting Bolts MTD-710-04188A
...
46
Cylinder Assembly (includes 51 & 52) (includes 48 & 49) MTD-753-04814
...
47
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
48
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
49
Cylinder Bolt MTD-791-182723
...
50
TAB, GROUND MTD-791-611063
...
xx
Piston Ring not shown MTD-753-1209
...
xx
SHBLK:31CC (includes 15, 38, 46-49) not shown MTD-753-04322
Schematic Image Zoomed
