Yard Machines 2800m 41BD280G000 Gas String Trimmer

Model: 2800m 41BD280G000 41BD280G000 2800m

Back To Assemblies

Save Part Not Listed?
product name

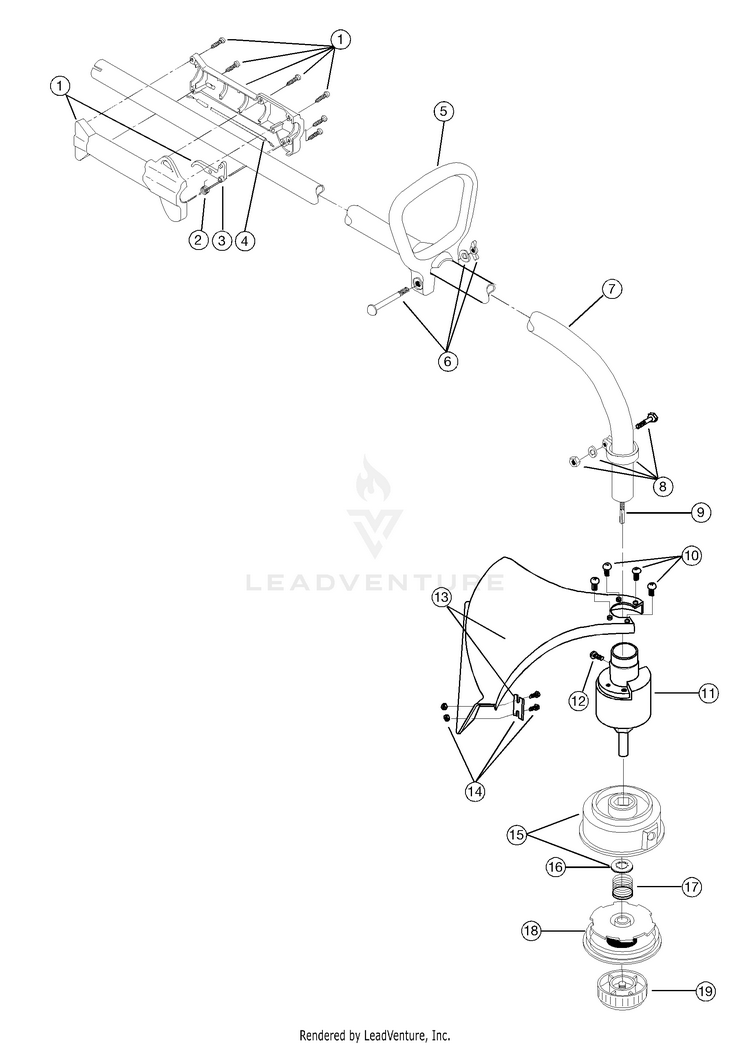

Boom And Trimmer Parts

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY (includes 2 & 3) MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
ASSEMBLY, DRIVE SHAFT H MTD-791-181893
...
8
CLAMP ASSEMBLY-LOWER (includes 12) MTD-791-153597
...
9
Flexible Drive Shaft MTD-753-04280
...
10
SCREW, #10-24X.50 M MTD-791-181858
...
11
SHAFT ASSEMBLY-BRG HOUSING MTD-791-181784
...
12
Anti-Rotation Screw MTD-791-145569
...
13
Shield and Blade Assembly (includes 14) MTD-791-683274
...
14
Blade Assembly MTD-791-682061
...
15
Outer Spool and Eyelet Assembly (includes 16) MTD-791-153619
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
LINE .080 Optional Accessory; not shown MTD-791-610375
...
xx
Reel and Line Assembly Optional Accessory; not shown MTD-791-153577B
...
xx
Bump Head Assembly Optional Accessory; (includes 15-19); not shown MTD-791-180897B
...
xx
Shoulder Strap Assembly Optional Accessory; not shown MTD-791-682075B
