Yard Machines 280 41AD-280G000 Gas String Trimmer

Model: 280 41AD-280G000 41AD-280G000 280

Save Part Not Listed?
product name

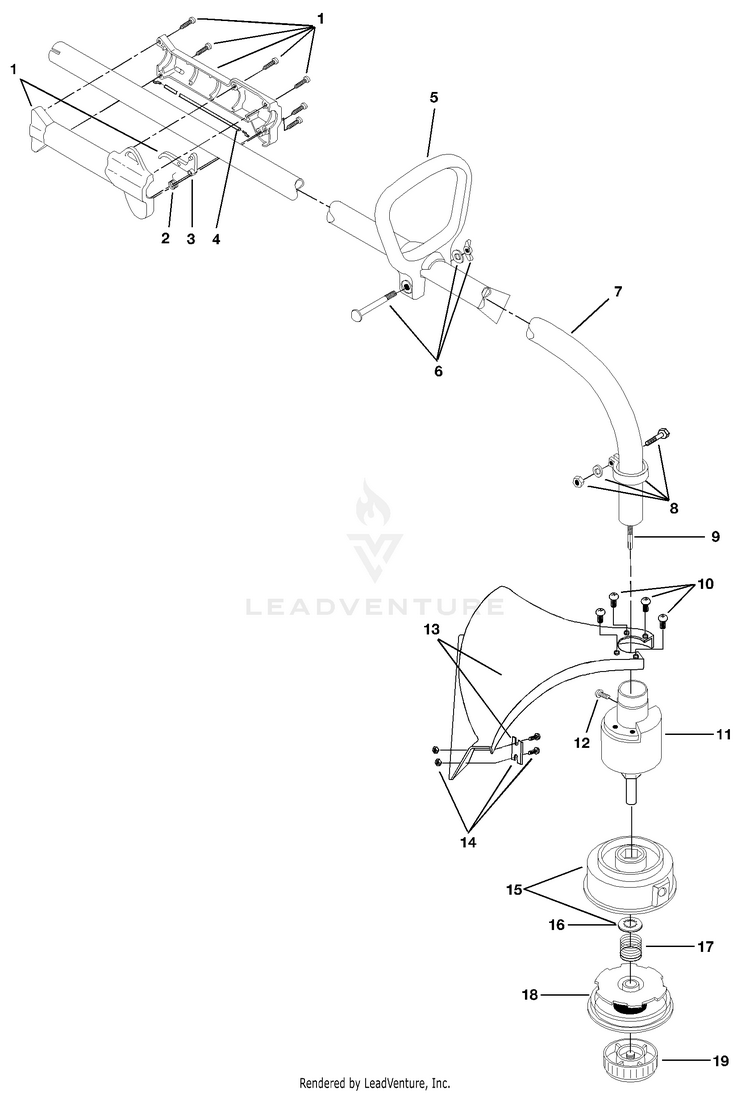

Boom And Trimmer Parts

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY (Incl. Ref No. 2 & 3) MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
ASSEMBLY, DRIVE SHAFT H MTD-791-181893
...
8
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
9
Flexible Drive Shaft MTD-753-04280
...
10
SCREW, #10-24X.50 M MTD-791-181858
...
11
SHAFT ASSEMBLY-BRG HOUSING MTD-791-181784
...
12
Anti-Rotation Screw MTD-791-145569
...
13
Shield and Blade Assembly (Incl. Ref No. 14) MTD-791-683274
...
14
Blade Assembly MTD-791-682061
...
15
Outer Spool and Eyelet Assembly (Incl. Ref No. 16) MTD-791-153619
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
LINE .080 Not Shown MTD-791-610375
...
xx
Reel & Line Assembly Not Shown MTD-791-153577B
...
xx
Bump Head Assembly Not Shown MTD-791-180897B
...
xx
Shoulder Strap Assembly Not Shown MTD-791-682075B
...
xx
OIL:BOTTLE 2 CYCLE Not Shown MTD-737-04037

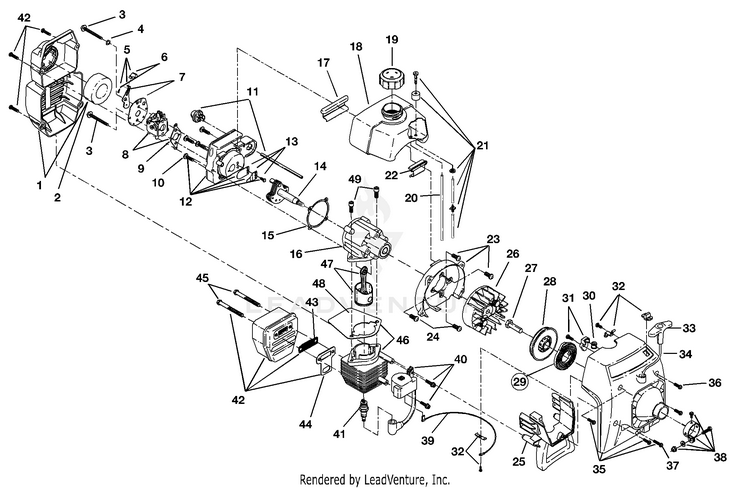

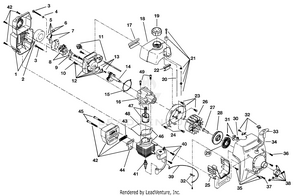

Engine

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 42) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
Carburetor Mounting Screw Assembly MTD-791-181345
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
CARB ASSEMBLY A-SERIES (includes 9 & 21) MTD-791-182875
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-182616
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 15) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
ASSEMBLY, POWER SHAFT MTD-791-181866
...
15
Carburetor Mount Gasket MTD-753-1208
...
16
CRANKCASE ASSEMBLY: (includes 10, 14 & 24) MTD-791-181865
...
17
PAD, REAR MOUNT PAD MTD-791-612134
...
18
FUEL TANK ASSEMBLY (includes 19-21) MTD-791-181152
...
19
Fuel Cap Assembly MTD-791-180000B
...
20
Fuel Return Line MTD-791-181086
...
21
Fuel Line Assembly MTD-791-682039
...
22
PAD, FRONT MOUNTING MTD-791-145308
...
23
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
24
SCREW, 1/4-20X.562 F MTD-791-181861
...
25
EXTN-SHROUD W/STAN MTD-753-04611
...
26
Flywheel Assembly MTD-753-05240
...
27
NUT, SQUARE DRIVE MTD-791-610303
...
28
START PULLEY KIT MTD-753-04232
...
29
Recoil Spring MTD-791-613102
...
30
Rope Guide MTD-791-611061
...
31
ASSEMBLY, PULLEY RETAIN MTD-791-181889
...
32
ASSEMBLY, SWITC (includes 39) MTD-791-182827
...
33
Pull Handle MTD-631-04164B
...
34
Rope MTD-791-613103
...
35
ASSEMBLY, START (includes 28-34 & 39) MTD-791-182828
...
36
SCREW:10-32X.5 MTD-1964
...
37
Cover Screw MTD-791-181345
...
38
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
39
LEAD, WIRE IDC 500 MTD-791-180036
...
40
IGNITION MODULE ASSEMBLY MTD-753-04125
...
41
Spark Plug MTD-791-610311B
...
42
MUFFLER ASM CAT NLAUD (includes 43-45) MTD-753-05169
...
43
SCRN:SPK ARST:A-31 MTD-791-182747
...
44
Muffler Gasket MTD-753-04619
...
45
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
46
Cylinder Assembly (includes 51 & 52) (includes 48 & 49) MTD-753-04814
...
47
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
48
Cylinder Gasket MTD-791-610674
...
49
Cylinder Bolt MTD-791-182505
...
xx
KIT-ENGINE GASK not shown MTD-791-182067
...
xx
O.E.M. Carburetor Repair Kit (Walbro) not shown MTD-791-180602
...
xx
O.E.M. Carburetor Repair Kit (Zama) not shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit (Walbro) not shown MTD-791-181069
...
xx
Gasket Diaphragm Repair Kit (Zama) not shown MTD-791-180091
...
xx
RING:31CC:PSTN:BARREL FACED not shown MTD-791-180530
...
xx
SHORT BLOCK ASSEMBLY (includes 10, 14, 16, 24, 41, 46-49); not shown MTD-791-182792
...
xx
SET, STARTER HOUSI not shown MTD-791-181501
...
xx
SEAL, SEAL not shown MTD-791-610309
