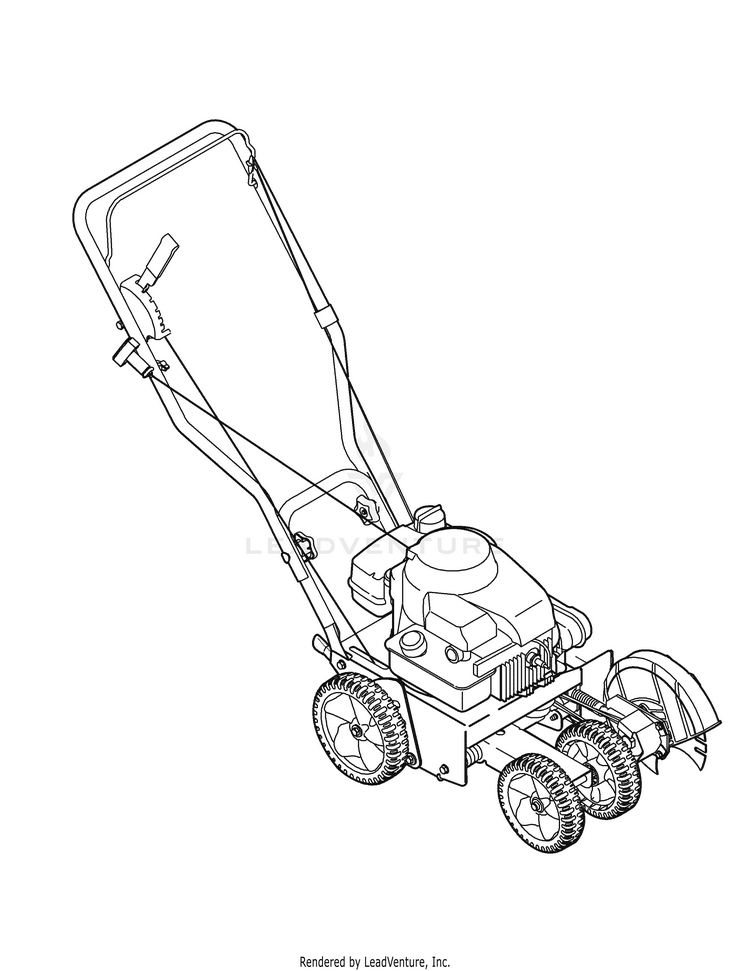

Yard Machines 25B-551A729 (2006) Edger

Model: 25B-551A729 (2006)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-759-3336
...
xx
Pre Filter MTD-NA
...
xx
AIR FILTER MTD-TC-35066
...
xx
34" CONTROL CABLE MTD-946-04052
...
xx
WHEEL ADJUSTMENT CABLE MTD-946-04036
...
xx
LEVER DEPTH MTD-781-0742-0637
...
xx
Grip MTD-720-0142
...
xx
Curb Height Adjustment Lever MTD-687-02022
...
xx
Flywheel Pulley MTD-756-1150A
...
xx
Drive Belt MTD-954-04032B
...
xx
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
xx
Blade (Edger) MTD-781-0080-0637
...
xx
Blade - Tri-Star Trencher MTD-781-0748
...
xx
Wheels - Front MTD-734-1988
...
xx
Wheels - Rear MTD-734-1987

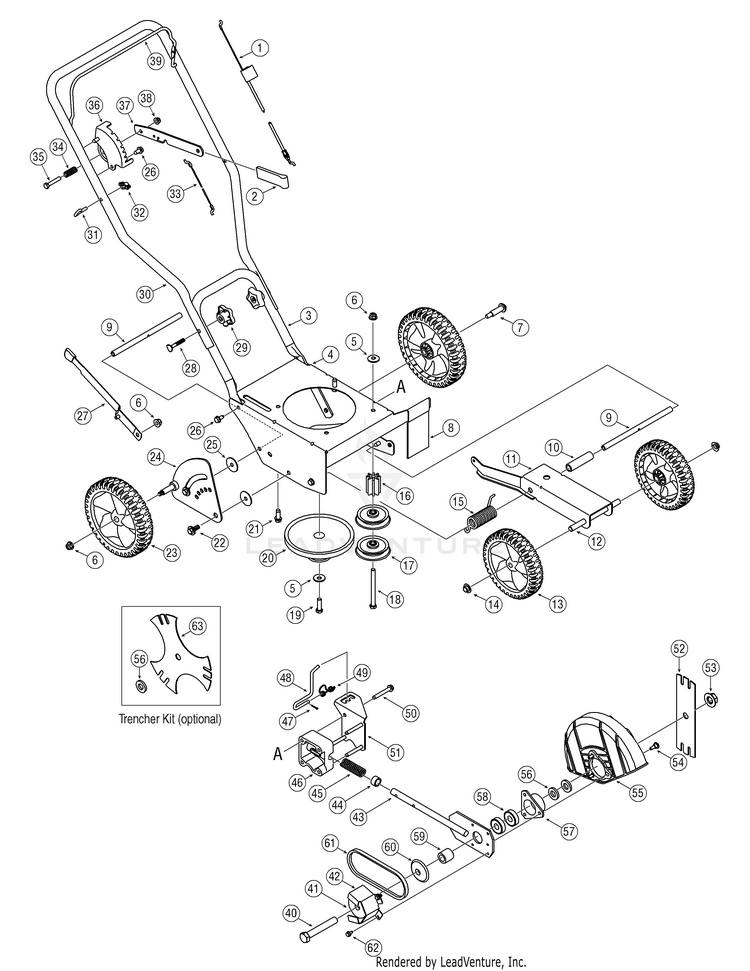

General Assembly

...
...
1
34" CONTROL CABLE MTD-946-04052
...
2
Grip MTD-720-0142
...
3
Lower Handle MTD-749-04234
...
4
Frame MTD-787-01304
...
5
Bell Washer .396 x 1.14 x .095 MTD-736-0452
...
6
Flange Lock Nut 3/8-16 MTD-712-04065
...
7
Shoulder Screw MTD-738-0929
...
8
Debris Guard MTD-731-05063
...
9
Spacer .50 x 9.25 MTD-711-04440
...
10
Spacer .525 x .775 x 3 MTD-750-04129
...
11
Bracket Duel Wheel MTD-787-01239
...
12
AXLE SHAFT MTD-711-04361
...
13
Wheel 7 x 1.8 Spoke Bar MTD-734-1988
...
14
Push Cap MTD-726-0299
...
15
Torsion Spring MTD-732-04045
...
16
MOUNT SPACER MTD-950-04142
...
17
Idler Pulley MTD-756-04148
...
18
HH Cap Screw 3/8-16 x 4.00 MTD-710-0411
...
19
HH Cap Screw 3/8-24 x 1.25 MTD-710-0191
...
20
Combination Flywheel Pulley MTD-756-1150A
...
21
TT Screw 3/8-16 x 1 MTD-710-0654A
...
22
Shoulder Screw MTD-738-04149
...
23
Wheel 8 x 1.8 Spoke Bar MTD-734-1987
...
24
HEIGHT LEVER ASSEMBLY MTD-687-02125A
...
25
Flat Washer .385 x 1.5 x .075 MTD-736-0234
...
26
AB Screw 5/16-12 x .75 MTD-710-0726
...
27
Lever Assembly MTD-687-02022
...
28
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
29
Star Knob MTD-720-04072A
...
30
UPPER HANDLE MTD-749-04183A
...
31
Eye Bolt MTD-710-1205
...
32
ERS Handle Knob MTD-720-0279
...
33
WHEEL ADJUSTMENT CABLE MTD-946-04036
...
34
SPRING MTD-932-0369
...
35
HH Cap Screw 5/16-18 x 1.75 MTD-710-3180
...
36
Depth Index Bracket MTD-781-0741A
...
37
LEVER DEPTH MTD-781-0742-0637
...
38
Flange Lock Nut 5/16-18 MTD-712-04063
...
39
BLADE CONTROL BAIL MTD-747-0976B
...
40
HH Cap Screw 5/8-18 x 4 MTD-710-1143A
...
41
3/8" "V"-Pulley MTD-956-0449
...
42
Belt Guard MTD-781-0427-0637
...
43
Blade Plate Assembly MTD-687-02126
...
44
Spacer .628 ID x .875 OD MTD-750-0547
...
45
Compression Spring MTD-932-04169
...
46
Bearing Block MTD-931-04207
...
47
Cotter Pin MTD-714-3010
...
48
Blade Adjustment Rod MTD-747-04110A
...
49
Double Torsion Spring MTD-732-0188A
...
50
SCREW MTD-710-04389
...
51
Index Bracket MTD-787-01081A
...
52
Blade (Edger) MTD-781-0080-0637
...
53
HEX NUT MTD-712-0417A
...
54
SHOULDER SCREW .375X.280:1/4-14 MTD-738-0706D
...
55
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
56
Flat Washer .635 x 1.24 x .181 MTD-736-04088
...
57
Bearing Cup MTD-718-04012
...
58
Ball Brg. .625" I.D. x 1.574" O.D. x .47" MTD-941-0524A
...
59
Spacer, .63 x 1.12 x 1.06 MTD-950-04105
...
60
3/8" "V"-Pulley MTD-956-0449
...
61
Drive Belt MTD-954-04032B
...
62
TT Screw 1/4-20 x .500 MTD-710-0599
...
63
Tri Star Blade MTD-781-0748
