Yard Machines 25B-52MH700 (2019) Edger

Model: 25B-52MH700 (2019)

Back To Assemblies

Save Part Not Listed?
product name

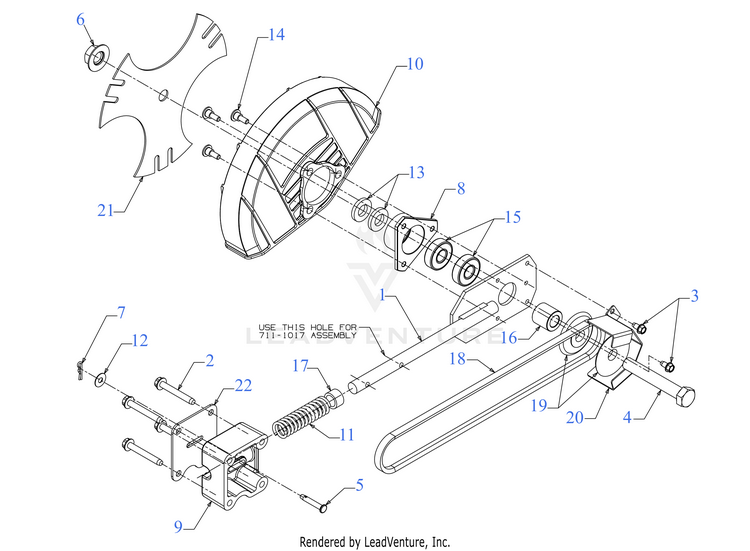

Blade

...
...
1
BLADE PLATE ASSEMBLY MTD-687-02126
...
2
SCREW MTD-710-04389
...
3
SCREW 1/4-20 X.500 MTD-710-0599
...
4
SCREW 5/8-18 x 4 GR5 MTD-710-1143A
...
5
CLEVIS PIN MTD-711-1017
...
6
HEX NUT MTD-712-0417A
...
7
COTTER PIN .072 DIA MTD-714-0104
...
8
BEARING CUP MTD-718-04012
...
9
BEARING BLOCK MTD-931-04207
...
10
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
11
COMPRESSION SPRING MTD-932-04169
...
12
FLAT WASHER .283 ID x .749 x .030 MTD-736-0342
...
13
FLAT WASHER .635 x 1.24 x .181 MTD-736-04088
...
14
SHOULDER SCREW .375X.280:1/4-14 MTD-738-0706D
...
15
BALL BEARING MTD-941-0524A
...
16
SPACER MTD-950-04105
...
17
SPACER MTD-750-0547
...
18
BELT 3L x 35.80 MTD-954-04032B
...
18
Genuine Factory Parts EDGER BELT (754-04032B) Retail Packaged<BR/> Part MTD-490-501-M054
...
19
SHEAVE MTD-956-0449
...
20
BELT GUARD (POWDER BLACK) MTD-781-0427-0637
...
21
BLADE TRI-CUT (POWDER BLACK) MTD-781-0748
...
22
COVER PLATE MTD-787-01075A
Schematic Image Zoomed
