Yard Machines 25B-52J1700 (2014) Edger

Model: 25B-52J1700 (2014)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

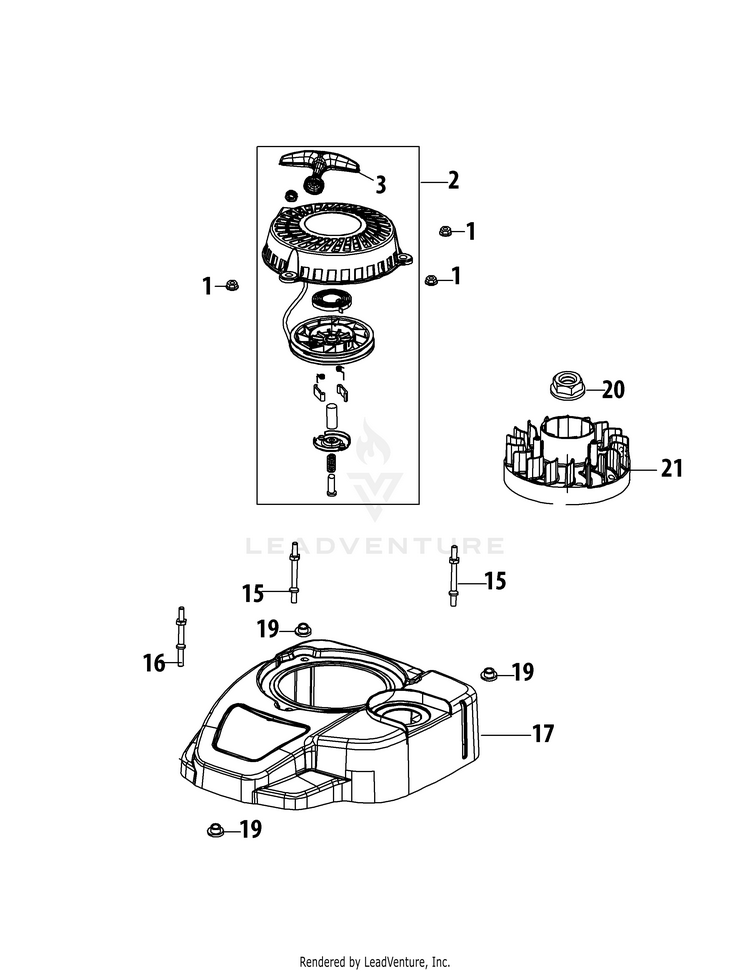

1T65RU Flywheel & Shroud

...
...
1
Nut M6X10Mm Starter/Carb/Muff MTD-712-05015
...
2
Starter Recoil Assembly MTD-951-05167
...
3
Starter Handle MTD-731-07925
...
15
Starter/Shroud Rear Stud M6×75 MTD-710-06208
...
16
Starter/Shroud Front Stud M6×73 MTD-710-06209
...
17
ENGINE SHROUD MTD-631P05196A
...
19
Engine Shroud Spacer MTD-750-05320
...
20
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
21
ENGINE FLYWHEEL MTD-925-06190A
