Yard Machines 25B-52J1700 (2014) Edger

Model: 25B-52J1700 (2014)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

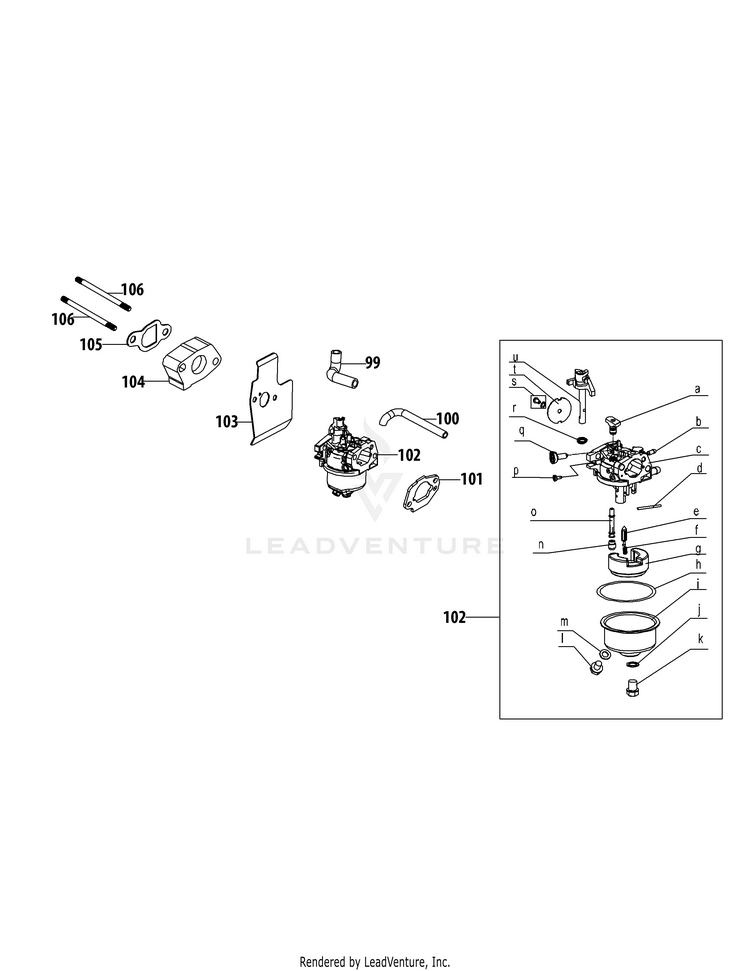

1T65RU Carburetor

...
...
99
Breather Hose MTD-735-05055
...
100
Primer Hose MTD-735-05056
...
101
AIR FILTER BASE GASKET MTD-951-14419A
...
102
PRIMER ASSEMBLY MTD-993-00142
...
103
CARBURETOR GASKET MTD-921-04706A
...
104
Carburetor Insulator MTD-951-14698
...
105
Carburetor Insulator Gasket MTD-951-11528
...
106
Carb Stud M6×98 MTD-710-06205
...
xx
Carb Kit (includes d,e,f,g,h,j,m,n,o,p) (not shown) MTD-951-14726
...
a
Idle Jet Assembly MTD-NA
...
b
Primer Port MTD-NA
...
c
Carburetor Body MTD-NA
...
d
Float Pin MTD-NA
...
e
Needle Valve MTD-NA
...
f
Needle Valve Spring MTD-NA
...
g
Float MTD-NA
...
h
Fuel Bowl O-Ring MTD-NA
...
i
Fuel Bowl MTD-NA
...
j
Fuel Bowl Gasket MTD-NA
...
k
Fuel Bowl Mounting Bolt MTD-NA
...
l
Fuel Drain Plug MTD-NA
...
m
Fuel Drain Plug Gasket MTD-NA
...
n
Main Jet MTD-NA
...
o
Emulsion Tube MTD-NA
...
p
Idle Mixture Screw MTD-NA
...
q
Idle Speed Adjusting Screw MTD-NA
...
r
Throttle Shaft Fiber O-Ring MTD-NA
...
s
Screw M3X6 Throttle Plate MTD-NA
...
t
Throttle Plate MTD-NA
...
u
Throttle Shaft MTD-NA
