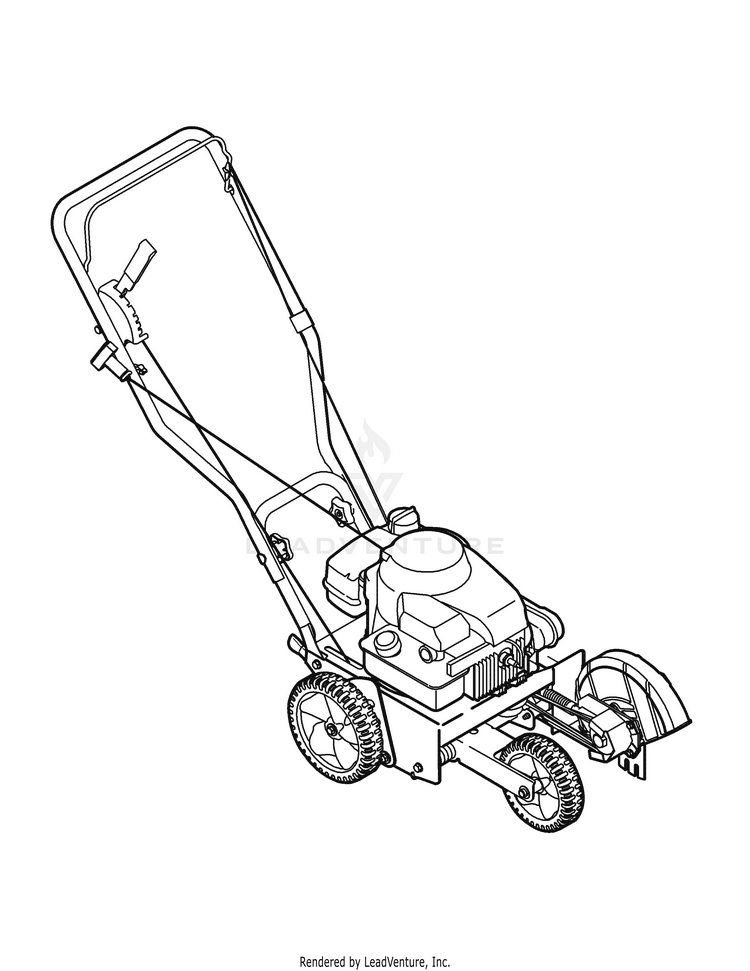

Yard Machines 25B-520C000 (2009) Edger

Model: 25B-520C000 (2009)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-490-200-0011
...
xx
23" CONTROL CABLE MTD-946-04035
...
xx
Wheel Adjustment Cable MTD-946-04036
...
xx
LEVER DEPTH MTD-781-0742-0637
...
xx
Flywheel Pulley MTD-756-1150A
...
xx
Drive Belt MTD-954-04032B
...
xx
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
xx
Blade - Edger MTD-781-0080-0637
...
xx
Blade - Tri Star MTD-781-0748-0637
...
xx
Star Knob MTD-720-04072A
...
xx
BLADE CONTROL BAIL MTD-747-0976B
...
xx
Wheels - Front MTD-734-1988
...
xx
Wheels - Rear MTD-734-1987

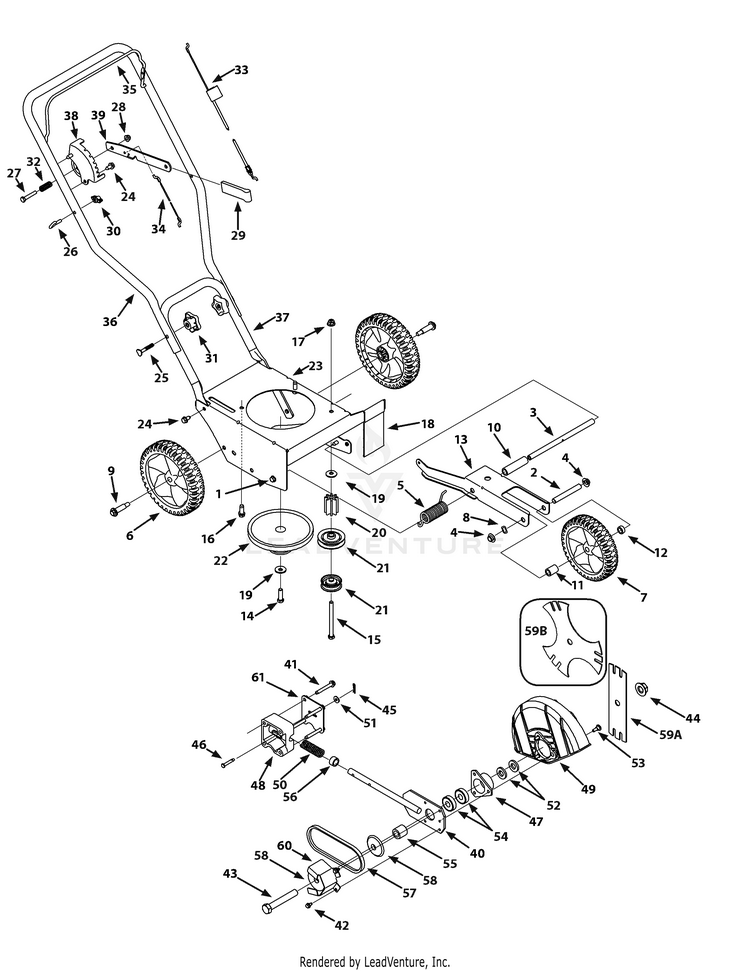

General Assembly

...
...
1
Hex Head Screw 3/8-16 MTD-710-0870
...
2
Axle .50 x 3.8 MTD-711-04362
...
3
Axle .50 x 9.25 MTD-711-04440
...
4
Push Cap 1/2" rod MTD-726-0299
...
5
Torsion Spring MTD-732-04045
...
6
Wheel 8x1.8 MTD-734-1987
...
7
Wheel 7x1.8 MTD-734-1988
...
8
Wave Washer .53" I.D. MTD-736-0232
...
9
Shoulder Screw, 3/8-16 MTD-738-0929
...
10
Spacer MTD-750-04129
...
11
SPACER MTD-750-04427
...
12
Spacer, .525 x .775 x .3125 MTD-750-04428
...
13
Wheel Bracket MTD-787-01240
...
14
Screw 3/8-24 MTD-710-0191
...
15
Screw 3/8-16 MTD-710-0411
...
16
Screw, 3/8-16 MTD-710-0654A
...
17
Flange Lock Nut, 3/8-16 MTD-712-04065
...
18
Debris Guard MTD-731-05063
...
19
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
20
Pulley Mount Spacer MTD-950-04142
...
21
Flat Idler Pulley, 2.5 OD MTD-756-04148
...
22
Combination Flywheel Pulley MTD-756-1150A
...
23
Frame MTD-787-01304-0637
...
24
Hex Screw, 5/16-12 MTD-710-0726
...
25
Carriage Bolt, 5/16-18 MTD-710-1174
...
26
Rope Guide (Eye Bolt) MTD-710-1205
...
27
Hex Screw, 5/16-18 MTD-710-3180
...
28
Lock Flange Nut, 5/16-18 MTD-712-04063
...
29
Grip MTD-720-0142
...
30
Wing Nut MTD-720-0279
...
31
Star Knob MTD-720-04072A
...
32
Compression Spring MTD-932-0369
...
33
23" CONTROL CABLE MTD-946-04035
...
34
Wheel Adjustment Cable MTD-946-04036
...
35
BLADE CONTROL BAIL MTD-747-0976B
...
36
UPPER HANDLE MTD-749-04183A
...
37
LOWER HANDLE MTD-749-04234
...
38
Depth Index Bracket MTD-781-0741A
...
39
LEVER DEPTH MTD-781-0742-0637
...
40
Blade Plate Assembly MTD-687-02126
...
41
SCREW MTD-710-04389
...
42
Self-tapping Screw, 1/4-20 MTD-710-0599
...
43
Hex Screw, 5/8-18 MTD-710-1143A
...
44
HEX NUT MTD-712-0417A
...
45
Cotter Pin MTD-714-0104
...
46
Clevis Pin MTD-711-1017
...
47
Bearing Cup MTD-718-04012
...
48
Bearing Block MTD-931-04207
...
49
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
50
Compression Spring MTD-932-04169
...
51
Flat Washer, .260 x.72 MTD-736-0342
...
52
Flat Washer, .635 x 1.24x x.181 MTD-736-04088
...
53
SHOULDER SCREW .375X.280:1/4-14 MTD-738-0706D
...
54
Ball Brg. .625" I.D. x 1.574" O.D. x .47" MTD-941-0524A
...
55
Spacer, .63 x 1.12 x 1.06 MTD-950-04105
...
56
Spacer, .64 x.88 x .50 MTD-750-0547
...
57
Belt MTD-954-04032B
...
58
Sheave MTD-956-0449
...
59A
Edger Blade MTD-781-0080-0637
...
59B
Tri-Star Blade MTD-781-0748-0637
...
60
Belt Guard MTD-781-0427-0637
...
61
Cover Plate MTD-787-01075A-0637

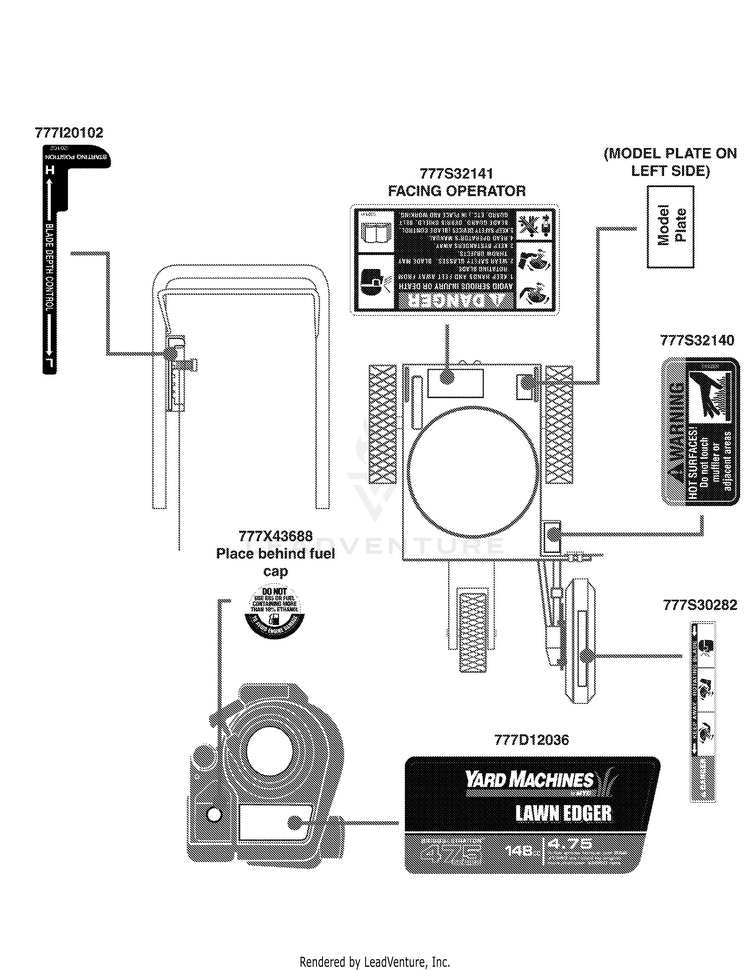

Label Map

...
...
777I20102
LABEL DEPTH CNTRL MTD-777I20102
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777D12036
LABEL-EDGER SHROUD YARD MACHINE MTD-777D12036
...
777S30282
LABEL-BLADE COVER MTD-777S30282
...
777S32140
LABEL-MUFFLER MTD-777S32140
...
777S32141
LABEL-FRAME REAR MTD-777S32141
