Yard Machines 25B-520A700 (2005) Edger

Model: 25B-520A700 (2005)

Back To Assemblies

Save Part Not Listed?
product name

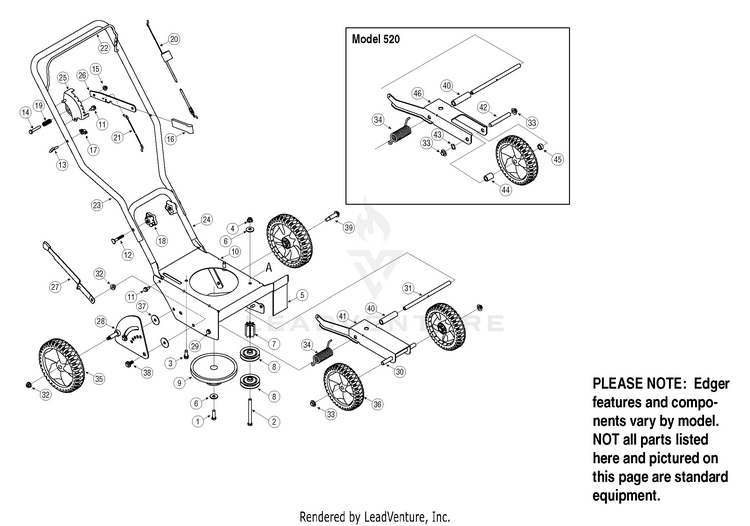

General Assembly

...
...
1
Screw 3/8-24 MTD-710-0191
...
2
Screw 3/8-16 MTD-710-0411
...
3
Screw, 3/8-16 MTD-710-0654A
...
4
Flange Lock Nut, 3/8-16 MTD-712-04065
...
5
Debris Guard MTD-731-05063
...
6
Bell Washer, .396 x 1.140 MTD-736-0452
...
7
MOUNT SPACER MTD-950-04142
...
8
Flat Idler Pulley, 2.5 OD MTD-756-04148
...
9
Combination Flywheel MTD-756-1150A
...
10
EDGER FRAME MTD-787-01229-0638
...
11
Hex Screw, 5/16-18 MTD-710-0607
...
12
Carriage Bolt, 5/16-18 MTD-710-1174
...
13
Rope Guide (Eye Bolt) MTD-710-1205
...
14
Hex Screw, 5/16-18 MTD-710-3180
...
15
Lock Flange Nut, 5/16-18 MTD-712-04063
...
16
Grip MTD-720-0142
...
17
Wing Nut MTD-720-0279
...
18
Star Knob MTD-720-04072A
...
19
SPRING MTD-932-0369
...
20
23" CONTROL CABLE MTD-946-04035
...
21
WHEEL ADJUSTMENT CABLE MTD-946-04036
...
22
BLADE CONTROL BAIL MTD-747-0976B
...
23
UPPER HANDLE MTD-749-04183A
...
24
LOWER HANDLE (when replacing 749-04184 with 749-04234 lower handle, also furnish 711-04440 threaded frame spacer) MTD-749-04234
...
24
Lower Handle (replaces 749-04184) MTD-749-04234
...
24
Threaded Frame Spacer (replaces 749-04184) MTD-711-04440
...
25
Depth Index Bracket MTD-781-0741A
...
26
LEVER DEPTH MTD-781-0742-0637
...
27
Curb Height Adjustment MTD-687-02022
...
28
HEIGHT LEVER ASSEMBLY MTD-687-02125A
...
29
SCREW 5/16-18 x .625 GR5 MTD-710-0759
...
30
AXLE SHAFT MTD-711-04361
...
31
SPACER MTD-711-04392A
...
32
Flange Nut 3/8-16 MTD-712-04065
...
33
Push Cap 1/2" rod MTD-726-0299
...
34
Torsion Spring MTD-732-04045
...
35
Wheel 8x1.8 MTD-734-1987
...
36
Wheel 7x1.8 MTD-734-1988
...
37
Flat Washer, .385 x 1.5 x .075 MTD-736-0234
...
38
Shoulder Screw, 3/8-16 MTD-738-04149
...
39
Shoulder Screw, 3/8-16 MTD-738-0929
...
40
Spacer MTD-750-04129
...
41
Dual Wheel Bracket MTD-787-01239
...
42
Spacer MTD-711-04362
...
43
Wave Washer MTD-736-0232
...
44
SPACER MTD-750-04427
...
45
Spacer, .525 x .775 x .3125 MTD-750-04428
...
46
Wheel Bracket MTD-787-01240
