Yard Machines 25A-532A352 (2000) Edger

Model: 25A-532A352 (2000)

Save Part Not Listed?
product name

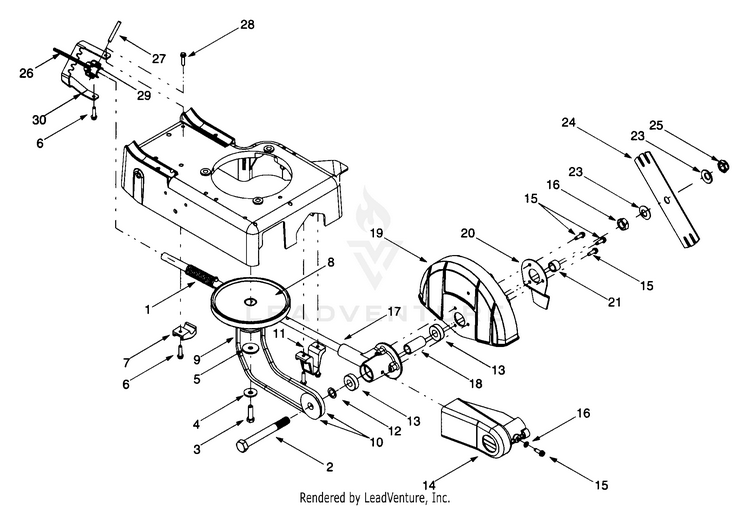

Drive & Blade

...
...
1
COMPRESSION SPRING MTD-732-0862
...
2
BOLT-CURVED CARRIAGE MTD-710-1267
...
3
Hex Cap Screw, 3/8-24 x 1.25 MTD-710-0191
...
4
Bell Washer, .396 x 1.14 x .095 MTD-736-0452
...
5
Flat Washer, .38 x 1.38 x .12 MTD-736-0320
...
6
Hi-Lo Tap Screw, 1/4-15 x 1.0 MTD-710-1241
...
7
REAR HANDLER ROD MTD-731-1930
...
8
Flywheel/Pulley Combination MTD-756-1150A
...
9
V-Belt MTD-954-0343
...
10
3/8" "V"-Pulley MTD-956-0449
...
11
FRONT HANDLER ROD MTD-731-1929
...
12
Flat Washer, .635 x .93 x .06 MTD-736-0116
...
13
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
14
GUARD BELT MTD-731-1939
...
15
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
16
Flat Washer, .281 x .50 x .063 MTD-736-0142
...
17
Spindle Bearing Housing w/Insert MTD-719-0387A
...
18
SPACER .628I MTD-750-1158
...
19
GUARD BLADE MTD-731-1942
...
20
BLADE GUIDE MTD-781-0740
...
21
SPACER .628 MTD-750-1163
...
?22
HEX JAM NUT 5/8-18 MTD-712-0318
...
23
Bell Washer, .64 x 1.25 x .18 MTD-736-0317
...
24
Blade (Edger) MTD-781-0080-0637
...
25
Nylon Lock Jam Nut, 5/8-18 MTD-712-0413
...
26
LEVER ADJUSTER ASSEMBLY MTD-681-0139
...
27
Spirol Pin, 1/4-20 MTD-715-0121
...
28
Spirol Spring Pin, 1/4 MTD-715-0143
...
29
Double Torsion Spring MTD-732-0188A
...
30
BRACKET TILT MTD-781-0749

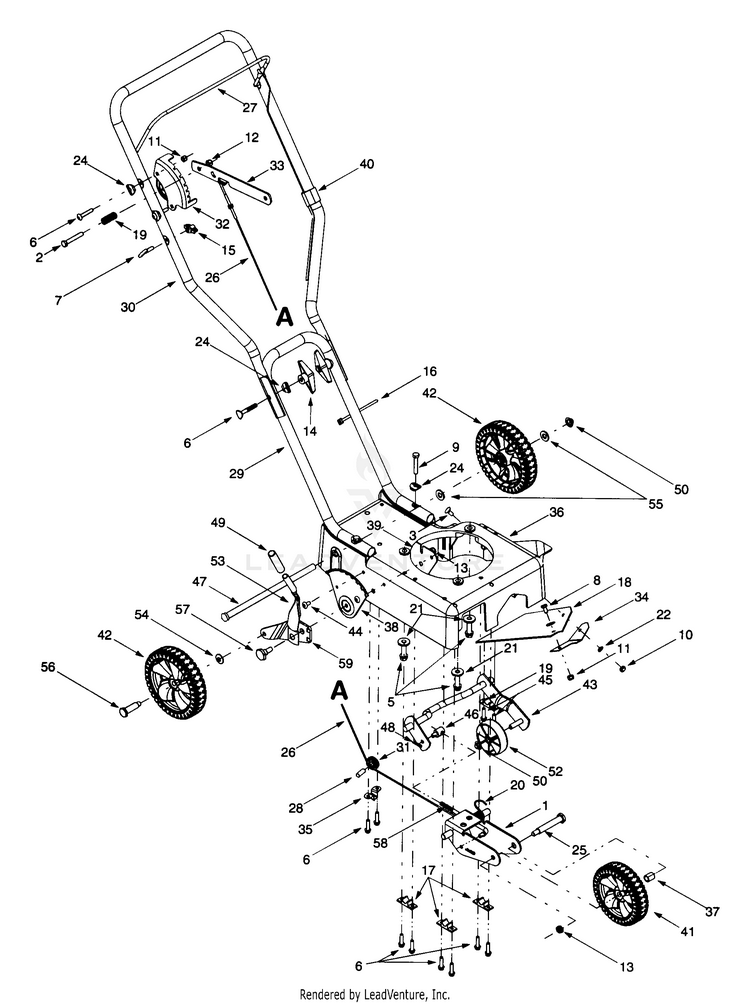

General Assembly

...
...
1
BRACKET ASSEMBLY. FRT MTD-681-0141
...
2
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
3
Carriage Screw, 1/4-20 x .625 MTD-710-0134
...
?4
Machine Screw, 1/4-20 x 1.5 MTD-710-0578
...
5
Sems Screw, 3/8-16 x 1.5 MTD-710-1007
...
6
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
7
Eye Bolt (Rope Guide), 1/4-20 MTD-710-1205
...
8
Hex Cap Screw, 1/4-20 x .5 MTD-710-3013
...
9
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
10
HEX NUT 1/4-20 MTD-912-0287
...
11
Hex Lock Nut, 1/4-20 MTD-712-0324
...
12
Hex Lock Nut, 5/16-18 MTD-712-0429
...
13
Top Lock Jam Nut 3/8-16 MTD-912-3020
...
14
Star Knob MTD-720-04072A
...
15
Wing Knob, 1/4-20 MTD-720-0279
...
16
Cable Tie MTD-725-0157
...
17
BUSHING .515DIA X MTD-731-1931
...
18
DISCHARGE SHIELD MTD-731-1935
...
19
SPRING MTD-932-0369
...
20
TORSION SPRING MTD-732-0867
...
21
Flat Washer, .385 x 1.0 x .135 MTD-736-0258
...
22
L-Wash. 1/4" I.D. MTD-936-0329
...
?23
Flat Washer, .283 x .75 x .030 MTD-736-0342
...
24
Saddle Washer, .320 x .93 MTD-736-0451
...
25
Shoulder Screw MTD-938-0481A
...
26
Depth Index Cable, 44.5" MTD-746-1094
...
27
BLADE CONTROL BAIL MTD-747-0976B
...
28
ROD IDLER MTD-747-0993
...
29
LOWER HANDLE MTD-749-1078
...
30
UPPER HANDLE MTD-749-1225-0637
...
31
Cable Roller MTD-756-0625
...
32
DEPTH INDEX BRACKET MTD-781-0741
...
33
LEVER DEPTH MTD-781-0742-0637
...
34
KEEPER DEFLECTOR MTD-781-0746
...
35
KEEPER CABLE MTD-781-0747
...
36
EDGER BASE ASSEMBLY MTD-631-0079A
...
37
SPACER MTD-750-1179
...
38
INDEX PLATE MTD-781-0783
...
39
INDEX PLATE MTD-781-0781
...
40
CONTROL CABLE 31.75" MTD-746P1098
...
41
Bar Tread Wheel, 7 x 1.8 MTD-734-1988
...
42
Bar Tread Wheel, 8 x 1.8 MTD-734-1987
...
43
CURB WHEEL SUPPORT BRACKET MTD-681-0140
...
44
Truss Screw, 1/4-14 x .625 MTD-710-1017
...
45
Hi-Lo Tap Screw, 1/4-15 x 1.0 MTD-710-1241
...
46
FERRULE 5/16X24 MTD-711-1171
...
47
AXLE CURB MTD-711-1278
...
48
Internal Cotter Pin MTD-714-0104
...
49
Height Adjuster Grip, 2.5" MTD-720-0312
...
50
Push Cap, 3/8 MTD-726-0100
...
?51
Push Cap, 1/2 MTD-726-0299
...
52
ROLLER CURB MTD-731-1932
...
53
SPRING LEVER MTD-732-0982
...
54
Bell Washer, .401 x .870 x .063 MTD-736-0105
...
55
Flat Washer, .510 x 1.0 x .125 MTD-736-0326
...
56
Shoulder Screw, 3/8-16, .49 x 1.4 MTD-738-0102
...
57
Shoulder Screw, .50 x .434 MTD-738-0507B
...
58
ROD 5/16X24 MTD-747-0991
...
59
PIVOT ARM MTD-781-0744
