Yard Machines 25A-532A352 (1999) Edger

Model: 25A-532A352 (1999)

Save Part Not Listed?
product name

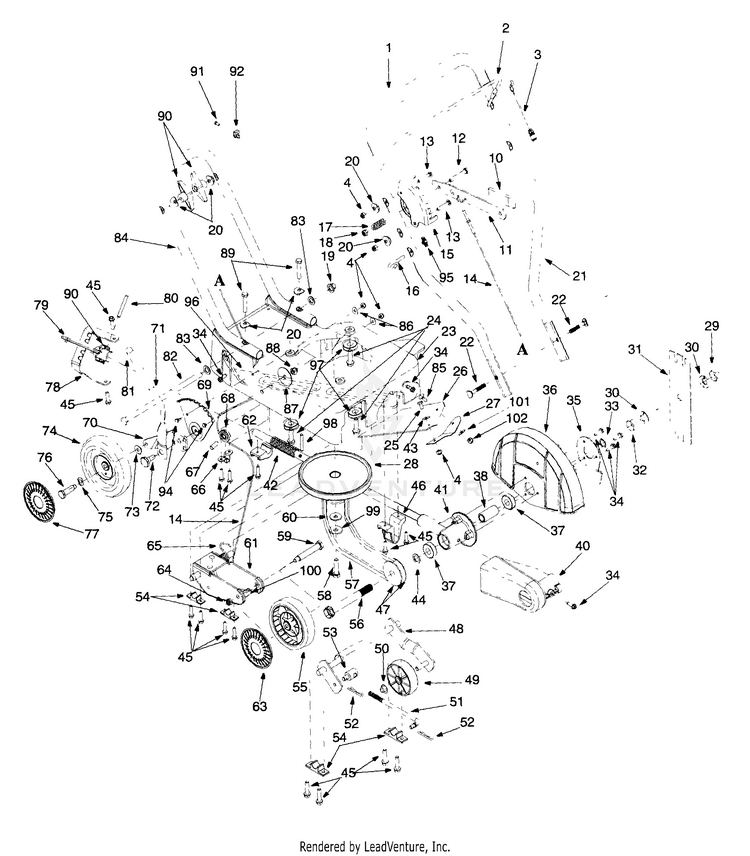

General Assembly

...
...
1
FOAM GRIP 20" If Equipped MTD-720-0297
...
2
BLADE CONTROL BAIL MTD-747-0976B
...
3
CONTROL CABLE MTD-946-0965
...
xx
CABLE CONTROL 44"B&S MTD-746-0966
...
xx
CONTROL CABLE MTD-746-1078
...
xx
CONTROL CABLE MTD-746-0971
...
4
Hex Lock Nut 1/4-20 MTD-712-0324
...
10
Depth Lever Grip If Equipped MTD-720-0142
...
11
LEVER DEPTH MTD-781-0742-0637
...
12
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
13
Thrust Screw 1/4-20 x 1.5 MTD-710-0578
...
14
Depth Cable MTD-746-1094
...
15
DEPTH INDEX BRACKET MTD-781-0741
...
16
Eye Bolt 1/4-20 MTD-710-1205
...
17
SPRING MTD-932-0369
...
18
Hex Lock Nut 5/16-18 MTD-712-0429
...
19
Push Cap MTD-726-0299
...
20
Washer .320 ID x .93 O.D. MTD-736-0451
...
21
UPPER HANDLE MTD-749-1225-0637
...
22
Carriage Bolt 5/16-18 x 2.0 Lg. MTD-710-1174
...
23
EDGER BASE ASSEMBLY MTD-631-0079
...
24
Tapp Screw w/Hex Lock Wash 3/8-16 MTD-710-0502A
...
25
Hex Screw 1/4-20 x .50 Lg. MTD-710-3013
...
26
DISCHARGE SHIELD MTD-731-1935
...
27
KEEPER DEFLECTOR MTD-781-0746
...
28
ENGINE PULLEY MTD-756-1150A
...
29
Hex Jam Nut 5/8-18 MTD-712-0413
...
30
Bell Washer .63 I.D. x 1.25 O.D. x .18 MTD-736-0317
...
31
Blade (Edger) MTD-781-0080-0637
...
xx
EDGER STAR BLADE MTD-781-0713
...
xx
Tri-Star Blade MTD-781-0748
...
32
HEX JAM NUT 5/8-18 MTD-712-0318
...
33
SPACER .628 MTD-750-1163
...
34
Hx Scr. w/Wash.: TT: 1/4-20 x .750 Lg. MTD-710-0642
...
35
BLADE GUIDE MTD-781-0740
...
36
GUARD BLADE MTD-731-1942
...
37
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
38
SPACER .628I MTD-750-1158
...
40
GUARD BELT MTD-731-1939
...
41
Spindle w/Insert MTD-719-0387
...
42
COMPRESSION SPRING MTD-732-0862
...
43
Flat Washer .283 I.D x .75 O.D. x .030 MTD-736-0342
...
44
Flat Washer .635 I.D. x .93 O.D. x .06 MTD-736-0116
...
45
Hex Screw w/Wash 1/4 MTD-710-1241
...
46
FRONT HANDLER ROD MTD-731-1929
...
47
3/8" "V"-Pulley MTD-956-0449
...
48
CURB WHEEL SUPPORT BRACKET If Equipped MTD-681-0140
...
49
ROLLER CURB If Equipped MTD-731-1932
...
50
Push Cap If Equipped MTD-726-0100
...
51
ROD 5/16X24 If Equipped MTD-747-0991
...
52
Cotter Pin .072 x 1.12 If Equipped MTD-714-0104
...
53
FERRULE 5/16X24 If Equipped MTD-711-1171
...
54
BUSHING .515DIA X If Equipped MTD-731-1931
...
55
WHEEL ASSEMBLY 7X1.7 MTD-734-1840
...
56
SCREW 5/8-18 x 5.25 MTD-710-1627
...
57
V-Belt MTD-954-0343
...
58
Hex Screw: 3/8-24 x 1.50 Lg. MTD-710-0191
...
59
Shoulder Screw MTD-938-0481A
...
60
Flat Washer .38 OD x 1.38 OD MTD-736-0320
...
61
BRACKET ASSEMBLY. FRT MTD-681-0141
...
62
REAR HANDLER ROD MTD-731-1930
...
63
Hubcap: Spoke w/Hole Gray If Equipped MTD-731-1887
...
64
Top Lock Jam Nut 3/8-16 MTD-912-3020
...
65
TORSION SPRING MTD-732-0867
...
66
KEEPER CABLE MTD-781-0747
...
67
ROD IDLER MTD-747-0993
...
68
Cable Roller Pulley MTD-756-0625
...
69
INDEX PLATE If Equipped MTD-781-0745
...
70
PIVOT ARM If Equipped MTD-781-0744
...
71
HEIGHT ADJUSTMENT LEVER If Equipped MTD-732-0866
...
72
Shoulder Bolt .500 x .434 Lg. If Equipped MTD-738-0507B
...
73
Bell Wash. .401 ID. x .870 OD. x .063 If Equipped MTD-736-0105
...
74
WHEEL ASSEMBLY SET OF 2 8x1.7 (GRAY) MTD-934-1841
...
75
Wave Washer.510 ID x.750 OD If Equipped MTD-936-0504
...
76
Shoulder Bolt .498 x 1.445: 3/8-16 If Equipped MTD-738-0102
...
77
Hub Cap If Equipped MTD-731-0981C
...
78
BRACKET TILT MTD-781-0749
...
79
LEVER ADJUSTER ASSEMBLY MTD-681-0139
...
80
Pin 1/4 x 2.0" Lg. MTD-715-0121
...
81
Foam Grip If Equipped MTD-720-0230
...
82
AXLE MTD-711-1269
...
xx
AXLE CURB If Equipped MTD-711-1278
...
83
Flat Wash. .531 I.D. x .875 O.D. x .06 MTD-736-3068
...
84
LOWER HANDLE MTD-749-1078
...
85
Carriage Screw 1/4-20 x .62 MTD-710-0134
...
86
Flat Wash. .285 ID x 1.25 OD x .06 If Equipped MTD-736-0211
...
87
Flat Wash. .406 ID x 1.92 OD x .06 If Equipped MTD-736-3040
...
88
Top Lock Jam Nut 3/8-16 If Equipped MTD-912-3020
...
89
Hex Screw 5/16-18 x 1.75 Lg. MTD-710-3180
...
90
Torsion Spring If Equipped MTD-732-0188A
...
90
Star Knob MTD-720-04072A
...
91
Hex Scr. w/Wash.:T: #10-32 x .625 Lg. MTD-710-1237
...
xx
SCREW #10-32 x .38 MTD-710-0871
...
92
Cable Clamp (B&S) MTD-BS-690798
...
xx
CLIP-CONDUIT MTD-TC-27793
...
94
SCREW 1/4-20X.75 If Equipped MTD-710-1637
...
95
Handle Knob MTD-720-0279
...
96
BASE SUPPORT MTD-781-0758A
...
97
Flat Washer MTD-736-0258
...
98
Roll Pin MTD-715-0143
...
99
Bell Washer .396 ID x 1.14 OD MTD-736-0452
...
100
SPACER MTD-750-1179
...
101
L-Wash. 1/4" I.D. MTD-936-0329
...
102
HEX NUT 1/4-20 MTD-912-0287
