Yard Machines 25A-520A700 (2004) Edger

Model: 25A-520A700 (2004)

Back To Assemblies

Save Part Not Listed?
product name

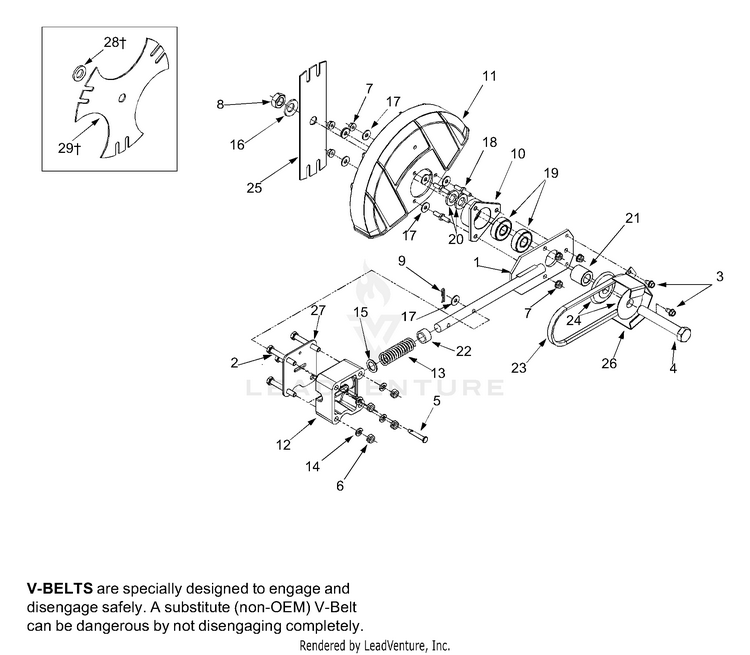

Spindle Assembly

...
...
1
SERVICE KIT MTD-753-05727
...
2
Hex Screw, 5/16-18 MTD-710-0395
...
3
Self-tapping Screw, 1/4-20 MTD-710-0599
...
4
Hex Screw, 5/8-18 MTD-710-1143A
...
5
Clevis Pin MTD-711-1017
...
6
HEX FLANGE NUT MTD-712-3004A
...
7
LOCK NUT 1/4 MTD-912-3027
...
8
Jam Nut, 5/8-18 MTD-712-3056
...
9
Cotter Pin MTD-714-0104
...
10
Bearing Cup MTD-718-04012
...
11
SERVICE KIT MTD-753-05727
...
12
Bearing Block MTD-931-04207
...
13
Compression Spring MTD-932-04169
...
14
Lock Wash. 5/16" I.D. MTD-936-0119
...
15
Flat Washer MTD-736-0187
...
16
Bell Washer,.63 ID x 1.2 OD MTD-736-0317
...
17
Flat Washer,.260 x.72 MTD-736-3090
...
18
PIN MTD-938-04025
...
19
Ball Brg. .625" I.D. x 1.574" O.D. x .47" MTD-941-0524A
...
20
Flat Washer MTD-736-04088
...
21
Spacer, .63 x 1.12 x 1.06 MTD-950-04105
...
22
Spacer,.632 ID x.875 OD MTD-750-0547
...
23
Drive Belt MTD-954-04032B
...
24
3/8" "V"-Pulley MTD-956-0449
...
25
Blade (Edger) MTD-781-0080-0637
...
26
Belt Guard MTD-781-0427-0637
...
27
Cover Plate MTD-787-01075A-0637
...
28
Flat Washer If so equipped MTD-736-04088
...
29
Tri Star Blade If so equipped MTD-781-0748
