Yard Machines 25A-510A022 (2000) Edger

Model: 25A-510A022 (2000)

Back To Assemblies

Save Part Not Listed?
product name

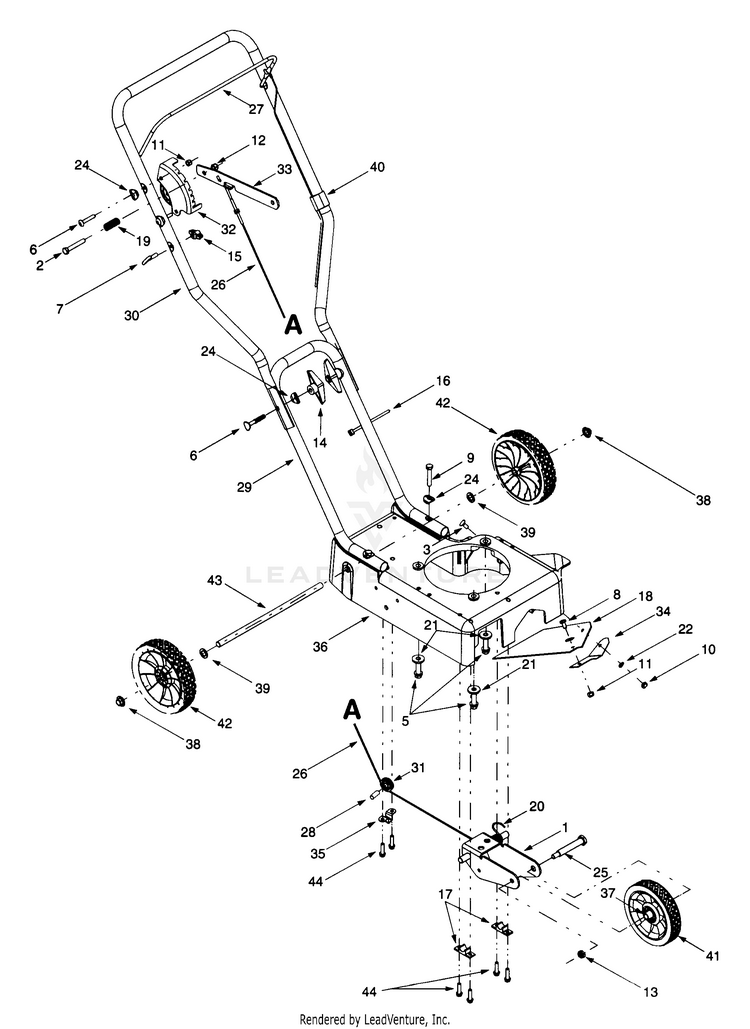

General Assembly

...
...
1
BRACKET ASSEMBLY. FRT MTD-681-0141
...
2
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
3
Carriage Screw, 1/4-20 x.625 MTD-710-0134
...
?4
Machine Screw, 1/4-20 x 1.5 MTD-710-0578
...
5
Sems Screw, 3/8-16 x 1.5 MTD-710-1007
...
6
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
7
Eye Bolt (Rope Guide), 1/4-20 MTD-710-1205
...
8
Hex Cap Screw, 1/4-20 x .5 MTD-710-3013
...
9
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
10
HEX NUT 1/4-20 MTD-912-0287
...
11
Hex Lock Nut, 1/4-20 MTD-712-0324
...
12
Hex Lock Nut, 5/16-18 MTD-712-0429
...
13
Top Lock Jam Nut 3/8-16 MTD-912-3020
...
14
Star Knob MTD-720-04072A
...
15
Wing Knob, 1/4-20 MTD-720-0279
...
16
Cable Tie MTD-725-0157
...
17
BUSHING .515DIA X MTD-731-1931
...
18
DISCHARGE SHIELD MTD-731-1935
...
19
SPRING MTD-932-0369
...
20
TORSION SPRING MTD-732-0867
...
21
Flat Washer, .385 x 1.0 x .135 MTD-736-0258
...
22
L-Wash. 1/4" I.D. MTD-936-0329
...
?23
Flat Washer, .283 x .75 x .030 MTD-736-0342
...
24
Saddle Washer, .320 x .93 MTD-736-0451
...
25
Shoulder Screw MTD-938-0481A
...
26
Depth Index Cable, 44.5" MTD-746-1094
...
27
BLADE CONTROL BAIL MTD-747-0976B
...
28
ROD IDLER MTD-747-0993
...
29
LOWER HANDLE MTD-749-1078
...
30
UPPER HANDLE MTD-749-1225-0637
...
31
Cable Roller MTD-756-0625
...
32
DEPTH INDEX BRACKET MTD-781-0741
...
33
LEVER DEPTH MTD-781-0742-0637
...
34
KEEPER DEFLECTOR MTD-781-0746
...
35
KEEPER CABLE MTD-781-0747
...
36
EDGER BASE ASSEMBLY MTD-631-0079A
...
37
SPACER MTD-750-1178
...
38
Push Cap, 1/2 MTD-726-0299
...
39
Flat Washer, .5 x .875 x .606 MTD-736-3068
...
40
CONTROL CABLE 31.75" MTD-746P1098
...
41
Wheel Ass'y. MTD-734-1779A
...
42
Wheel, 8" MTD-734-04585
...
43
Axle, 12.64 MTD-711-1370
...
44
Hi-Lo Tap Screw, 1/4-15 x 1.0 MTD-710-1241
