Yard Machines 24BF560D062 (2003) Log Splitter

Model: 24BF560D062 (2003)

Save Part Not Listed?
product name

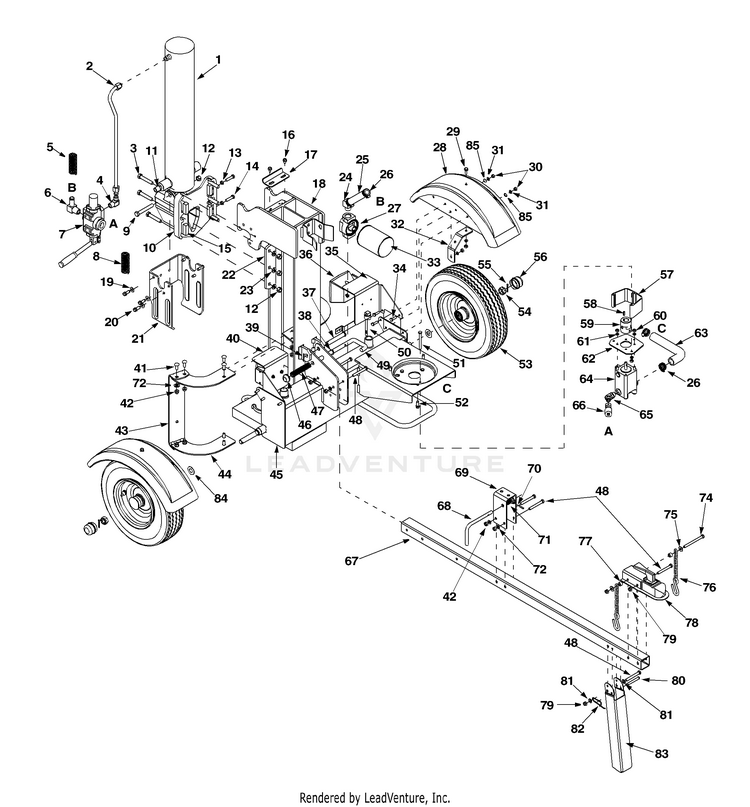

General Assembly

...
...
1
Hydraulic Cylinder replace with 718-0769A MTD-918-0769A
...
1
Seal Kit 4.5" for Fisher Cylinder 718-0769 Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder. MTD-753-0563
...
1
Hydraulic Cylinder replaces 718-0769 MTD-918-0769A
...
1
Kit Seal 4.5" for XINGHUI cylinder 718-0769A See Service Kit 753-05607 MTD-953-05607
...
1
Kit Seal 4.5" for ENERGY cylinder 718-0769A See Service Kit 753-05608 MTD-953-05608
...
2
HYDRAULIC TUBE MTD-727-0634
...
3
Hex Cap Screw 1/2-20 x 2.75 MTD-710-1018
...
4
90 Degree Solid Adapter MTD-737-0192
...
5
Hose Guard, 44" MTD-781-0526A
...
6
Return Elbow MTD-737-0153
...
7
Control Valve MTD-918-0481A
...
8
Hose Guard, 48" MTD-781-0538A
...
9
Hex Cap Screw 1/2-20 x 3.50 MTD-710-0515
...
10
Wedge Assembly MTD-719-0550A
...
11
Nipple Pipe 1/2-14 MTD-737-0238
...
12
Lock Nut 1/2-20 MTD-712-0239
...
13
Hex Jam Nut 3/8-24 MTD-712-0711
...
14
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
15
Adjustable Gib MTD-781-0351
...
16
Hex Washer Screw 5/16-18 x .625 MTD-710-0604A
...
17
SUPPORT BRACKET MTD-781-1054-0637
...
18
BEAM ASSEMBLY (POWDER BLACK) MTD-681-04071A-0637
...
19
Flat Washer .406 ID x .875 OD MTD-736-0300
...
20
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
21
Dislodger MTD-781-04426
...
22
Back Plate MTD-781-0790A-0637
...
23
Lock Washer 1/2 MTD-736-0921
...
24
ADAPTER MTD-737-0312
...
25
Return Hose 3/4" ID x 44" Lg. MTD-727-0443
...
26
Hose Clamp 5/8" MTD-726-0132
...
27
Filter Housing MTD-753-06643
...
28
LOGSPLITTER FENDER MTD-781-04000
...
28
Fender MTD-731-2496A
...
29
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
Fender Mounting Bracket MTD-781-1024A-0637
...
33
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
34
Hex Cap Screw 5/16-18 x 1.0 MTD-710-0376
...
35
LIGHT BRACKET ASSEMBLY (LH)(POWDER BLACK) MTD-681-0164-0637
...
36
Taillight MTD-625-0062
...
36
TAIL LIGHT (RH) MTD-725-2058
...
36
TAIL LIGHT (LH) MTD-725-2059
...
36
WIRE HARNESS MTD-725-2060
...
37
CLEVIS PIN MTD-711-1587
...
38
Flat Washer .635 ID x .93 OD MTD-736-0116
...
39
Cotter Pin MTD-714-0470
...
40
RH Light Bracket MTD-781-1027A-0637
...
41
Carriage Bolt 3/8-16 x 1.0 MTD-710-3097
...
42
Hex Nut 3/8-16 MTD-712-0798
...
43
Log Cradle MTD-753-05424
...
44
LOGSPLITTER TRAY ARM KIT MTD-781-0686
...
45
KIT-SERVICE LOGSPL MTD-753-05565
...
46
Push Cap MTD-726-0214
...
47
Compression Spring MTD-732-0583
...
48
Hex Bolt 3/8-16 x 3" MTD-710-0521
...
49
Lock Rod MTD-781-0690
...
50
Vented Dipstick MTD-737-0348A
...
51
SCREW 5/16-24X3.25 GR5 MTD-710-1338
...
52
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
53
Wheel Assembly MTD-634-0186
...
53
RIM ASSEMBLY (3.75 x 8.0) (GRAY) Not shown MTD-634-0188
...
53
Cone Bearing Not shown MTD-941-04298
...
53
Dust Seal Not shown MTD-921-0168
...
54
Slotted Nut 3/4-16 MTD-712-0359
...
55
Cotter Pin MTD-714-0162
...
56
Hub Cap MTD-734-0873
...
57
COUPLING SHIELD MTD-719-0353
...
58
Square Key 3/16" x .75 MTD-714-0122
...
59
Flex Coupling use with 718-04127, for 3/4" engine crankshaft MTD-917-0891
...
59
Flexible Coupling use with 718-04127, for 7/8" engine crankshaft Used with 735-0652 (Should be stamped with "L075") MTD-918-04145
...
59
SPIDER BUSHING Used with 718-04145 MTD-735-0652
...
59
Coupling, .875 Diameter use with 718-04127, for 7/8" engine crankshaft, Not shown MTD-718-04395
...
59
Coupling, .500 Diameter use with 718-04127, Not shown MTD-718-04392
...
59
Bushing, Spider Coupling (Only used with 718-04392 & 718-04395) use with 718-04127, Not shown MTD-735-04103
...
59
Set Screws use with 718-04127, Not shown MTD-710-1842A
...
59
FLEXIBLE COUPLING 7/16"& 7/8"ID use with 718-0683 MTD-918-0686
...
60
Hex Nut 5/16-24 Thd. MTD-912-3057
...
61
Lock Wash. 5/16" I.D. MTD-936-0119
...
62
Rear Coupling Support Bracket MTD-781-0097-0637
...
63
HOSE MTD-727-0633
...
64
Gear Pump (11 GPM) No longer available, furnish 753-05194 Kit MTD-753-05194
...
64
Pump Kit includes pump & couplings MTD-753-05194
...
64
Gear Pump MTD-918-04127
...
65
45 DEGREE PIPE ELBOW MTD-737-0329
...
66
High Pressure Hydraulic Hose MTD-727-0502
...
67
TONGUE TUBE MTD-781-0788
...
68
Latch Rod MTD-747-1261
...
69
Latch MTD-781-1045
...
70
Spiral Pin MTD-715-0120
...
71
COMPRESSION SPRING MTD-932-3127
...
72
L-Washer 3/8" MTD-736-0169
...
74
Hex Cap Screw 3/8-16 x 4.25 MTD-710-0944
...
75
Flat Washer .385 ID x .870 OD MTD-736-0262
...
76
LOGSPLITTER TOW CHAIN MTD-713-0433A
...
77
Spacer .375 ID x .625 OD MTD-750-0497
...
78
COUPLER-HITCH 1-7 MTD-727-0311
...
79
Hex Lock Nut 3/8-16 MTD-712-0375
...
80
CLEVIS PIN 5/16 x 2.5 MTD-911-0813
...
81
Flat Washer .375 ID x .738 OD MTD-736-0185
...
82
Spring Pin MTD-732-0194
...
83
JACK STAND MTD-781-0789
...
84
Flat Washer .760 ID x .500 OD MTD-736-0351
...
85
Flat Washer MTD-736-0371

Service Kit 753-05607

...
...
1
Piston Seal: 2 piece set (White outer ring w/ black flat under ring) Not Available Separately MTD-NA
...
2
O-ring (Large, Black) Not Available Separately MTD-NA
...
3
Backup Ring (Black) Not Available Separately MTD-NA
...
4
Rod-Guide U-Cup (Dark Blue) Not Available Separately MTD-NA
...
5
Scraper: Rod (Black) Not Available Separately MTD-NA
...
6
O-ring (Small, Black) NOT USED Not Available Separately MTD-NA
...
7
INSTRUCTION SHEET Not Available Separately MTD-NA

Service Kit 753-05608

...
...
1
Zurcon U-Cup RU3 (Blue) Not Available Separately MTD-NA
...
2
Scraper DA17 (Black) Not Available Separately MTD-NA
...
3
Retaining-Ring (Metal) Not Available Separately MTD-NA
...
4
Zurcon Wynseal (Blue) Not Available Separately MTD-NA
...
5
O-Ring (Black) Not Available Separately MTD-NA
...
6
Back-up Ring (White) Not Available Separately MTD-NA
...
7
INSTRUCTION SHEET Not Available Separately MTD-NA
