Yard Machines 24AA510B118 (2000) Log Splitter

Model: 24AA510B118 (2000)

Save Part Not Listed?
product name

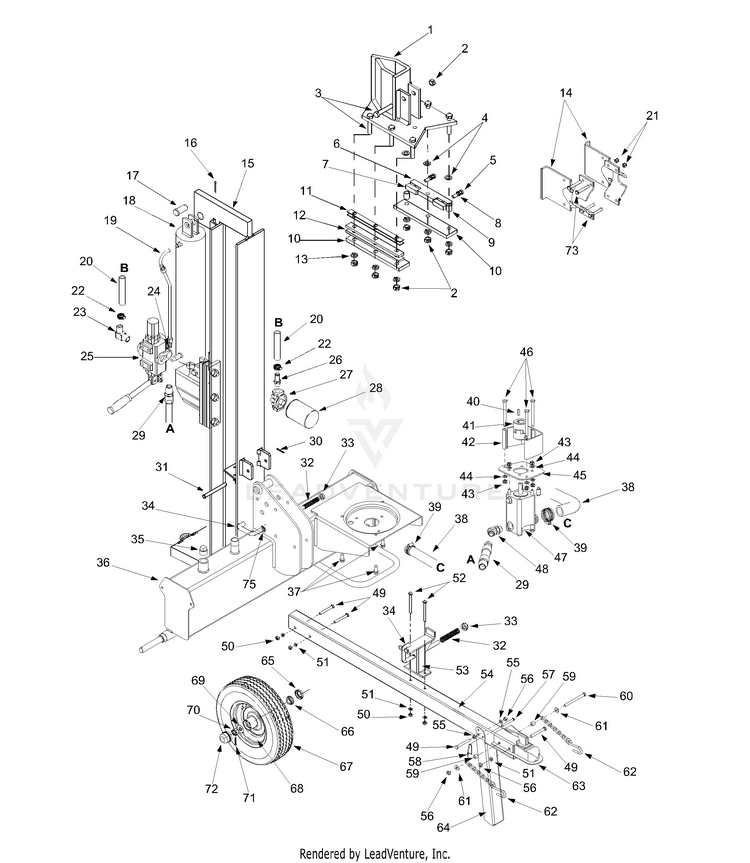

General Assembly 551B

...
...
1
Wedge Assembly MTD-753-04120
...
2
Lock Nut 1/2-20 MTD-712-0239
...
3
Hex Cap Screw 1/2-20 x 2.75 MTD-710-1018
...
4
Flat Washer .531 x .93 x .090 MTD-736-0192
...
5
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
6
Floating Gib Plate MTD-781-0356
...
7
Adjustable Gib MTD-781-0351
...
8
Hex Jam Nut, 3/8-24 MTD-912-3001
...
9
SPACER MTD-750-0743
...
10
Back Bracket MTD-781-0537
...
11
ADJUSTABLE GUB SHIM MTD-781-0352A-0637
...
12
Fixed Gib MTD-781-0350A
...
13
Lock Washer 1/2 MTD-736-0921
...
14
STRIPPER HALF MTD-781-0168A
...
15
BEAM ASSEMBLY MTD-681-0093
...
16
Cotter Pin MTD-714-0211
...
17
CYLINDER MOUNTING PIN MTD-711-1135
...
18
CYLINDER-HY MTD-718-0307
...
18
LOGSPLITTER SEAL KIT Not shown, for Fisher Hydraulic cylinders. Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder. MTD-753-0490
...
18
KIT-SEAL L Not shown, for Best Metals Hydraulic cylinders. BEST cylinders will have "BM" or "BEST" cast into the end cap. MTD-753-0689
...
19
HYDRAULIC TUBE MTD-727-0471
...
20
Return Hose 3/4" I.D. x 44" Lg. MTD-727-0443
...
21
Lock Nut 3/8-16 MTD-712-0130
...
22
Hose Clamp 5/8" MTD-726-0132
...
23
Return Elbow MTD-737-0153
...
24
90° Solid Male Adapter MTD-737-0192
...
25
Control Valve MTD-918-0481A
...
26
HOSE BARB-3/4 IN MTD-737-0235
...
27
FILTER HOUSING MTD-681-0179
...
28
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
29
High Pressure Hydraulic Hose MTD-727-0502
...
30
Cotter Pin 1/8" Dia. MTD-714-0470
...
31
HINGE PIN MTD-738-0805
...
32
Comp. Spring 4" Lg. MTD-732-0583
...
33
Push Cap MTD-726-0214
...
34
Locking Rod MTD-781-0690
...
35
Vented Dipstick MTD-737-0348A
...
36
FRAME WELDMENT (4 GAL.) MTD-681-0092A
...
37
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
38
SUCTION HOSE MTD-735-0256
...
39
Hose Clamp MTD-726-0174
...
40
Sq.-Key 3/16" x .75" MTD-714-0122
...
41
Flex Coupling use with 718-04127, for 3/4" engine crankshaft MTD-917-0891
...
41
Flexible Coupling use with 718-04127, for 7/8" engine crankshaft Used with 735-0652 (Should be stamped with "L075") MTD-918-04145
...
41
SPIDER BUSHING Used with 718-04145 MTD-735-0652
...
41
Coupling, .875 Diameter use with 718-04127, for 7/8" engine crankshaft, Not shown MTD-718-04395
...
41
Coupling, .500 Diameter use with 718-04127, Not shown MTD-718-04392
...
41
Bushing, Spider Coupling (Only used with 718-04392 & 718-04395) use with 718-04127, Not shown MTD-735-04103
...
41
Set Screws use with 718-04127, Not shown MTD-710-1842A
...
41
FLEXIBLE COUPLING 7/16"& 7/8"ID use with 718-0683 MTD-918-0686
...
42
COUPLING SHIELD MTD-719-0353
...
43
Hex Nut 5/16-24 Thd. MTD-912-3057
...
44
Lock Wash. 5/16" I.D. MTD-936-0119
...
45
Rear Coupling Support Bracket MTD-781-0097-0637
...
46
SCREW 5/16-24X3.25 GR5 MTD-710-1338
...
47
Gear Pump (11 GPM) No longer available, furnish 753-05194 Kit MTD-753-05194
...
47
Pump Kit includes pump & couplings MTD-753-05194
...
47
Gear Pump MTD-918-04127
...
48
45 DEGREE PIPE ELBOW MTD-737-0329
...
49
Hex Bolt 3/8-16 x 3" Lg. MTD-710-0521
...
50
Hex Nut 3/8-16 Thd. MTD-712-0798
...
51
L-Wash. 3/8" I.D. MTD-736-0169
...
52
Hex Bolt 3/8-16 x 4" Lg. MTD-710-0411
...
53
BEAM SUPPORT ASSEMBLY (POWDER BLACK) MTD-681-0110-0637
...
54
Tube MTD-781-0680B
...
55
Flat Washer 3/8 MTD-736-0185
...
56
Hex L-Nut 3/8-16 Thd. MTD-712-0375
...
57
CLEVIS PIN 5/16 x 2.5 MTD-911-0813
...
58
Spring Pin MTD-732-0194
...
59
Spacer 3/8" I.D. x .625" O.D. MTD-750-0497
...
60
Hex Bolt 3/8-16 x 4" Lg. (Grd 5) MTD-710-0944
...
61
Fl-Wash. 3/8" I.D. x .87" O.D. MTD-736-0262
...
62
LOGSPLITTER TOW CHAIN MTD-713-0433A
...
63
COUPLER-HITCH 1-7 MTD-727-0311
...
64
JACK STAND MTD-781-0162
...
65
Dust Seal MTD-921-0168
...
66
Cone Bearing MTD-941-04298
...
67
Wheel Assembly MTD-634-0186
...
68
RIM ASSEMBLY (3.75 x 8.0) (GRAY) MTD-634-0188
...
69
Fl-Wash. .76" I.D. x 1.5" O.D. MTD-736-0351
...
70
Slotted Nut 3/4-16 Thd. MTD-712-0359
...
71
Cotter Pin 5/32" Dia. x 1-1/4" Lg. MTD-714-0162
...
72
Hub Cap MTD-734-0873
...
73
Hex Cap Screw 3/8-16 x 2.0 MTD-710-3144
...
75
Flat Washer .635 ID x .93 OD MTD-736-0116
