Yard Machines 24A-655A129 (2003) Blower

Model: 24A-655A129 (2003)

Back To Assemblies

Save Part Not Listed?
product name

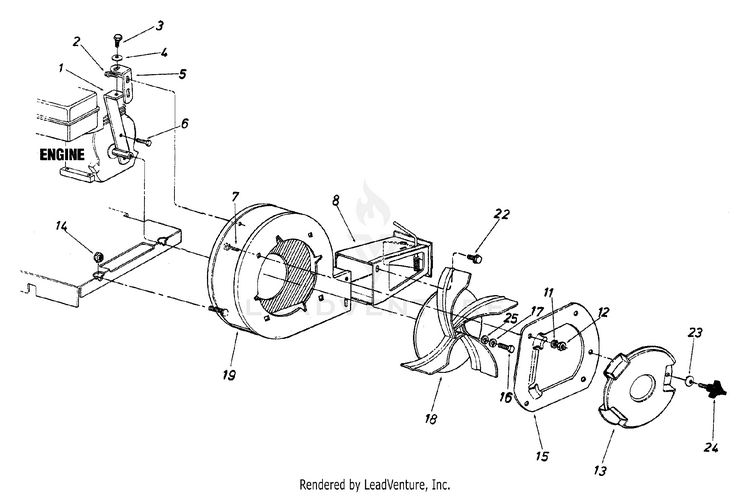

Blower Housing Assembly

...
...
1
HOUSING-ENG BRACE MTD-14539-0637
...
2
Hex Self Tapping Screw 5/16 x .5 MTD-710-0607
...
3
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
4
Lock Wash. 5/16" I.D. MTD-936-0119
...
5
BRACKET-RIGHT ANGLE MTD-14541
...
6
Hex Locking Bolt 5/16-24 x .75 MTD-710-0627
...
7
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
8
DISCHARGE ASSEMBLY MTD-14479
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
BLOWER GUARD MTD-731-0608
...
14
Hex Shoulder Nut .50 I.D. MTD-911-0758
...
15
PLATE ASSEMBLY-NOZZLE MTD-14563A
...
16
SCREW 3/8-24X2.25 GR8 MTD-710-1254
...
17
Lock Washer 3/8 MTD-736-0217
...
18
BLOWER IMPELLER ASSEMBLY MTD-681-0075A
...
19
BLOWER HOUSING ASSEMBLY MTD-14496B
...
22
HEX SCREW SEMS 5/16-18 x .62 MTD-710-0259
...
23
Bell Washer .34 ID x .87 OD MTD-736-0242
...
24
Three Arm Screw 5/16-18 x .75 MTD-720-0170
...
25
Flat Washer MTD-736-0247
