Yard Machines 21B-035-352 (2000) Tiller

Model: 21B-035-352 (2000)

Save Part Not Listed?
product name

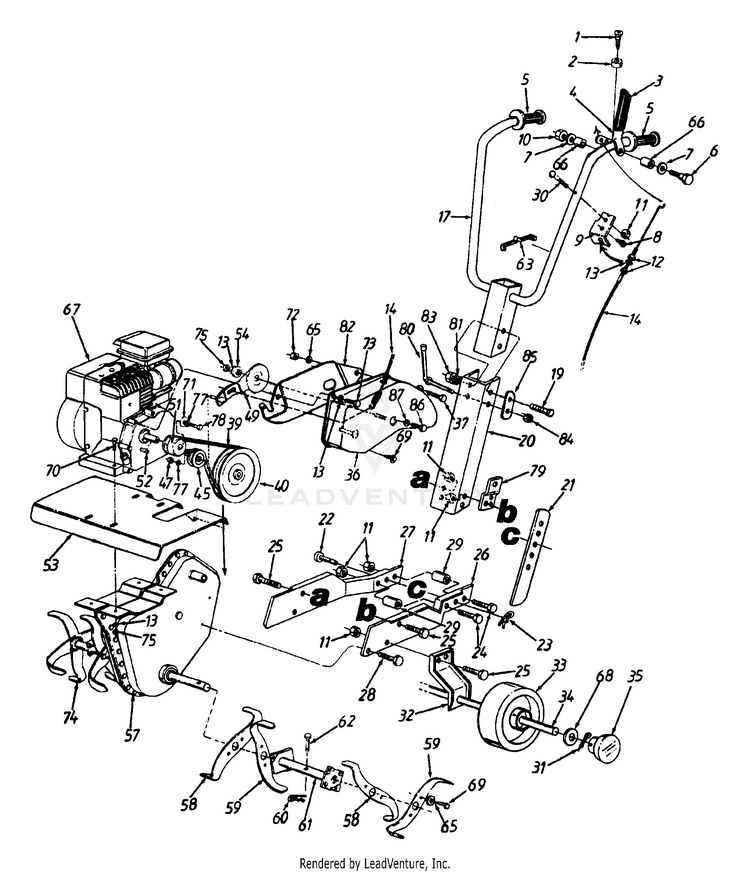

General Assembly

...
...
1
Tap Scr. #10 x 1/2" Lg. MTD-710-0779A
...
2
BUMPER-RECESS MTD-720-0263
...
3
GRIP MTD-731-0473
...
4
Clutch Lever Ass'y. MTD-686-0002-0637
...
5
LIFT HANDLE GRIP MTD-720-0233
...
6
Hex Bolt 1/4-20 x 2" Lg. Purchase Locally MTD-710-0501
...
7
Fl-Wash. 1/4" I.D. MTD-736-3090
...
8
SCREW-SLOT PL-250-20X0.50 MTD-710-1201
...
9
BRACKET-CL MTD-15093C
...
10
Lock Nut 1/4-20 Thd. MTD-712-0324
...
11
Lock Nut 5/16-18 Thd. MTD-712-0429
...
12
HEX JAM NUT 5/16-24 MTD-712-0256
...
13
Lock Wash. 5/16" I.D. Purchase Locally MTD-936-0119
...
14
Clutch Control Cable MTD-946-0926
...
17
UPPER HANDLE ASSEMBLY MTD-649-0018
...
19
Hex Bolt 3/8-16 x 2.75 MTD-710-3022
...
20
BRACKET-HAN MTD-786-0146
...
21
483DEPTH BAR MTD-04764
...
22
Clevis Pin MTD-711-0653
...
23
Hairpin Cotter MTD-714-0145
...
24
Hex Bolt 5/16-18 x 1" Lg. Purchase Locally MTD-710-0376
...
25
SCREW 5/16-18 x .625 GR5 Purchase Locally MTD-710-0759
...
26
FRAME HALF MTD-786-0011
...
27
FRAME HALF-RH MTD-786-0010
...
28
Hex Tap. Scr. 5/16-18 x 1/2" Lg MTD-710-0607
...
29
SPACER MTD-750-0808
...
30
Hex Bolt 5/16-18 x 1-1/4" Lg. MTD-710-1090
...
31
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
32
WHEEL BRACKET MTD-786-0012
...
33
WHEEL-6" MTD-634-0013
...
34
AXLE-WHEEL (MINI T MTD-738-0855
...
35
HUB CAP MTD-720-0258
...
36
BELT COVER MTD-786-0151A
...
37
SCREW 1/4-20 x .620 GR5 Purchase Locally MTD-710-0751
...
39
BELT-V 3/8 X 29 NLAUD MTD-954-0216
...
40
PULLEY-1/2X5.5 V-T MTD-756-0996
...
45
Flat Idler Pulley MTD-756-0199
...
47
Hex Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
49
IDLER ARM MTD-784-0016
...
51
PULLEY MTD-756-0286
...
52
Square Key 3/16" x .75" Lg. MTD-714-0122
...
53
TINE SHIELD 18" MTD-786-0148A
...
54
Bushing, Shoulder, .320 ID x .135 MTD-936-0289
...
57
CASE CHAIN MTD-686-0093A
...
58
TINE (RH) MTD-04922
...
59
TINE (LH) MTD-04923-0637
...
60
Hairpin Cotter MTD-714-0149B
...
61
ADAPTER ASSEMBLY-TINE MTD-04918-0637
...
62
CLEVIS PIN .312 x 1.50 MTD-711-0702
...
63
PLASTIC TIE MTD-726-0306
...
65
L-Wash. 1/4" I.D. Purchase Locally MTD-936-0329
...
66
SPLIT SPACER MTD-750-0846
...
67
Engine MTD-NA
...
68
Fl-Wash. .406 I.D. MTD-736-3050
...
69
Tap Scr. 1/4-20 x 1/2" Lg. MTD-710-0599
...
70
Hex Bolt 3/8-16 MTD-710-0502A
...
71
Fl-Wash .3/8" I.D. x 1" O.D. MTD-736-0258
...
72
HEX NUT 1/4-20 Purchase Locally MTD-912-0287
...
73
HEX SCREW 5/16-24 x .50 MTD-710-0107
...
74
TINE ASS'Y. COMP. MTD-04921
...
75
HEX NUT 5/16-18 Purchase Locally MTD-712-3010
...
77
L-Wash. 3/8" I.D. Purchase Locally MTD-736-0169
...
78
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
79
BRACKET MTD-786-0046
...
80
Handle Adj. Crank MTD-784-0190
...
81
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
82
BELT COVER - REAR MTD-786-0153
...
83
Flange Lock Nut 3/8-16 MTD-912-0431
...
84
Hex Flange L-Nut 3/8-24 Thd. MTD-712-0379
...
85
Retainer Bracket MTD-784-0191
...
86
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
87
Fl-Wash. .330 I.D. MTD-736-0264

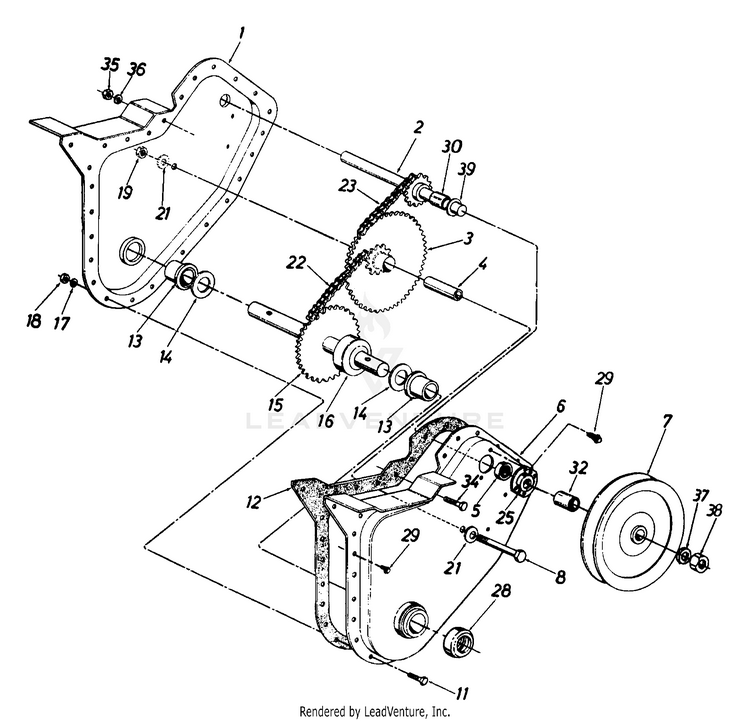

Transmission Assembly

...
...
1
CHAIN CASE ASSEMBLY (RH)(POWDER BLACK) MTD-686-0085-0637
...
2
INPUT SHAFT ASSEMBLY MTD-611-0057
...
3
SPROCKET & HUB ASSEMBLY MTD-04757A
...
4
SLEEVE .623 OD x .380 ID x 1.5 LG MTD-750-0351
...
5
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
6
CHAIN CASE ASSEMBLY (LH) MTD-686-0087
...
7
PULLEY-1/2X5.5 V-T MTD-756-0996
...
8
Hex Bolt 3/8-24 x 2.5" Purchase Locally MTD-710-0369
...
11
HEX SCREW 1/4-28 x .62 Purchase Locally MTD-910-0195
...
12
GASKET MTD-921-0156A
...
13
Flange Brg. .879" I.D. MTD-741-0227
...
14
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
15
SHAFT ASSEMBLY-TINE MTD-04920
...
16
SPACER MTD-750-0354A
...
17
L-Wash. 1/4" I.D. Purchase Locally MTD-936-0329
...
18
Hex Nut 1/4-28 Thd. Purchase Locally MTD-712-0138
...
19
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
21
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
22
#420 CHAIN 1/2 PITCH x 38 LIN MTD-713-0215
...
xx
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
23
#35 CHAIN 3/8 PITCH x 50 LINK MTD-713-0216
...
xx
#35 MASTER LINK 3/8 PITCH TYPE II MTD-913-0139
...
25
BEARING HOUSING MTD-05034A
...
28
SEAL/SHAFT MTD-921-0392
...
29
Hex Wash. Hd. Self-Tap Scr. 1/4- MTD-710-0599
...
30
SPACER MTD-750-0471
...
32
SPACER .647 x .77" MTD-750-0999
...
34
SCREW 5/16-18 x .75 GR5 Purchase Locally MTD-710-3008
...
35
HEX NUT 5/16-18 Purchase Locally MTD-712-3010
...
36
Lock Wash. 5/16" I.D. Purchase Locally MTD-936-0119
...
37
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
38
Hex Flange L-Nut 3/8-24 Thd. MTD-712-0379
...
39
FLAT WASHER .632 ID x .935 ODX.048 MTD-736-0302
...
xx
CASE CHAIN MTD-686-0093A
