Yard Machines 21AA40M8700 (2015) Tiller

Model: 21AA40M8700 (2015)

Back To Assemblies

Save Part Not Listed?
product name

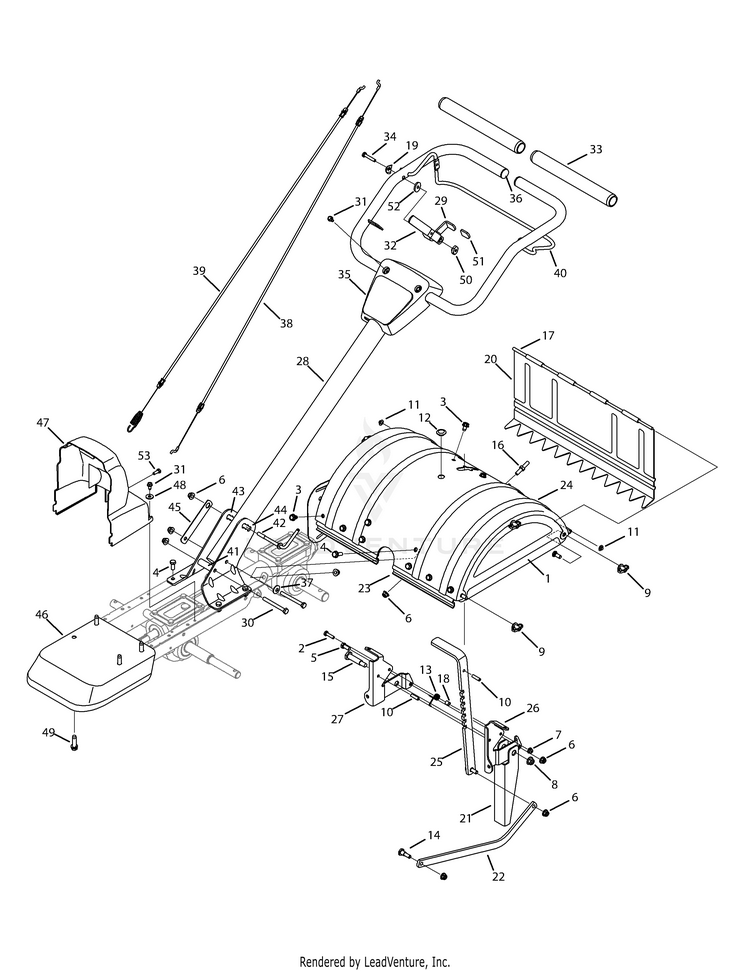

Handle & Tine Shield

...
...
1
End Cover Assembly MTD-686-0044B-0638
...
2
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
3
Hex Head Screw, 5/16-18 x 625 MTD-710-0604A
...
4
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
5
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
6
Hex Flange Top L-Nut, 5/16-18 MTD-712-04063
...
7
Nylon Hex Lock Nut, 1/4-20 MTD-712-04064
...
8
Flange Lock Nut, 3/8-16 MTD-712-04065
...
9
Wing Nut, 5/16-18 MTD-712-0421
...
10
Spirol Pin MTD-715-0108
...
11
Cap Nut, 1/4 Rod MTD-926-0106
...
12
Hole Plug MTD-731-05512
...
13
Torsion Spring MTD-732-04320
...
14
Shoulder Screw, 405 x 435 5/16-18 MTD-738-04320
...
15
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
16
Stop Screw MTD-938-0849
...
17
Tiller Flap Rod MTD-747-0432
...
18
Spacer MTD-750-05349
...
19
Saddle Wash. .32" I.D. MTD-736-0451
...
20
Rear Tine Shield MTD-786-0113A-0638
...
21
Reverse Stop Arm MTD-786-04092-0638
...
22
Drag Bar MTD-786-04104-0638
...
23
Tine Shield Mounting Bracket MTD-786-04352A-0638
...
24
Tine Shield MTD-786-04355A-0638
...
25
Adjustable Depth Bar MTD-786-04356A-0638
...
26
Tail Bracket, LH MTD-786-04363-0638
...
27
Tail Bracket, RH MTD-786-04364-0638
...
28
UPPER HANDLE ASSEMBLY (MTD RED) MTD-649-04098B-0638
...
29
REVERSE HANDLE ASSEMBLY MTD-686-04135
...
30
Hex Head Screw, 5/16-18 x 300 MTD-710-0189
...
31
Self-Tapping Screw, 1/4-20 x 1/2 MTD-710-0599
...
32
BRAKE HANDLE GRIP MTD-731-04735
...
33
Foam Handle Grip MTD-720-0278A
...
34
Hex Head Screw, 1/4-20 x 162 MTD-710-3288
...
35
HANDLE COVER W/O SWITCH HOLE MTD-731-06253B
...
36
END PLUG MTD-735-04105A
...
37
Bell Washer, 340 x 872 x 060 MTD-736-0242
...
38
Reverse Cable MTD-946-04504
...
39
Forward Cable MTD-946-04506
...
40
Clutch Bail MTD-747-04789A-0637
...
41
Spacer, 322 x 625 x 200 MTD-750-0885A
...
42
Handle Crank MTD-786-0340B
...
43
Handle Bracket, RH MTD-786-04344-0638
...
44
Handle Bracket, LH MTD-786-04345-0638
...
45
Retainer Nut Bracket MTD-786-04358
...
46
Front Bumper MTD-786-04360-0638
...
47
Belt Cover MTD-631-05252
...
48
Flat Washer, 28 x 74 x 063 MTD-736-0173
...
49
SEMS Screw, 3/8-16 MTD-710-0502A
...
50
Spacer, 375 x 165 MTD-738-0440
...
51
Reverse Handle Grip MTD-920-04173
...
52
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
53
Self Tapping Screw, 1/4-14 x 625 MTD-710-0896
