Yard Machines 21A-340-352 (2000) Tiller

Model: 21A-340-352 (2000)

Save Part Not Listed?
product name

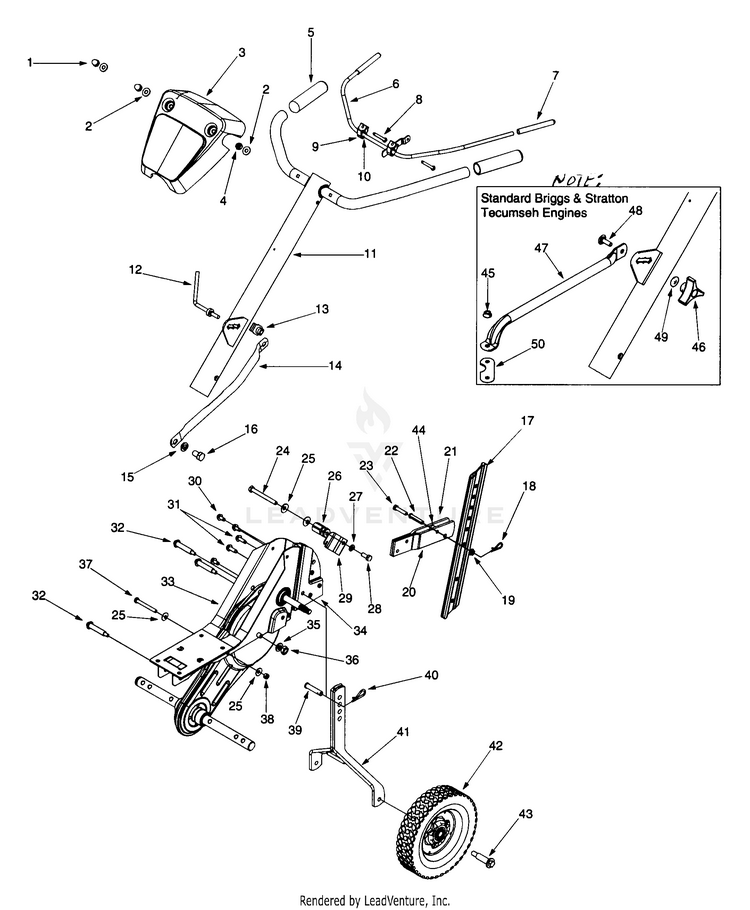

General Assembly

...
...
1
Acorn Lock Nut 1/4-20 MTD-712-0442
...
2
Flat Washer .271" I.D. x .630" MTD-736-3020
...
3
HANDLE COVER MTD-731-1599
...
4
HEX NUT 1/4-20 MTD-912-0287
...
5
Grip-Handle MTD-720-0274
...
6
CLUTCH HANDLE ASSEMBLY MTD-686-0083-0637
...
7
Grip-Clutch MTD-720-0269
...
8
Hex Bolt 1/4-20 x 2.25" Lg. Gr.5 MTD-710-0641
...
9
HANDLE CLUTCH HOLDER MTD-931-1645B
...
10
Flat Washer .385" I.D. x .62" O.D. MTD-736-0140
...
11
HANDLE ASSEMBLY Briggs & Stratton Intek Engine MTD-649-0039
...
xx
HANDLE ASSEMBLY Standard Briggs & Stratton and Tecumseh Engine MTD-649-0022A
...
12
HANDLE CRANK Briggs & Stratton Intek Engine MTD-647-0042
...
13
U Nut 5/16-18 Briggs & Stratton Intek Engine MTD-726-0211
...
14
BRACE HANDLE COLOR Briggs & Stratton Intek Engine MTD-749-1101
...
15
Lock Washer 1/2 Briggs & Stratton Intek Engine MTD-736-0921
...
16
Hex Bolt 1/2-20 Gr. Briggs & Stratton Intek Engine MTD-710-3194
...
17
Depth Bar MTD-786-0005-0637
...
18
Cotter Pin MTD-714-0149B
...
19
HEX FLANGE NUT MTD-712-3004A
...
20
Tail Piece Brkt. (L.H.) MTD-786-0003-0637
...
21
Tail Piece Brkt. (R.H.) MTD-786-0004-0637
...
22
Clevis Pin MTD-711-0415
...
23
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
24
Hex Bolt 5/16-18 x 3" Lg. MTD-710-0189
...
25
Wash. Bell. .340" I.D. x .872" O.D. MTD-736-0242
...
26
SPECIAL HEX NUT MTD-711-1036A
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
29
Cable Guide Brkt. MTD-786-0129-0637
...
30
Screw, 5/16-18 x .625 MTD-710-0604A
...
31
Hex Wash. Hd. TT-Tap Scr. MTD-710-0602
...
32
Shoulder Bolt, 5/16-18 MTD-738-0934A
...
33
Frame (R.H.) MTD-786-0138
...
34
Frame LH MTD-786-0139A
...
35
Lock Washer 7/16 MTD-736-0171
...
36
Hex Jam Nut 7/16-20 MTD-912-0240
...
37
Hex Bolt 5/16-18 x 2.75" Lg. MTD-710-0176
...
38
Hex Nyloc Nut 5/16-18 Thd. MTD-712-0429
...
39
Clevis Pin MTD-711-0415
...
40
Cotter Pin MTD-714-0149B
...
41
Wheel Hanger Brkt. Ass'y. MTD-686-0081A-0637
...
42
Wheels with Ball Brgs. MTD-734-1268
...
43
Shoulder Screw .496 x 1.445 MTD-738-0929
...
44
Spacer MTD-750-0890
...
45
HEX FLANGE NUT Standard Briggs & Stratton and Tecumseh Engine MTD-712-3004A
...
46
Hand Knob Standard Briggs & Stratton and Tecumseh Engine MTD-720-0195
...
47
ENGINE TUBING BRACE Standard Briggs & Stratton and Tecumseh Engine MTD-749-0915A
...
xx
HANDLE BRACE MTD-749-1082
...
48
Carr. Bolt 5/16-18 x 1 Standard Briggs & Stratton and Tecumseh Engine MTD-710-1236
...
49
Bell. Wash. .34" I.D. Standard Briggs & Stratton and Tecumseh Engine MTD-736-0242
...
50
ENGINE BRACKET Standard Briggs & Stratton and Tecumseh Engine MTD-786-0159
