Yard Machines 21A-332B062 (2002) Tiller

Model: 21A-332B062 (2002)

Back To Assemblies

Save Part Not Listed?
product name

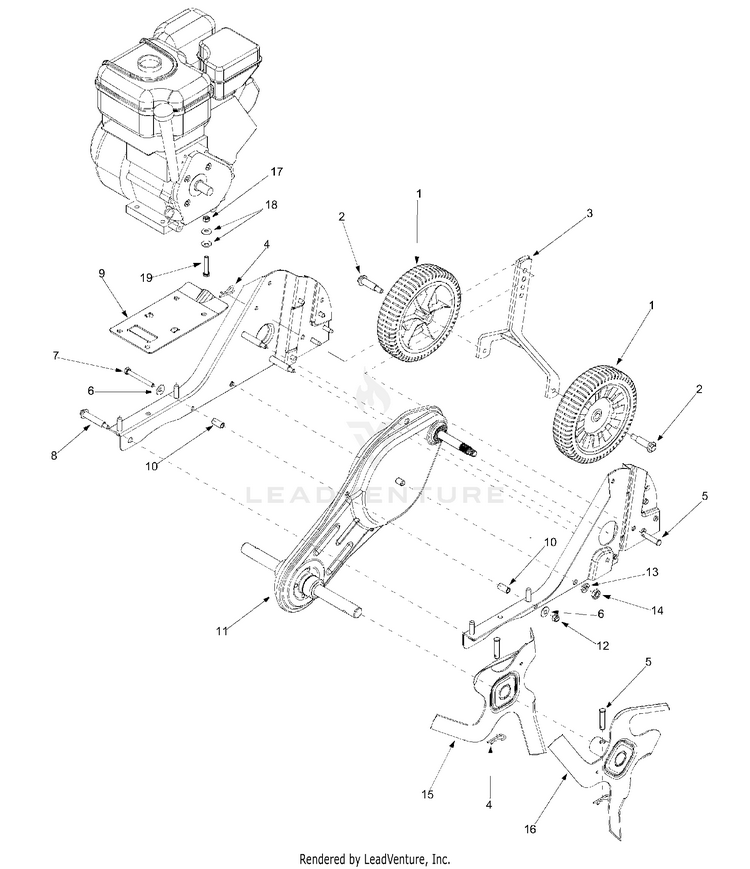

Chain Case

...
...
1
Wheel, 8 x 1.7 MTD-734-1855
...
2
Shoulder Screw MTD-738-0929
...
3
Wheel Hanger Brkt. Ass'y. MTD-686-0081A-0637
...
4
Cotter Pin MTD-714-0149B
...
5
Clevis Pin MTD-711-0415
...
6
Bell Washer .340 ID x .872 OD MTD-736-0242
...
7
Hex Cap Screw 5/16-18 x 3.0 MTD-710-0189
...
8
Shoulder Bolt, 5/16-18 MTD-738-0934A
...
9
Engine Mounting Plate MTD-786-0145A
...
10
Spacer .47 OD x .96Lg MTD-750-0470
...
11
CHAIN CASE MTD-986-0091C
...
12
Hex Lock Nut 5/16-18 MTD-712-0429
...
13
Lock Washer 7/16 MTD-736-0171
...
14
Hex Jam Nut 7/16-20 MTD-912-0240
...
15
TINE ASSEMBLY (INNER) (RH) MTD-642-0002-0637
...
xx
TINE ASSEMBLY (INNER) (LH) MTD-642-0003-0637
...
16
Outer Tine Assembly RH MTD-642-0004-0637
...
xx
Outer Tine Assembly LH MTD-642-0005-0637
...
17
HEX NUT 5/16-18 MTD-712-3010
...
18
Bell Washer .340 ID x .872 OD MTD-736-0242
...
19
Hex Cap Screw 5/16-18 x 1.75 MTD-710-3180
